Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Truck Direct Drive Refrigeration Unit Installation HT680
Specifications
Brand Name :
Yinhuasheng/OEM
Place of Origin :
China
Certification :
CE
MOQ :
1SET
Price :
Negotiable
Packaging Details :
Negotiable
Delivery Time :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Model Number :
HT-680
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
6100W
Cooling Capacity(-18℃) :
3130W
Application Box Volume :
≤27 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Guangyu
Compressor Mode :
GY17
Compressor Displacement :
163 CC
Condenser :
Parallel Flow Condenser
Evaporator :
Inner grooved copper tube&aluminum Fin
Description

HT680 220V/50Hz Power Supply Direct Drive Refrigeration Unit with Overload Protection

Product Description:

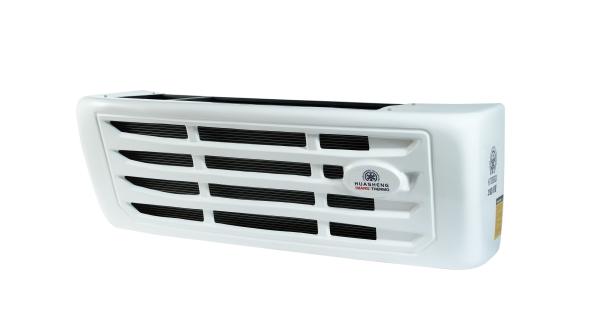

The HT680 Direct Drive Refrigeration Unit is a highly efficient and reliable refrigeration system designed for use in trucks and vans. It features a direct drive motor and external rotor, providing a low noise level of ≤55dB(A) and a power supply of 220V/50Hz. The unit is equipped with various protection systems, such as high/low pressure, overload and overheat, ensuring a safe operation. With its direct drive design, the Direct Drive Refrigeration Unit is ideal for a variety of applications, including cooling and freezing of food items in vans and trucks.

Unit Model HT-680
Applicable Temperature(℃) -25℃ ~ +25℃
Box Volume (m³) ≤27m³

Cooling Capacity

(W)

 0℃ 6100 W
-18℃ 3130 W

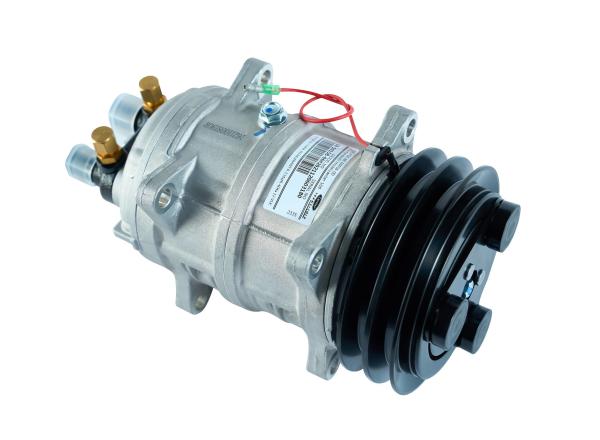

Compressor Model GY21
CC 209 CC
Lubricating Oil PAG 68

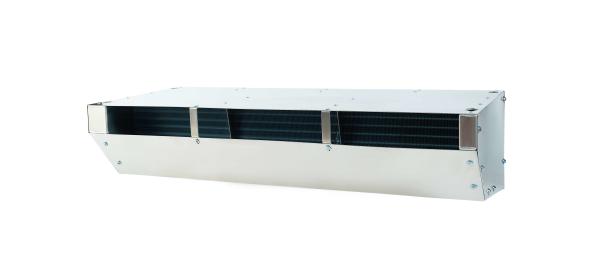

Evaporator Material Inner grooved copper tube
Number of Fans 3 PCS

Condenser

 Material Parallel flow condenser
Number of Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 2.7KG

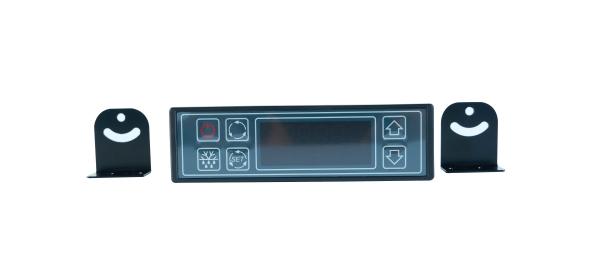

Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator 31 KG
Condenser 49 KG
Evaporator 1240*610*270
Condenser 1480*500*510
Drive Model Non-independent engine driven

Applications:

The Direct Drive Refrigeration Unit from YINHUASHENG is designed for refrigerated truck units and other industrial refrigeration systems. It comes with CE certification, 220V/50Hz power supply and low noise level ≤55dB(A). Additionally, it offers high/low pressure protection, overload protection and overheat protection. It is backed by a 1 Year Warranty and has 8000 Piece/Pieces per Year Supply Ability.

FAQ:

Direct Drive Refrigeration Unit questions & answers
  • Q: What is the brand name of the Direct Drive Refrigeration Unit?
    A: The brand name of the Direct Drive Refrigeration Unit is YINHUASHENG.
  • Q: Where is the Direct Drive Refrigeration Unit manufactured?
    A: The Direct Drive Refrigeration Unit is manufactured in CHINA.
  • Q: Does the Direct Drive Refrigeration Unit have a CE certification?
    A: Yes, the Direct Drive Refrigeration Unit has a CE certification.
  • Q: What is the minimum order quantity for the Direct Drive Refrigeration Unit?
    A: The minimum order quantity for the Direct Drive Refrigeration Unit is 1 piece.
  • Q: Is the price of the Direct Drive Refrigeration Unit negotiable?
    A: Yes, the price of the Direct Drive Refrigeration Unit is negotiable.
