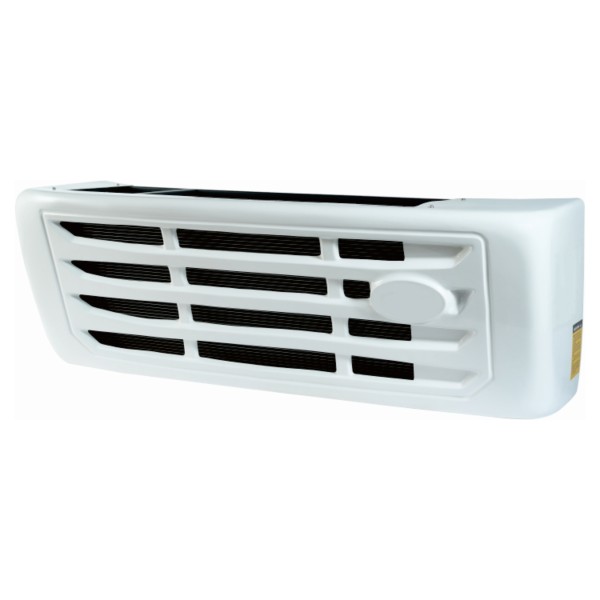

Direct Engine Driven Refrigeration Unit for 27m³ Refrigerated Truck with R404A Refrigerant
Direct Engine Driven Refrigeration Unit for 27m³ Refrigerated Truck with R404A Refrigerant
Direct Engine Driven Refrigeration Unit for 27m³ Refrigerated Truck with R404A Refrigerant
Direct Engine Driven Refrigeration Unit for 27m³ Refrigerated Truck with R404A Refrigerant
Specifications
Box Volume :
≤27m³
Delivery Time :
20
Certification :
CE/ISO
Payment Terms :
L/C,T/T
Refrigerant Charge :
2.7 Kg
Brand Name :
YINHUASHENG
Supply Ability :
1000
Packaging Details :
WOODEN CASE/CARTOON
Refrigerant Type :
R404a
MOQ :
1PCS
Compressor Model :
GY17
Place of Origin :
CHINA
Price :
negotiation
Cooling Capacity :
6100 W (at 0℃), 3130 W (at 30℃)
Applicable Temperature :
-20℃ ~ +20℃
Model Number :
HT-680
Description
HT-680 Direct Engine Driven Refrigeration Unit For 27m³ Refrigerated Truck
Product Overview
  • Direct engine driven design, specially matched with vehicle engine operation, no additional power source required
  • Driven by the vehicle engine, specifically designed for 27m³ refrigerated trucks
  • Widely used for transporting chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, and other temperature-sensitive items
  • OEM customized service available for specific installation, specifications and function requirements
  • Low operational and maintenance costs, reducing long-term operating expenses
  • Easy installation, saving time and labor costs, suitable for quick deployment
  • Ideal for long-distance transportation with stable and reliable performance
Key Features
  • Eco-friendly refrigerant R404A; R134a system also available for flexible choice
  • Corrosion-resistant and high-strength FRP canning material, durable and weather-resistant
  • Aluminium fin parallel flow condenser - lightweight, compact structure with excellent heat exchange performance
  • Inner grooved copper tube evaporator with strong cooling capacity and large air flow
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel with minimal operation steps for easy adjustment and monitoring
  • HP (High Pressure) and LP (Low Pressure) switch safety protection
  • Large cooling capacity and reliable performance for stable temperature maintenance
Technical Parameters
Parameter Specification
Unit Model HT-680
Applicable Temperature -20℃ ~ +20℃
Box Volume ≤27m³
Cooling Capacity 6100 W (at 0℃)
3130 W (at 30℃)
Compressor Model: GY17
CC: 177 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 3 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 2.7 Kg
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight Evaporator: 31 Kg
Condenser: 49 Kg
Dimensions Evaporator: 1240*610*270(mm)
Condenser: 1500*650*530(mm)
Drive Model Non-independent engine driven
Application: Perfect for refrigerated transport of food, medical supplies, fruits, vegetables, seafood, and other temperature-sensitive goods requiring strict temperature control.
