HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity
HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity
HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity
HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity
Specifications
Brand Name :
YINHUASHENG
Model Number :
HT-500
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
WOODEN CASE/CARTOON
Applicable Temperature :
-25℃ ~ +25℃
Box Volume :
≤18m³
Cooling Capacity :
5100 W at 0℃, 2350 W at -18℃
Compressor Displacement :
163 CC
Refrigerant Charge :
1.4KG
Evaporator Dimensions :
1010×640×250 mm
Description
HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube
Professional refrigeration unit designed for trucks, lorries, and vans with cargo volumes up to 18m³. Ideal for cold chain transport applications requiring reliable temperature control.
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser - lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • High and low pressure switch safety protection
  • Large cooling capacity with reliable performance
Product Images

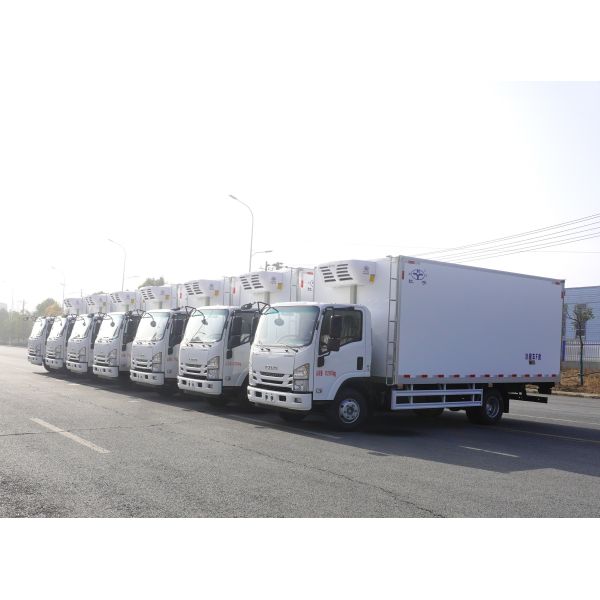

HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for 5100 W Cooling Capacity
Technical Specifications
Unit Model HT-500
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity 5100 W at 0℃
2350 W at -18℃
Compressor Model: GY16
Displacement: 163 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight & Dimensions Evaporator: 26 KG (1010×640×250 mm)
Condenser: 35 KG (1170×520×415 mm)
Drive Model Non-independent engine driven
Important Notes
  • The applicable compartment volume is for reference only. Actual performance depends on compartment volume, insulation quality, environmental temperature, and transported goods.
  • Compressor operates at 2000 rpm with selectable 12V/24V voltage options.
