Specifications
Compressor model :
5H14
Model Number :
X-58
MOQ :
1PCS
Supply Ability :
1000
Delivery Time :
20
Payment Terms :
L/C,T/T
Evaporator dimensions :
910*570*210 mm
Brand Name :
YINHUASHENG
Packaging Details :
WOODEN CASE/CARTOON
Refrigerant charge :
1.2KG
Certification :
CE/ISO
Refrigerant type :
R404a
Place of Origin :
CHINA
Price :
negotiation
Compressor displacement :
138 CC
Cooling capacity :
3250 W @ 0℃, 1830 W @ -18℃
Description
X-58 Top Mounted Vehicle Refrigeration System
Product Overview

The X-58 is a top-mounted refrigeration system designed for refrigerated trucks and vans. This direct-drive system is engineered for 14m³ vehicles and is ideal for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, and other temperature-sensitive goods.

  • Top-mounted installation on refrigeration vans and trucks
  • Direct drive by vehicle engine
  • OEM customized services available
  • Low operational and service costs
  • Easy installation process
  • Suitable for long-distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, light and compact with excellent heat exchange
  • Inner grooved copper tube with strong evaporator, large airflow and superior evaporator coil protection
  • Strong, reliable and stable compressor specially designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
Technical Specifications
Parameter Specification
Unit Model X-58
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤14m³
Cooling Capacity 3250 W @ 0℃
1830 W @ -18℃
Compressor Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.2KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator: 15 KG
Condenser: 27 KG
Evaporator: 910*570*210 mm
Condenser: 1150*690*250 mm
Drive Model Non-independent engine driven
Product Images

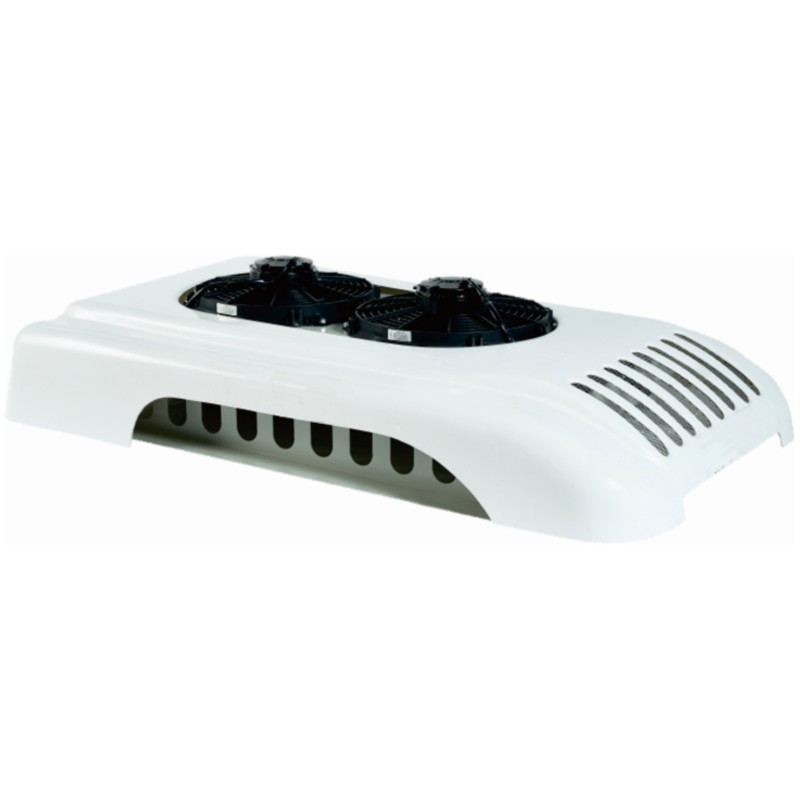

Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks Using R404A Refrigerant
Front View
Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks Using R404A Refrigerant
Side View
