Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning
Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning
Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning
Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning
Specifications
Cooling Capacity :
1130W (-18℃), 2150W (0℃)
Refrigerant :
R404a
Brand Name :
Yinhuasheng/OEM
Place of Origin :
China
Certification :
CE
MOQ :
1SET
Price :
Negotiable
Packaging Details :
Negotiable
Delivery Time :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Model Number :
X-28
Compressor Model :
5H14
Evaporator material :
Inner grooved copper tube&aluminum Fin
Compressor Displacement :
138 CC
Temperature Range :
-25°C To +25°C
Description
Roof-top Refrigeration System for truck, ≤6m³
Product Overview
Direct engine drive refrigeration system designed for refrigerated trucks up to 6m³ capacity, ideal for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood.
  • Driven by vehicle engine for 40m³ refrigerated trucks
  • OEM customized service available
  • Low operational cost and service cost
  • Easy installation
  • Suitable for long distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, light and compact with good heat exchange
  • Inner grooved copper tube with strong evaporator, large airflow and good protection
  • Strong reliable and stable compressor for R404a systems
  • Digital display control panel with minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance

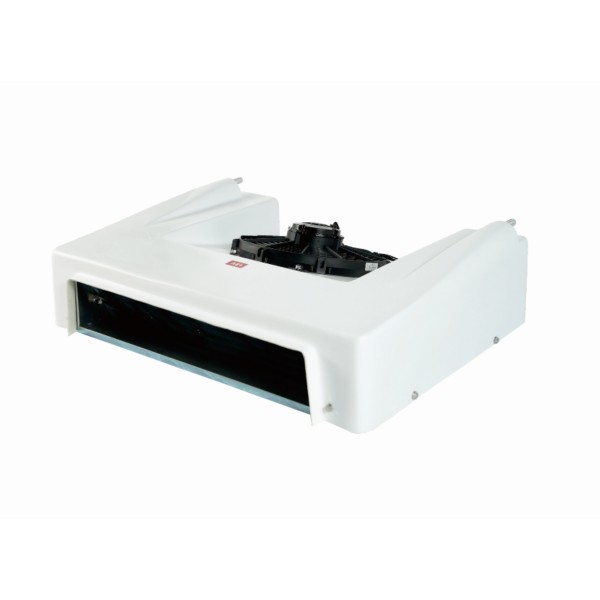

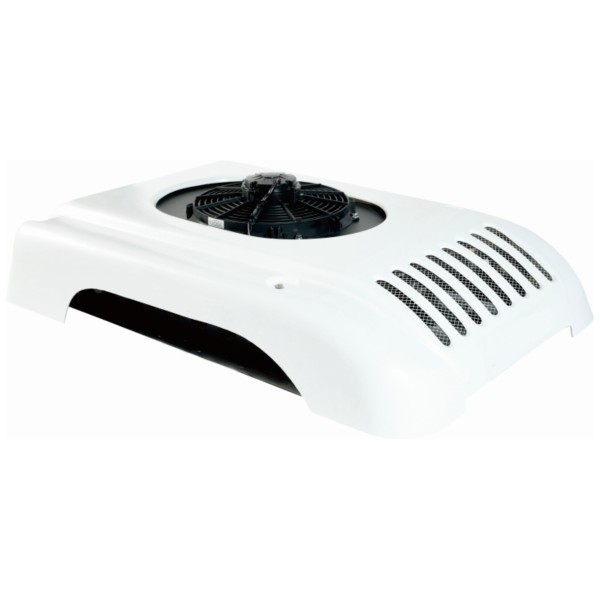

Product Images
Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning Direct Engine Drive Roof-top Refrigeration System for Truck with ≤6m³ Capacity and Corrosion Resistant FRP Canning
Technical Parameters
Unit Model X-28
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤6m³
Cooling Capacity 0℃: 2150 W
-18℃: 1130 W
Compressor Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 1 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 1 PCS
Refrigerant R404a
Refrigerant Charge 0.8KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator: 13 KG
Condenser: 21 KG
Evaporator: 780×580×210
Condenser: 960×690×250
Drive Model Non-independent engine driven
