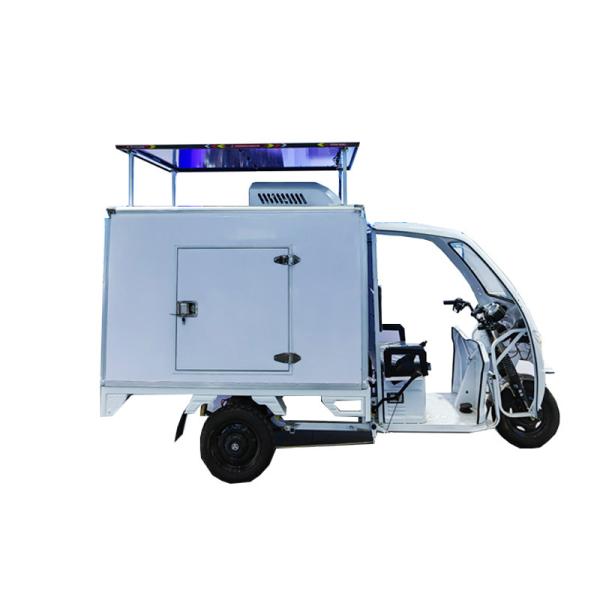

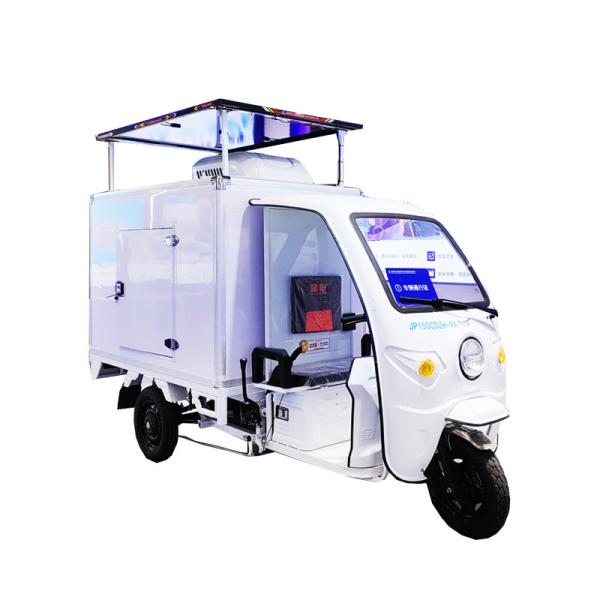

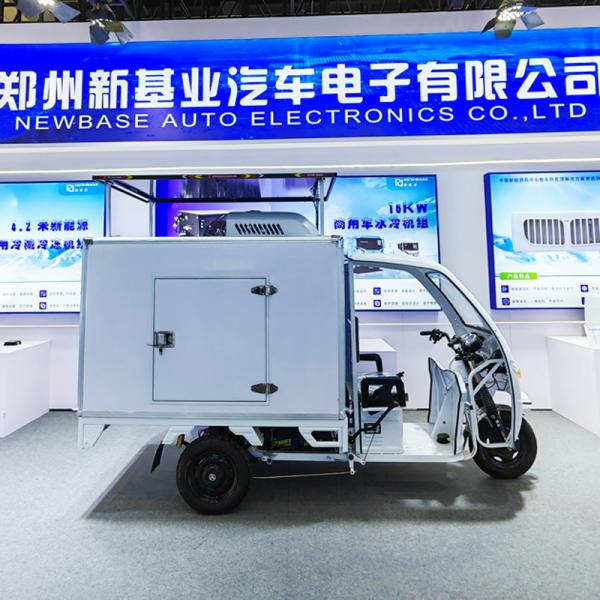

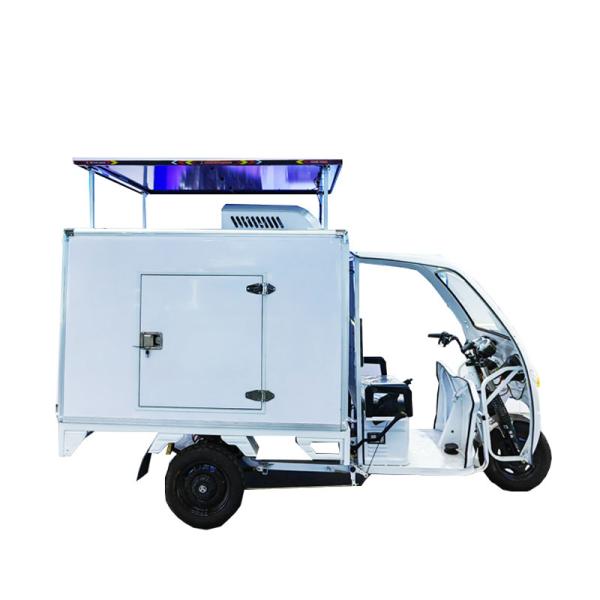

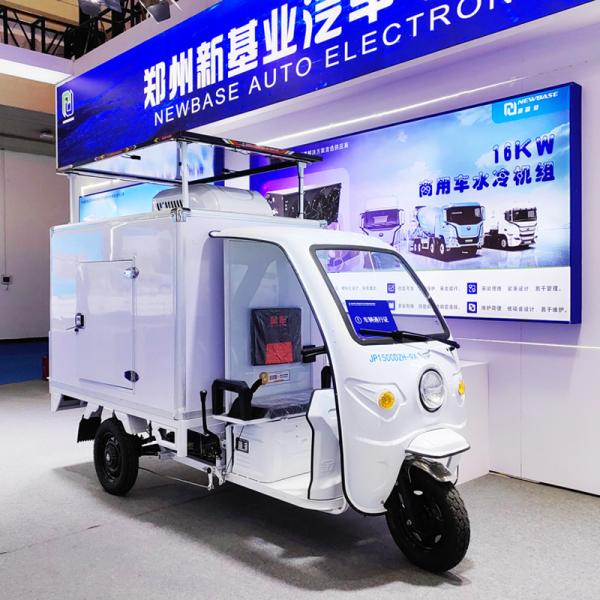

NEWBASE Electric Refrigerated Tricycle

Technical Specifications of the Refrigerated Compartment

1. External Dimensions:
   • Length × Width × Height: 1500 mm × 1000 mm × 1000 mm
2. Volume:
   • 0.9 m³, providing sufficient space for various refrigerated goods.
3. Compartment Material:
   • Constructed with polyphenylene (XPS/EPS)/polyurethane (PUR) foam insulation panels, ensuring excellent insulation performance, waterproof, shock-resistant, and corrosion-resistant properties for a long service life.
4. Power Supply Compatibility:
   • Supports both 60V vehicle power (for on-the-go use) and 220V mains power (for fixed-site use), offering flexible application scenarios.
5. Refrigerant Type:
   • Uses environmentally friendly R404A refrigerant, which is highly efficient and meets international environmental standards.
6. Temperature Control Range:
   • Adjustable from 0°C to 8°C, with the ability to rapidly cool down to 0°C within 30 minutes from room temperature.
7. Operating Power:
   • Maximum operating power of 800W, featuring intelligent variable frequency regulation technology for energy efficiency and reduced power consumption.
8. Battery Life:
   • Equipped with a high-density lithium battery, offering a single full-charge endurance of 72 hours and supporting uninterrupted power supply during transit.
9. Intelligent Monitoring:
   • Embedded 4G module with upgraded IoT functionality, enabling real-time tracking and monitoring throughout the journey.

Control Panel Features

• Both models of the refrigerated compartments are controlled via a visualized control panel.
• Interactive functions include switches, temperature adjustment, defrosting, and real-time display of internal temperature and disinfection status.
• The control panel can be further customized according to your specific requirements.

The NEWBASE Electric Refrigerated Tricycle combines advanced technology, environmental sustainability, and user-friendly features to provide an efficient and reliable solution for cold chain logistics. Its versatile power supply options, rapid cooling capabilities, and intelligent monitoring system make it an ideal choice for businesses seeking high-performance refrigerated transportation.

Choose NEWBASE for your cold chain needs and experience the future of refrigerated logistics.
