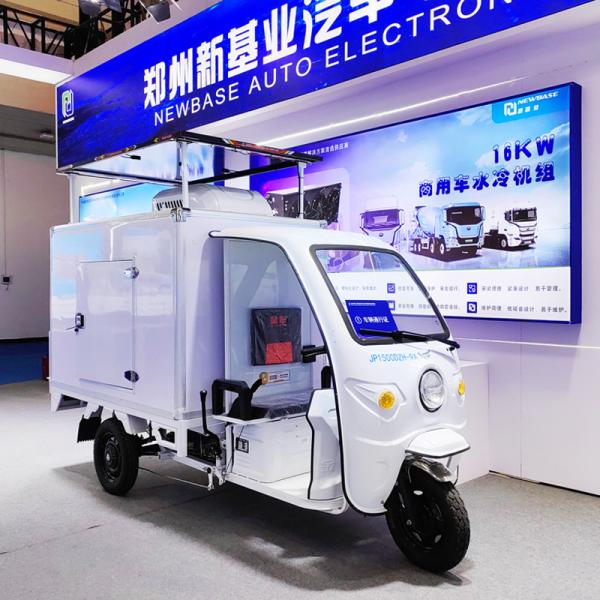

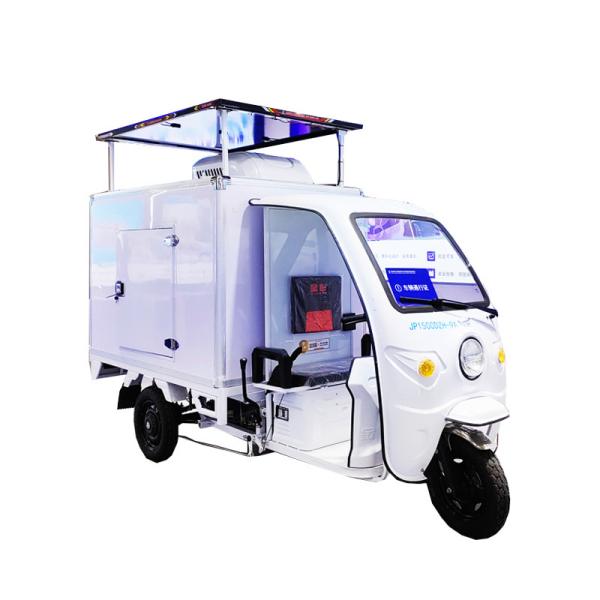

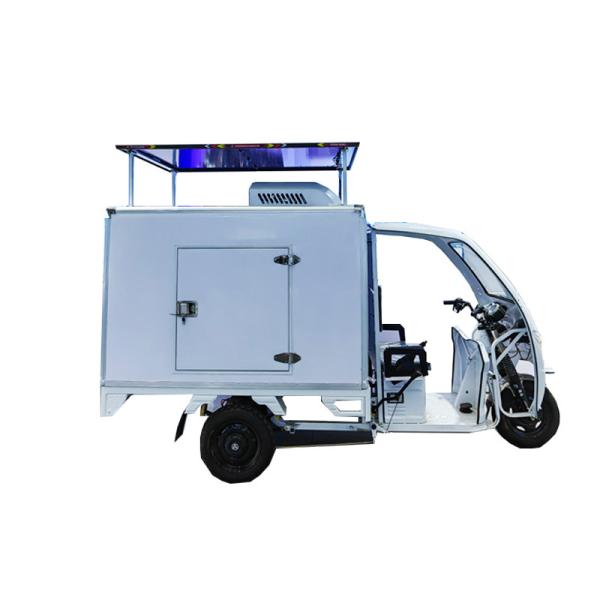

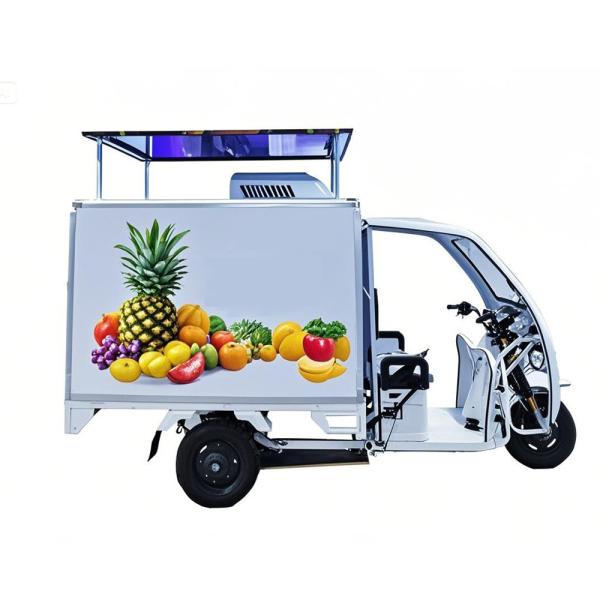

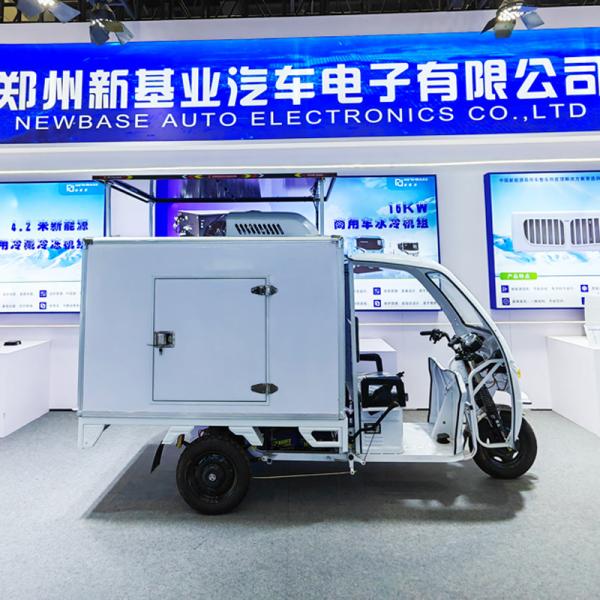

Introduction to NEWBASE Electric Refrigerated Tricycle - Refrigerated Compartment Technical Specifications

At NEWBASE, our Electric Refrigerated Tricycle is engineered to meet the highest standards in cold chain transportation. Below are the detailed technical specifications for the refrigerated compartment, specifically designed for rapid cooling down to -10°C.

Technical Specifications for Refrigerated Compartment

1. Category & Technical Specifications

   • External Dimensions:
     • Length × Width × Height: 1501.5 mm × 1006 mm × 1003 mm
   • Volume:
     • 0.9 m³, providing ample space for your refrigerated goods.
   • Compartment Material:
     • Constructed with XPS/EPS/PUR foam insulation panels, offering excellent waterproof, shock-resistant, and corrosion-resistant properties, ensuring a long service life.
   • Power Supply Compatibility:
     • Supports both 60V vehicle power (for on-the-go use) and 220V mains power (for fixed-site use), providing flexible application scenarios.
   • Refrigerant Type:
     • Uses environmentally friendly R404A refrigerant, which is highly efficient and meets international environmental standards.
   • Temperature Control Range:
     • Adjustable from -18°C to 20°C, with the ability to rapidly cool down to -10°C within 20 minutes from room temperature.
   • Operating Power:
     • Maximum operating power of 800W, featuring intelligent variable frequency regulation technology for energy efficiency and reduced power consumption.
   • Battery Life:
     • Equipped with a high-density lithium battery, offering a single full-charge endurance of 72 hours and supporting uninterrupted power supply during transit.
   • Intelligent Monitoring:
     • Embedded 4G module with upgraded IoT functionality, enabling real-time tracking and monitoring throughout the journey.

The NEWBASE Electric Refrigerated Tricycle is designed to deliver exceptional performance, reliability, and environmental sustainability. Its advanced features and flexible power supply options make it an ideal choice for a wide range of refrigerated transportation needs.

Choose NEWBASE for your cold chain logistics solutions and experience the benefits of cutting-edge technology and superior performance.
