Home Battery Storage System 36 kWh Lithium Battery with High Capacity and Multiple Safety Features for and Stable Home Energy Storage
Home Battery Storage System 36 kWh Lithium Battery with High Capacity and Multiple Safety Features for and Stable Home Energy Storage
Specifications
Brand Name :
VBRITE
Model Number :
PH3.6KW
Certification :
CE ROSH
Place of Origin :
CHINA
Description

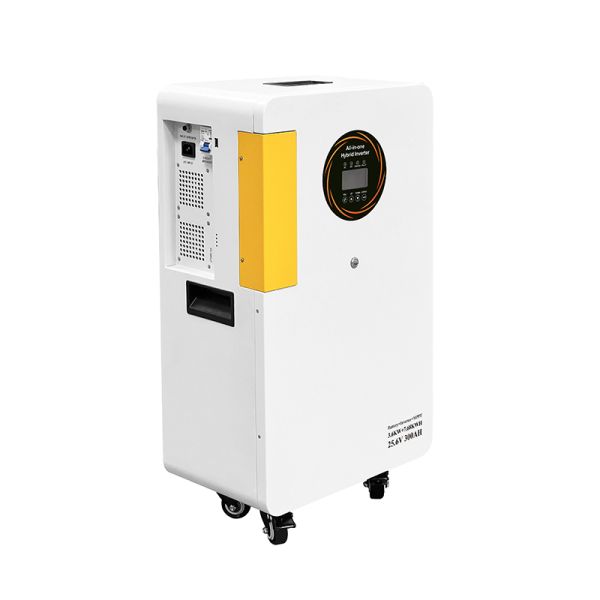

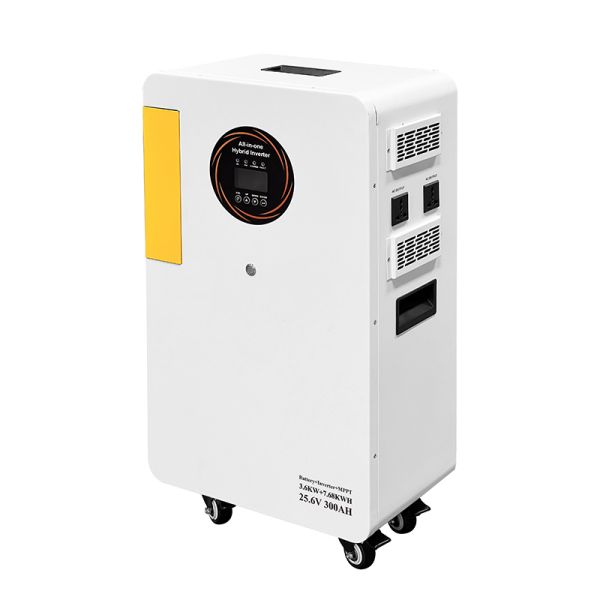

Product Introduction – 3.6kWh Lithium Battery System
Our 3.6 kWh lithium iron phosphate (LiFePO₄) battery system is designed for reliable and long-lasting home energy storage. With a 300Ah high-capacity design and a rated voltage of 25.6V, it provides up to 7680Wh of usable energy and supports a maximum continuous discharge current of 150A, making it ideal for solar systems, backup power, and residential load support.

Home Battery Storage System 36 kWh Lithium Battery with High Capacity and Multiple Safety Features for and Stable Home Energy Storage

The system features a full smart BMS with protections for over-voltage, over-charge, over-discharge, short-circuit, and temperature control, ensuring safe and stable performance throughout its lifespan. With over 6000 charge cycles, an LCD display, and a wide operating temperature range, this 3.6 kWh unit offers dependable energy storage for both on-grid and off-grid applications.

Home Battery Storage System 36 kWh Lithium Battery with High Capacity and Multiple Safety Features for and Stable Home Energy Storage

Inverter Parameters PH 3.6KW 　 　
Power 3.6KVA /3.6KW
Maximum photovoltaic input power 3.6KW
Two AC outputs Yes
Maximum one-way AC output power 3.6KVA / 3.6KW
Maximum two-channel AC output power 3.6KVA / 3.6KW
Maximum AC total output power 3.6KVA / 3.6KW
Parallel machine function NO
Lithium-ion communication NO
Lithium battery activation Yes (photovoltaic or mains)
Input 　
Rated voltage 230VAC
Voltage range 170-280VAC (computer application); 90-280VAC (household appliances)
Frequency 50 / 60 Hz (automatic detection)
Output 　
Rated voltage 220/230VAC±5%
Instantaneous power 5400VA
Frequency 50 / 60 Hz
Output waveform Pure Sine Wave
Switching time 10ms (computer application); 20ms (household appliances)
Peak efficiency (PV to INV) 96%
Peak power (Battery to INV) 93%
Overpower protection 5s@＞=140% load; 10s@100%~140% load
Peak coefficient 3:1
Power factor 0.6~1 (capacitive or inductive)
Grid connection mode Not support
PV Charging & AC Charging 　
Charge mode MPPT
Maximum photovoltaic input power 5000W
Maximum photovoltaic open circuit voltage 500VDC
MPPT voltage range 40VDC~450VDC
Maximum photovoltaic input current 18A
Maximum photovoltaic charging current 100A
Maximum mains charging current 100A
Maximum charging current 100A
Battery Parameters 　 7.68kW.h
General
Nominal Capacity 300Ah
　 　
Rated Voltage 25.6V
Discharge Cut-off Voltage 22V
Charging Cut-off Voltage 26.6V
Float charging voltage 27V
Continuous charging maximum current 100A
Maximum current for continuous discharge 150A
Battery Energy 7680Wh
Rated Output Power 3600W
Communication Interface NO
Discharge working temperature -15℃～50℃
Charging working temperature 0℃～50℃
Relative Humidity 5～90%
Altitude ≤4000m
Protection Grade IP21
Storage Time Keep charging at least once every 3 months
Number of cycles ≥6000 times
Physical Property 　 　
Product Size, length x width x height (mm) 740*400*240
Package Size, length x width x height (mm) 765*465*400
Net Weight (Kgs) 65.75
Gross Weight (Kgs) 77.75
LCD Yes
Application Environment 　
Operating temperature range -10°C to 55°C
Storage temperature range -15°C~ 60°C
Humidity 5% to 95% relative humidity (no frost)
