Specifications
Brand Name :
Vbrite
Model Number :
VB-VERTICAL 10KW.H
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Delivery Time :
10~15Day
Packaging Details :
Carton Packing
Storage Capacity :
10240Wh
Battery Voltage :
40V~58.4V
Capacity :
≥100Ah
External Dimension :
1150*600*210
Communication :
RS485,CAN,RS232
Maximum Altitude :
3000m
Description


All-in-one vertical stackable solar storage system with 5kWh Lifepo4 lithium batteries for smart and scalable home energy solutions.
All-in-one vertical stackable solar storage system with 5kWh Lifepo4 lithium batteries for smart and scalable home energy solutions.


PARAMETER

MODEL
VB-VERTICAL 10KW.H
COMPREHENSIVE PARAMETERS
Battery Voltage
40V~58.4V
Storage Capacity
10240Wh
Colour
White
External Dimension
1150*600*210
Warranty
5 Years
BATTERY MODULE PARAMETERS
Type of batter
LFE
Capacity
102Ah
Battery Cycle Life
6000
Modular Structure
1P16S*2
OVERALL CHARACTERISTIC
Capacity for assembled cell discharging by 0.2C
≥100Ah
Standard Charge Condition
Charge with 0.5C constant current and 58.4Vconstant voltage,
charge to 58.4V,continue charging till current declineto ≤0.01C
Maximum Charge Current
100A
Maximum Discharge Current
Internal Resistance
≤80mΩ Assemblage Impedance
Cycle Life
≥6000@25℃,80%EOL
Recommend Charging Temperature
0℃～50℃
Recommend Discharging Temperature
-15℃～50℃
Storage Temperature
Humidity
0-90%
Maximum Altitude
3000m
FUNCTIONAL CONFIGURATION
LED Panel (Light Emitting Diode)
YES
Communication
RS485,CAN,RS232
IP Rating
IP21
Inverter
5KW
LED Power Display
Traffic Light Display
BMS Control
Control Battery Performance
PACKAGE
G.W.
149.4KGS
Package Size
Battery packing size: 670*500*285mm(carton box)*2pcs
680*510*300mm(UN wooden boxes)*2pcs
Inverter+Base packing size: 670*500*285mm

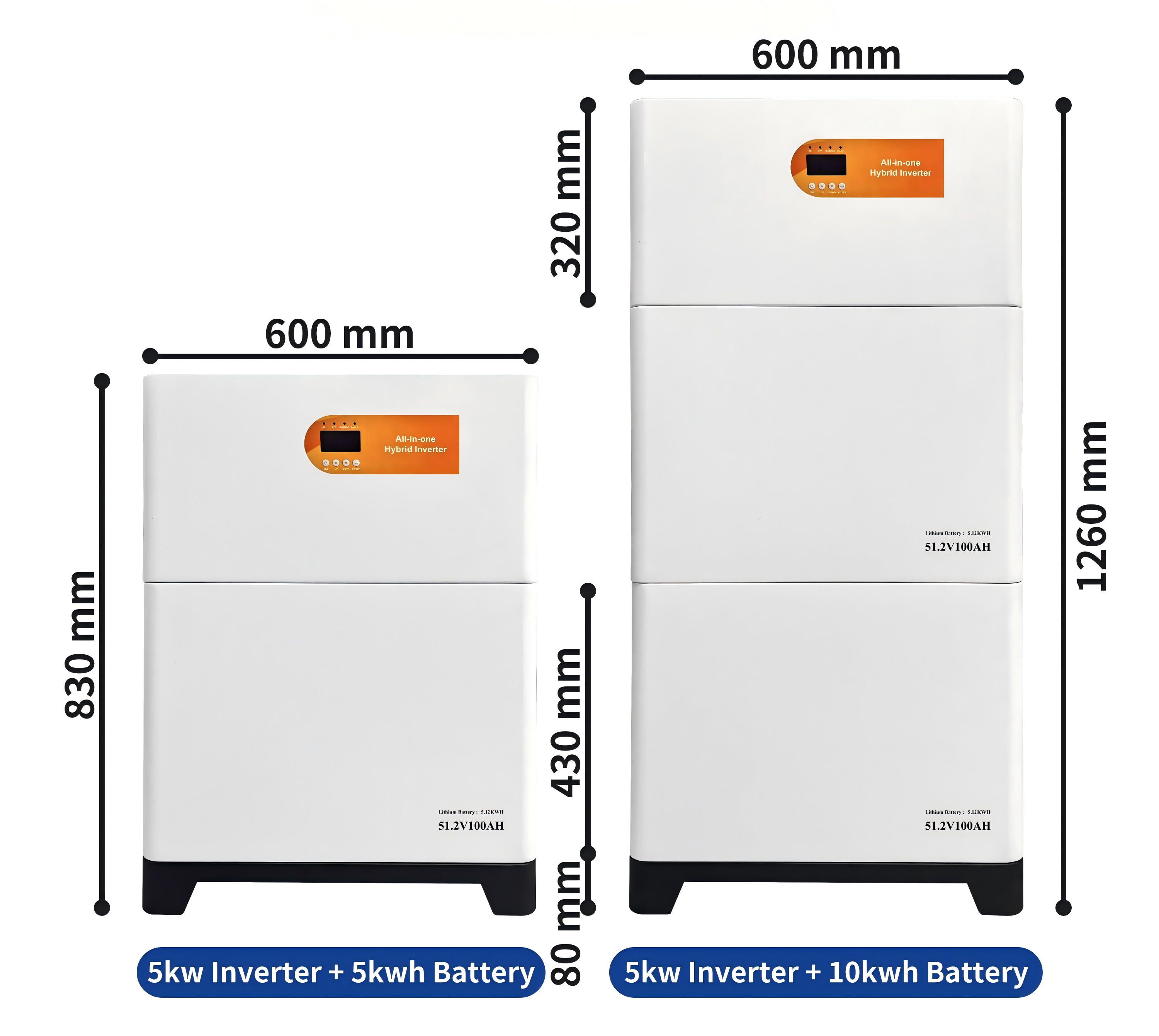

DIMENSION

All-in-one vertical stackable solar storage system with 5kWh Lifepo4 lithium batteries for smart and scalable home energy solutions.




CAUTIONS

  • Do NOT expose the battery to water
  • Do NOT expose the battery to fire & high temperature
  • Do NOT short circuit, crush or disassemble
  • Make sure the inverter's setting matches with the battery's charge & discharge characteristic
  • Store at 50% capacity, and recharge the battery every 3 months
  • The storage area should be clean, cool, dry and ventilated
  • Disconnect the battery from the inverter and shut down the BMS when the battery is in storage status
  • Maximum connection in 16 parallel, no series connection supporte
