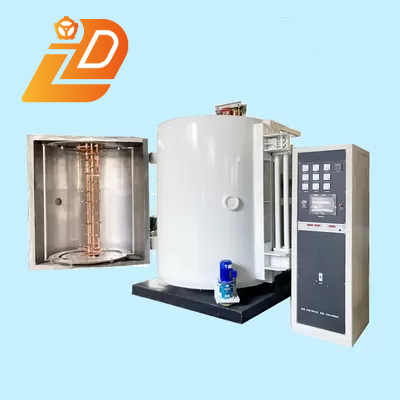

Customizable Touch Screen Evaporation Vacuum Coating Machine with 304 Stainless Steel Chamber and Real-time Coating Monitoring
Customizable Touch Screen Evaporation Vacuum Coating Machine with 304 Stainless Steel Chamber and Real-time Coating Monitoring
Customizable Touch Screen Evaporation Vacuum Coating Machine with 304 Stainless Steel Chamber and Real-time Coating Monitoring
Customizable Touch Screen Evaporation Vacuum Coating Machine with 304 Stainless Steel Chamber and Real-time Coating Monitoring
Specifications
Brand Name :
Zhongda
Certification :
CE
Place of Origin :
Zhaoqing, Guangdong
Coating Uniformity :
≤±5%
Coating Color :
Silver, Gold, Rose Gold, Black, etc.
Operation Way :
Touch Screen
Substratesize :
Up to 500mm diameter
Power :
220V
Vacuumdegree :
1x10^-5 to 5x10^-6 Torr
Coatingmethod :
Vacuum Evaporation
Coating Type :
Vacuum
Rotation Stand :
2 Sets
Chamber Materia :
304 stainless steel
Control System :
Full Auto
Power Supply :
AC or DC
Coating Control System :
PLC
Application :
Coating
Coating Monitoring System :
Real-time
Guarantee Period :
1 Year
Description
Customizable High Vacuum Evaporation Coating Equipment
This advanced evaporation decorative metallizing vacuum coating machine features a robust structure with large pumping speed, short working cycles, and high production efficiency. Engineered for convenient operation with low energy consumption, it delivers stable performance, uniform film layers, and superior film quality.
Applications
Widely utilized across multiple industries including automotive, audio equipment, household appliances, computers, watches, mobile devices, reflectors, cosmetics, and toys.
Technology & Process
Utilizes resistance heating within a vacuum chamber to melt and vaporize metal plating materials. Metal molecules deposit onto substrates to create smooth, highly reflective metal film layers for decorative surface enhancement and beautification.
Material Compatibility
Processable Materials
  • ABS, PS, PP, PC, PVC, TPU
  • Nylon, glass, ceramics, metals
Surface Conditions & Plating Colors
  • Surface Conditions: Electroplated bright surface, matte surface (semi-matte, full matte), process electroplated wrinkles, brushed, raindrops
  • Plating Colors: Gold, silver, red, blue, green, purple, seven-color spectrum
Technical Specifications (Model 1820 Example)
Specification Details
Vacuum Chamber 1800 mm × 2000 mm
Film Types Semi-transparent films in various colors: gold, silver, red, blue, green, gray, black, multicolor
Power Supply Types Resistance heating tungsten wire evaporation transformer power supply, high-voltage ion bombardment power supply, thyristor power supply
Vacuum Chamber Structure Vertical double doors, vertical single doors, horizontal single doors with suction system
Vacuum System Mechanical pump + Roots pump + diffusion pump + maintenance pump (cryogenic system optional)
Ultimate Vacuum 8×10⁻⁴ Pa (no-load, clean chamber)
Pumping Time Less than 6 minutes to reach 5×10⁻² Pa under no-load conditions
Workpiece Rotation Mode 6-axis / 8-axis / 9-axis male self-rotation with variable frequency stepless speed regulation
Control Mode Manual + semi-automatic + fully automatic integrated / touch screen + PLC
Note: Vacuum chamber dimensions can be customized according to customer product requirements and special process needs.
