Specifications
Place of Origin :
Guangdong
Brand Name :
Lion King
Certification :
CE
MOQ :
1
Delivery Time :
20
Coating Power Supply :
DC/RF/AC
Coating Process :
Vacuum Evaporation
Coating Density :
≥99.9%
Coating Thickness :
0.1-10 microns
Coating Technology :
Multi Arc Ion
Coating Application :
Decorative, Functional, Protective
Coating Color :
Silver, Gold, Rose Gold, Black, etc.
Coating Uniformity :
≤±5%
Coating Hardness :
≥Hv800
Coating Adhesion :
≥Grade 1
Coating Substrate :
Metal, Glass, Ceramic, Plastic
Coating Chamber Size :
Customized
Coating Control System :
PLC/Touch Screen
Coating Temperature :
≤200℃
Coating Size :
Customized
Coating Speed :
1-4m/min
Coating Source :
Arc Evaporation
Coating Material :
Metal
Description
Cosmetics Vacuum Coating Machine PVD Evaporation Vacuum Coating Machine
The Lion-1821 double doors evaporation vacuum coating machine is designed for high-quality surface metallization of plastics and decorative materials. This advanced system enables vacuum coating with UV line processing to achieve various metallic finishes including gold, silver, red, purple, blue grey, black, and other colors, enhancing product quality with luxurious visual effects.

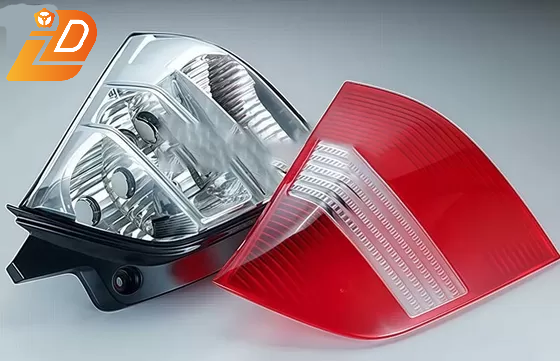

Applications: Ideal for plastics (ABS, PS, PP, PC, PVC), nylon, ceramics, resin, and glass substrates. Perfect for toys, ornaments, craftwork, mobile shells, electronics products, lamps, and cosmetic components.
Technical Performance Indicators
Ultimate Vacuum Degree Better than 8×10⁻⁴Pa (no load, dry, clean room)
Pumping Time From atmosphere to 5×10⁻²Pa ≤ 6 minutes (no load, dry, clean room)
Main Technical Specifications
Vacuum Chamber
  • Vertical double doors design with inner size Ø1800mm × H2000mm
  • Constructed from Q235B carbon steel with polished inner wall
  • High-quality stainless steel connecting pipes and bellows for durability
  • Includes stainless steel protective liner for easy removal and operation
  • Observation window on each door for monitoring chamber operations
  • Split structure connecting main valve and coating chamber for maintenance convenience
  • Sealing ring installed on coating chamber door
  • Gate equipped with pneumatic door locks and pneumatic brakes
Planet Rotation System
  • Each door features planet rotation shelf with self and public rotation capabilities
  • Self rotation with 6/8 shaft configuration
  • Gears undergo water electroplating process
  • Engine input installed on chamber bottom with frequency converter control for adjustable speed
  • Stainless steel cover prevents aluminum slag and debris from entering gears
Pumping System Components
Diffusion Pump KT-800 convex cavity high vacuum oil diffusion pump, pumping speed 32000L/S, stainless steel pump core with high vacuum pumping speed and low oil return rate; equipped with independent anti-oil return cold trap (2 sets)
Resistive Heater Resistive wire heater for diffusion pump, designed for easy fixing and maintenance (2 sets)
Roots Pump ZJP-1200 roots pump with pumping speed of 1200L/S; power: 7.5KW; low vibration, high vacuum degree, stable performance and durable quality; equipped with frequency converter to increase pumping speed (1 set)
Slide Valve Pump H-150 slide valve pump
Unique Design Advantage: Features specialized electrode distribution and convenient tungsten wire clamping system, ensuring uniform workpiece film distribution with high production quantity and excellent yield rates.
