Evaporation Vacuum Coating Machine for High Precision Optical Films with Stable Rotation and Ion Source
Evaporation Vacuum Coating Machine for High Precision Optical Films with Stable Rotation and Ion Source
Specifications
Brand Name :
Zhongda
Model Number :
CE
Place of Origin :
Zhaoqing, Guangdong
MOQ :
1
Delivery Time :
45-60 work days
Coating :
TiO2,Ti3O5, H4, ZrO2, ZnS, Al2O3, MgF2, SiO2, Au, Ag, Cu, Al, Ti, In, Sn
Chamber materia :
304 stainless steel
Coating Structure :
Single Layer, Multi-layer, Gradient, Etc.
Machine Size :
Customizable
Vacuum System :
high
Control System :
PLC
Coating Thickness :
adjustable
Structure :
Vertical front door structure
Rotational speed :
10 to 30RPM (variable)
Coating Environment :
NO DUST
Pump Brands :
China
Coating Material :
Metal, Ceramic, Glass, Plastic, etc.
Productname :
Evaporation Vacuum Coating Machine
Operation Mode :
Manual/Automatic
Controlsystem :
PLC with Touch Screen
Pumptype :
Rotary vane pump + diffusion pump
Vacuum Level :
High Vacuum
Coating Source :
Thermal Evaporation Source
Chambermaterial :
Stainless Steel
Coating Substrate :
Metal, Glass, Ceramic, Plastic
Coating Technology :
Vacuum Thermal Evaporation
Evaporation System :
2 Sets
Guarantee Period :
1 Year
Coating Transparency :
High
Description

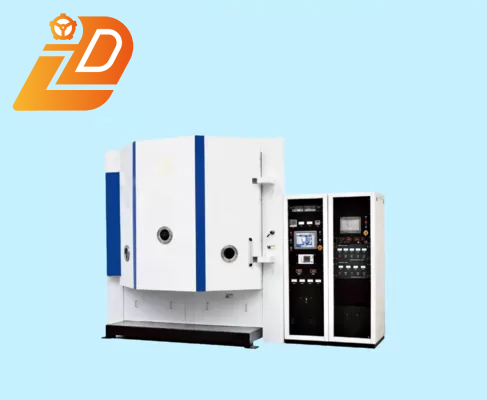

Evaporation Vacuum Coating Machine for High Precision Optical Films
Advanced vacuum coating system designed for depositing high-precision optical multilayer films on glass, PC, and PMMA substrates with stable rotation and ion source technology.
Key Features
  • Precision vacuum coating for high-precision optical multilayer films on glass, PC, and PMMA substrates
  • Customizable components to meet specific customer requirements for superior film quality
  • Central rotation mode (revolution) substrate umbrella frame minimizes vibration and particle generation
  • Electron beam heating method without electrode plates ensures stable multi-layer film formation
  • Proprietary ratio control method with multi-point online monitoring for precision optical films
  • Removable substrate umbrella frame with well-operated lift mechanism
  • Ion source with uniformly distributed high ion current density and dual electron guns
  • Capable of processing more than 100 layers with multi-point and ring-shaped crucibles
  • Fully automated evaporation process through automatic evaporation control system
  • Choice of bell jar type or planetary type workpiece rack configurations
System Configuration
Component Specifications
Fixture System Rotating umbrella frames on center, single or split configuration
Heating System Halogen lamp/armored heater, up to 350℃
Exhaust System Low vacuum pump set + high vacuum pump set + cryogenic pump/Polycold
Vacuum Control Vacuum controller, Panning and Pirani vacuum gauges
Coating System Electron gun, oxygen-free copper crucible, impedance evaporation source, RF/Kaufman/Hall type ion source
Inflation System MFC or APC automatic pressure controller
Film Thickness Control Crystal controlled or light controlled
Control System PC + PLC integration
Application Specifications
AR Film Coating
Substrate glass transmittance > 91.5%
  • 420-680nm band: Average transmittance on one side > 95%, reflectance < 0.5% (average)
  • Average transmittance on both sides > 98%, reflectance < 0.5% (average)
Performance Advantages
  • Increased deposition rate for higher production output
  • High-precision processing capabilities for semiconductor, optoelectronics, and photonics applications
  • Durable construction with easy maintenance requirements
