Specifications
Place of Origin :
Guangdong
Brand Name :
Lion King
Certification :
CE
MOQ :
1
Delivery Time :
20
Coating Warranty :
1 year
Substrate Material :
Glass, Metal, Ceramic
Coating Type :
Optical
Coating Deposition Rate :
1-5 Å/s
Coating Hardness :
≥800HV
Coating Chamber Size :
Customizable
Coating Power Supply :
High Voltage Power Supply
Coating Adhesion :
≥100N
Coating Uniformity :
±5%
Coating Material :
Electron Gun
Coating Control System :
PLC Touch Screen
Coating Thickness :
0.1-10 microns
Coating Method :
Electron Beam Evaporation
Coating Temperature :
≤200℃
Coating Transparency :
≥95%
Coating Application :
Optical Lenses, Mirrors, Filters
Coating Features :
High Efficiency, Low Cost, Easy Operation
Coating Substrate :
Glass, Metal, Ceramic, etc.
Warranty :
1 year
Vacuum Chamber Size :
Customizable
Power Supply :
AC 220V, 50/60Hz
Application :
Electron Gun Coating
Coating Size :
Customizable
Type :
Coating Machine
Control System :
PLC + Touch Screen
Description

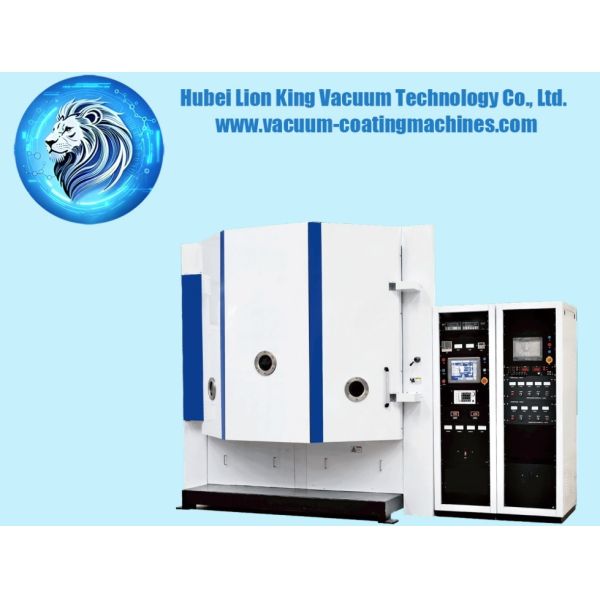

Optical Thin Film Deposition System
Advanced electron beam gun vacuum coating machine designed for laboratory scientific research applications in optical thin film deposition.
Technical Specifications
Component Specification
Vacuum Chamber φ800×H900mm
Heating Method Top, Side, Bottom (optional)
High Vacuum System Molecular Pump, Diffusion Pump, Cryogenic Pump (Optional)
Low Vacuum System Dry Pump, Direct Pump, Roots Pump, Rotary Vane Pump (optional)
Control System Industrial Computer Touch Screen Fully Automatic Control
Crystal Film Thickness Monitor Inficon XTC-3, SQC310, Shanghai MXC-3B
Ion Source RF Ion Source, Hall Ion Source, Kaufman Ion Source, Hollow Cathode Ion Source (optional)
Rotation of Workpiece Umbrella Workpiece Holder, Roller Workpiece Holder (optional)
Electron Gun Single, Double, Multi-position (optional)
Cryogenic Unit Multiple Suppliers (optional)
Probe System Single, 6-point and 12-point Rotary Sensor (optional)
Ultimate Pressure ≤8.0×10⁻⁵Pa (clean vacuum chamber at normal temperature, free of sample and coating material)
Vapor Barrier System Unit Block, Two-position Block and Multi-position Rotary Block (optional)
Vacuum Pressure Maintaining Close high valve, vacuum degree ≤9×10⁻²Pa after 1 hour
Required Power Supply Three-phase Electricity, 380V, 50HZ
Water Pressure Required 0.3-0.4Mpa
Equipment Weight 3T-4T
Air Pressure Required 0.6-0.8Mpa
Key Features
  • Reactive Magnetron Sputtering with RF I-beam Assistant for AR, Evaporation for AF
  • One-stop Mode for Multi-coating: AR with AF Top Coating and Hardness of 9H+ Layers Process
  • Wide Selection of Materials and Complete Film Types
  • Excellent Film Accuracy, Hardness, Abrasion-resistance and Adhesion
  • Natural Non-Residual Stress Characteristics
  • Superior Processing Stability, Uniformity and Repeatability
  • User-Friendly Interface with Intuitive Operation
  • High Yield and Low Energy Consumption
Applications
Optical coaters control light characteristics by coating optical component surfaces, enabling precise optical performance across multiple industries.
Primary Application Areas
  • Optical Equipment: Camera/Microscope Lens Anti-Reflection Coating, Mirror High Reflection Coating, Spectrometer Filter
  • Optical Communication & Photovoltaic: Anti-reflective coating for optical fiber devices, anti-reflection coating for solar cells, coating for wavelength division multiplexing components
  • Display & Lighting: Screen anti-glare film, projector beamsplitting film, LED lamp reflective film
  • Laser Technology: Laser resonator high reflection coating, laser processing head high temperature resistant film
  • Functional Glass: Architectural Low-E film, car sunscreen film, optical filter
  • Other Fields: Anti-radiation film for aerospace remote sensing lenses, anti-fog film for medical endoscopes
Advanced Capabilities
Equipped with quartz crystal or optical film thickness control instrument for automatic and precise film thickness control.
Ion bombardment device purifies substrate surfaces for superior adhesion between film layers and substrates.
Large crucible electron gun ensures smooth film material surfaces and even distribution throughout evaporation.
Programmable controller (PLC) with touch screen (HMI) interface enables easy operation and manual/full automatic control switching.
