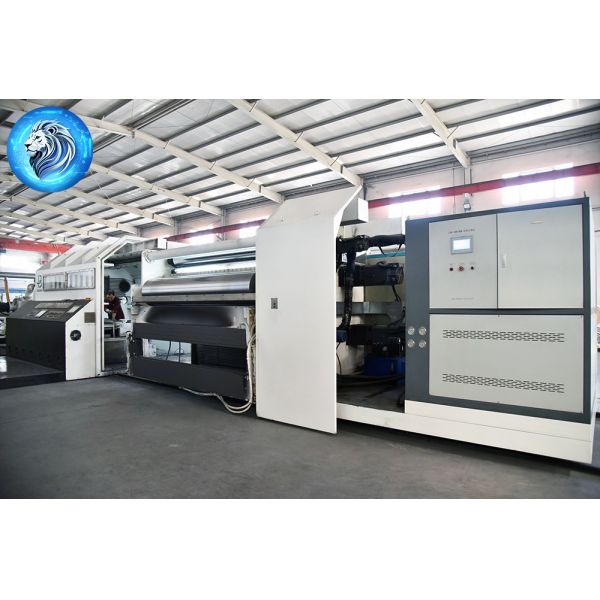

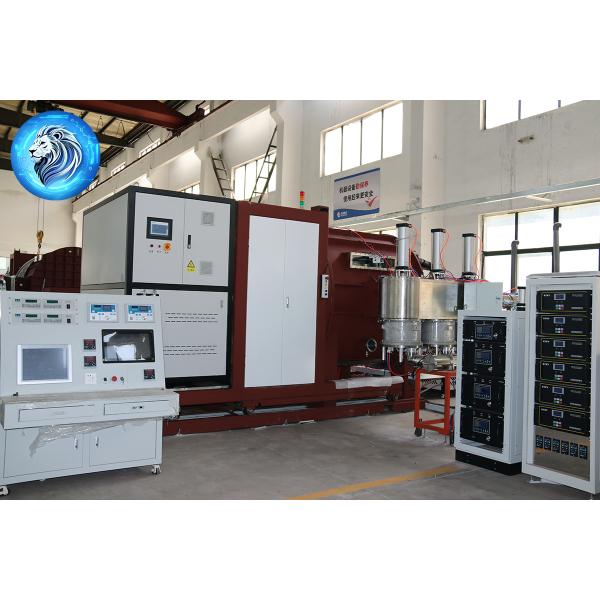

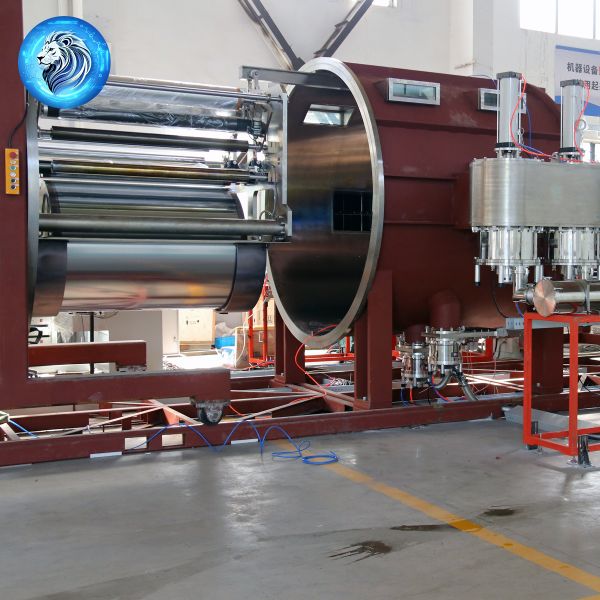

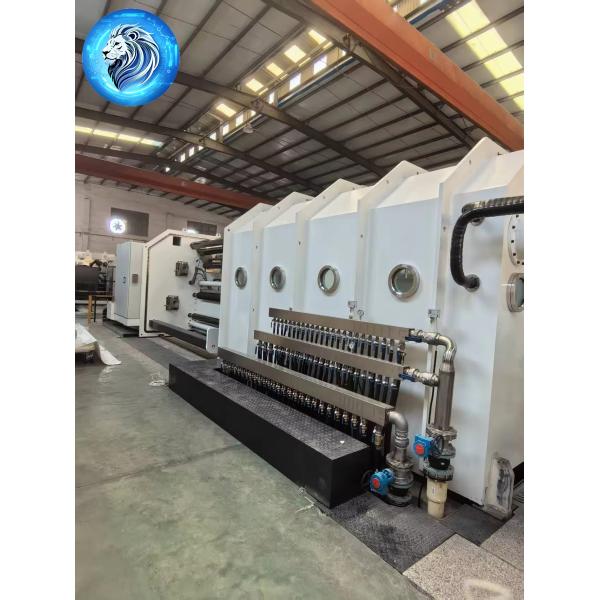

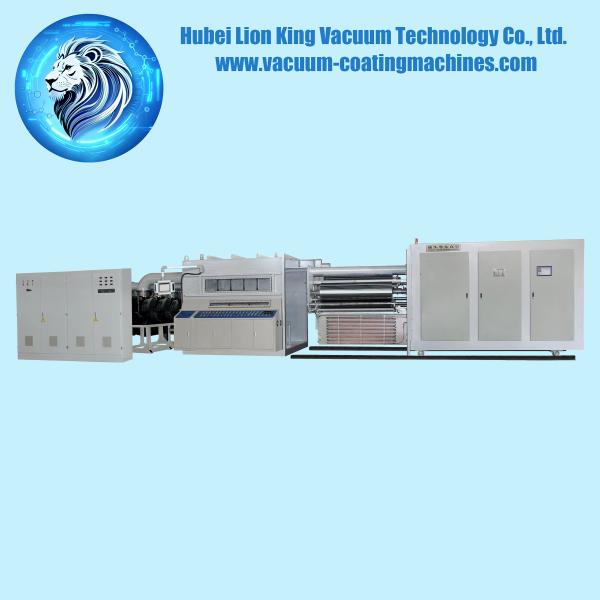

Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film
Specifications
Place of Origin :
Guangdong
MOQ :
1
Brand Name :
Lion King
Certification :
CE
Delivery Time :
20
Coating Uniformity :
±1%
Coating Thickness :
0.1-1mm
Coating Monitoring System :
Real-time
Coating Pressure :
Vacuum
Coating Method :
Roll to Roll
Coating Temperature :
Adjustable
Coating Speed :
Up to 100m/min
Coating Control System :
PLC
Coating Type :
Vacuum
Coating Size :
Customizable
Application :
Coating
Coating Environment :
Controlled
Voltage :
380v three phase 50-60HZ
Dimension :
25000mm*2500mm*1500mm
Drying Method :
Hot Air, Infrared, UV
Model :
JZ-1800#
Substrate Material :
Film, Paper, Fabric
Power Supply :
AC 380V, 50Hz
Power :
18KW*3
Coating Material :
Liquid, Paste, Powder
Working Speed :
15-20m/min
Number Of Machines :
1
Colour Mode :
white and yellow
Condition :
New
Painting Speed :
15-25m/min
Unwinding Method :
Single Station, Double Station
Working Width :
1800mm
Heating Method :
Electric, Gas, Steam
Rewinding Method :
Single Station, Double Station
Warranty :
1 year
After-Sales Service :
Engineers available to service machinery overseas
Description
It realizes one-time double-sided copper film plating on the surface of PET/PP plastic films with a thickness of 3.0-4.5μm and a width of 600-1650mm, forming a "PVD copper - polymer support layer - PVD copper" sandwich structure. The equipment process speed is 0.5-30m/min.

Ultra-thin composite copper foil is a new type of negative electrode material for lithium battery current collectors. Compared with traditional electrolytic copper foil, composite copper foil has the advantages of low cost, high safety and high energy density. Lithium batteries are developing towards higher energy density and higher safety, while lithium battery copper foils are developing towards thinner, microporous, higher tensile strength and higher elongation.

Ultra-thin composite copper foil is a new type of lithium battery copper foil material made of the "PVD copper - polymer support layer - PVD copper" sandwich structure. A 20-70nm copper film is plated on both sides of substrates such as PET/PP with a thickness of 3-4.5µm by means of magnetron sputtering, with a sheet resistance of about 0.5-2Ω, so as to realize the metallization of the film surface. Then, the copper film is thickened to 1µm by chemical electroplating. The 6-8μm composite copper foil can replace the 4.5-9μm electrolytic copper foil.
