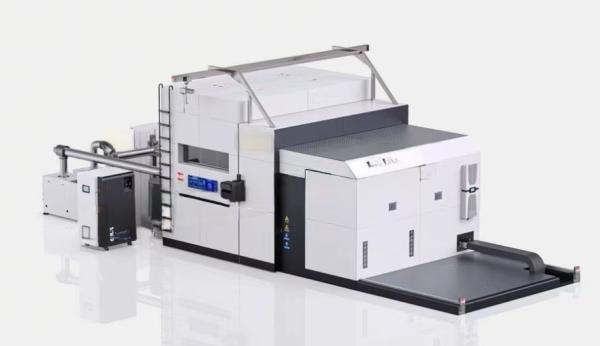

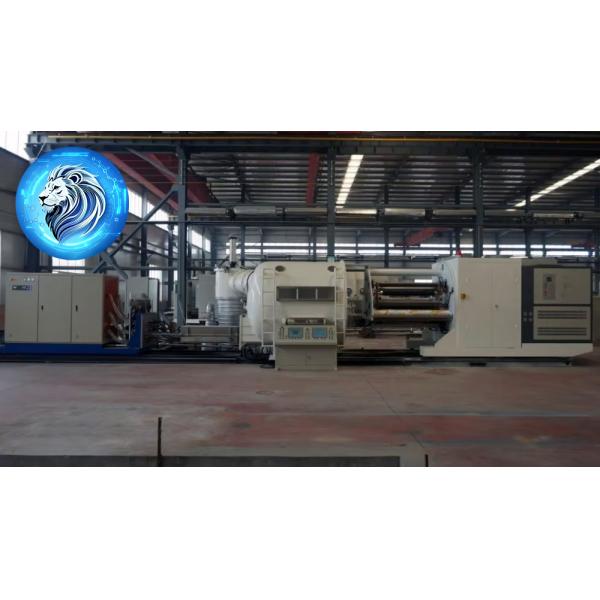

High Precision Roll To Roll Coating Machine Composite Aluminum Foil Web Coating Machine
High Precision Roll To Roll Coating Machine Composite Aluminum Foil Web Coating Machine
Specifications
Place of Origin :
Guangdong
MOQ :
1
Brand Name :
Lion King
Certification :
CE
Delivery Time :
20
Coating Uniformity :
±1%
Coating Thickness :
0.1-1mm
Coating Monitoring System :
Real-time
Coating Pressure :
Vacuum
Coating Method :
Roll to Roll
Coating Temperature :
Adjustable
Coating Speed :
Up to 100m/min
Coating Control System :
PLC
Coating Type :
Vacuum
Coating Size :
Customizable
Application :
Coating
Coating Environment :
Controlled
Voltage :
380v three phase 50-60HZ
Dimension :
25000mm*2500mm*1500mm
Drying Method :
Hot Air, Infrared, UV
Model :
JZ-1800#
Substrate Material :
Film, Paper, Fabric
Power Supply :
AC 380V, 50Hz
Power :
18KW*3
Coating Material :
Liquid, Paste, Powder
Working Speed :
15-20m/min
Number Of Machines :
1
Colour Mode :
white and yellow
Condition :
New
Painting Speed :
15-25m/min
Unwinding Method :
Single Station, Double Station
Working Width :
1800mm
Heating Method :
Electric, Gas, Steam
Rewinding Method :
Single Station, Double Station
Warranty :
1 year
After-Sales Service :
Engineers available to service machinery overseas
Description

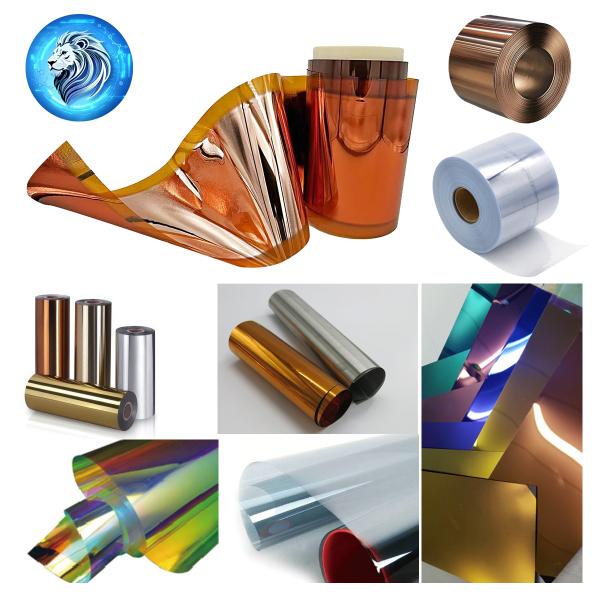

Equipment in this series adopts evaporation technology to deposit a 1μm aluminum film on both sides of 4.5-8.0μm substrates such as PET/PP, achieving film surface metallization and forming a "PVD aluminum - polymer support layer - PVD aluminum" sandwich structure. It overcomes the difficulty of large-scale and rapid evaporation deposition of thick aluminum films.

Compared with the traditional aluminum foil rolling process, the preparation process of composite aluminum foil is more challenging. With PVD evaporation as the core process, it melts metal materials at high temperature and deposits aluminum films on both sides of PET/PP plastic films, endowing both sides with conductivity. Composite aluminum foil does not require wet processes such as chemical electroplating, and double-sided aluminum films can be completed in one go only through dry processes.
