Evaporative Winding Coating Equipment with Customizable Coating Size High Vacuum Level and Touch Screen Operation
Evaporative Winding Coating Equipment with Customizable Coating Size High Vacuum Level and Touch Screen Operation
Evaporative Winding Coating Equipment with Customizable Coating Size High Vacuum Level and Touch Screen Operation
Evaporative Winding Coating Equipment with Customizable Coating Size High Vacuum Level and Touch Screen Operation
Specifications
Brand Name :
Zhongda
Certification :
CE
Place of Origin :
Zhaoqing, Guangdong
MOQ :
1
Delivery Time :
45-60 work days
Guarantee Period :
1 Year
Coating Thickness :
0.1-5 microns
Operation Way :
Touch Screen
Vacuum Chamber Material :
Carbon Steel Or Stainless Steel
Coating Application :
Decorative, Functional, Protective
Coating Transparency :
High
Vacuum Level :
High Vacuum
Coating Substrate :
Metal, Glass, Ceramic, Plastic
Coating Power Supply :
DC/RF/AC
Working Theory :
Thermal Evaporation
Chamber Size :
Custom Made
Coating Size :
Customizable
Description

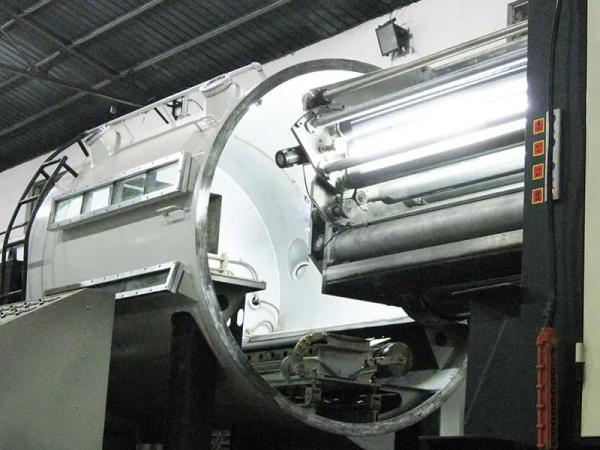

Evaporative Winding Coating Equipment
Evaporative winding coating equipment is an efficient continuous evaporative coating system designed for rapid mass production. Utilizing a continuous wire feeding method, the deposition process is achieved by heating and evaporating coating material through a crucible using resistance heating evaporation.
This equipment features simple operation, high production efficiency, and large production capacity. Available in multiple models and specifications, with substrate width compatibility ranging from 600mm to 3850mm.
Compatible Flexible Substrates
Supports a comprehensive range of flexible materials with tailored compatibility:
  • Organic Films: PET (heat-resistant, high mechanical strength), BOPP (high transparency, low moisture absorption), CPP (good heat-sealability), PEN (excellent chemical resistance), PC (impact-resistant), PE (flexible, corrosion-resistant)
  • Fiber Fabrics: Woven and non-woven fabrics for decorative or functional textile coating applications
  • Paper Rolls: Industrial-grade paper for packaging, printing, and specialty surface treatments
Depositable Film Layers & Core Functions
Two major film types with targeted performance characteristics:
Film Type Materials & Applications
Metal Films Aluminum (light shielding, oxygen barrier, metallic luster), Copper (electrical conductivity), Tin (corrosion resistance, low toxicity)
Compound Functional Film Zinc Sulfide (ZnS) for high barrier properties against water vapor/oxygen, and enhanced optical transparency
Key Application Fields
Packaging Industry
  • Food, pharmaceutical, and food packaging with extended shelf life via oxygen/water vapor barrier
  • Beverage and bottle labels delivering metallic visual effects for brand differentiation
Anti-Counterfeiting & Printing
  • Laser anti-counterfeiting with micro-patterned coating for verification security
  • Hot stamping foils for premium packaging, certificates, and textiles
  • Gold/silver thread manufacturing for decorative applications in textiles, gifts, and packaging
Functional Film Sector
  • Barrier films for high-performance packaging in electronics, medical devices, and perishables
  • Capacitor films with conductive metal layers for thin-film capacitor manufacturing
  • Lithium battery films coating separator films and electrode current collectors to improve battery safety and energy storage efficiency
