Hybrid Head Fiber Semiconductor Laser Welding Machine Adjustment Free
Hybrid Head Fiber Semiconductor Laser Welding Machine Adjustment Free
Hybrid Head Fiber Semiconductor Laser Welding Machine Adjustment Free
Hybrid Head Fiber Semiconductor Laser Welding Machine Adjustment Free
Specifications
Laser Wavelength :
Fiber laser:1080nm Semiconductor laser:915nm
Fiber Optic Interface :
Standard QBH
Power Input :
AC380V±10%,50/60Hz
Aiming and Positioning :
Red light indication (welding head CCD positioning)
Welding method :
Laser Welding
Cooling method :
Water Cooling
Application :
Battery sealing, battery poles, seal pins
Brand Name :
UW
Certification :
CE ISO
MOQ :
1set
Price :
Negotiation
Packaging Details :
carton box/wooden box
Payment Terms :
T/T
Description
The hybrid welding laser adopts fiber laser and semiconductor laser as the mixed light sources. The two lasers work
together on the workpiece through the hybrid welding head, and the collaborative control of the two lasers is realized
through the CPU core control system.
Highlights
• The comprehensive electro-optical efficiency is more than 30%, which greatly saves power consumption and operating
costs;
• Competent in harsh working environment, with high tolerance to dust, shock, vibration, humidity and temperature;
• Excellent welding quality;
• Extremely high welding speed;
• Adjustment-free, maintenance-free, high stability;
• High electro-optical efficiency
Applications
Battery sealing, battery poles, seal pins, explosion-proof valve, module welding,and so on in the battery industry；
Advertising frames, TV frames, and so on in the hardware industry；
In the sensor industry, etc.
Technical Parameters
Parameter Name
Parameter Value

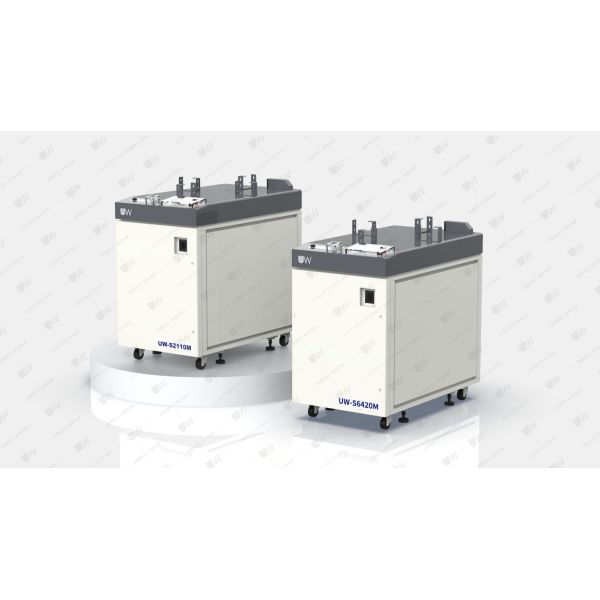

Laser Model
UW-S2110M
UW-S3210M
UW-S4220M
UW-S4310M
UW-S5320M
UW-S6420M
Output Power
Fiber: 1000W
Semiconductor: 1000W
Fiber :2000W
Semiconductor :1000W
Fiber :2000W
Semiconductor :2000W
Fiber :3000W
Semiconductor :1000W
Fiber :3000W
Semiconductor :2000W
Fiber :4000W
Fiber :4000W
Semiconductor :2000W
Power Stability
＜±2%
Laser Wavelength
Fiber laser:1080nm Semiconductor laser:915nm
Fiber Optic Interface
Standard QBH
Fiber Core Diameter
Fiber laser:50/100um selectable Semiconductor laser: 400um
Fiber Length
20 meters is standard
Aiming and
Positioning
Red light indication (welding head CCD positioning)
Power Input
AC380V±10%,50/60Hz
Operating Mode
Quasi-continuous pulse / Continuous/Modulation
Power Consumption
＜ 10KW
＜ 13KW
＜ 16KW
＜ 17KW
＜ 20KW
＜ 22KW
Cooling Capacity
Requirements
5KW
7.5KW
12KW
15KW
17KW
Cooling mode
Water-cooling
Dimensions (L*W*H)
1370mm*700mm*1200mm
Weight (KG)
362(Kg)
379(Kg)
390(Kg)
406(Kg)
426(Kg)
446(Kg)
Compatible Output
Heads
Dual Wavelength Composite Laser Output Head, Composite Laser Oscillating Head
