Industrial Blue Laser Machine 455nm Laser Soldering Equipment Water Cooling
Industrial Blue Laser Machine 455nm Laser Soldering Equipment Water Cooling
Industrial Blue Laser Machine 455nm Laser Soldering Equipment Water Cooling
Industrial Blue Laser Machine 455nm Laser Soldering Equipment Water Cooling
Specifications
Laser Wavelength :
455nm
Energy Stability :
≤ ±3%
Operating Mode :
Continuous
Laser type :
Blue Laser
Coolingmethod :
Water Cooling
Compatible Output Heads :
Blue Laser Output Head, Shaping Spot Output Head
Brand Name :
UW
Certification :
CE ISO
MOQ :
1set
Price :
Negotiation
Packaging Details :
carton box/wooden box
Payment Terms :
T/T
Description

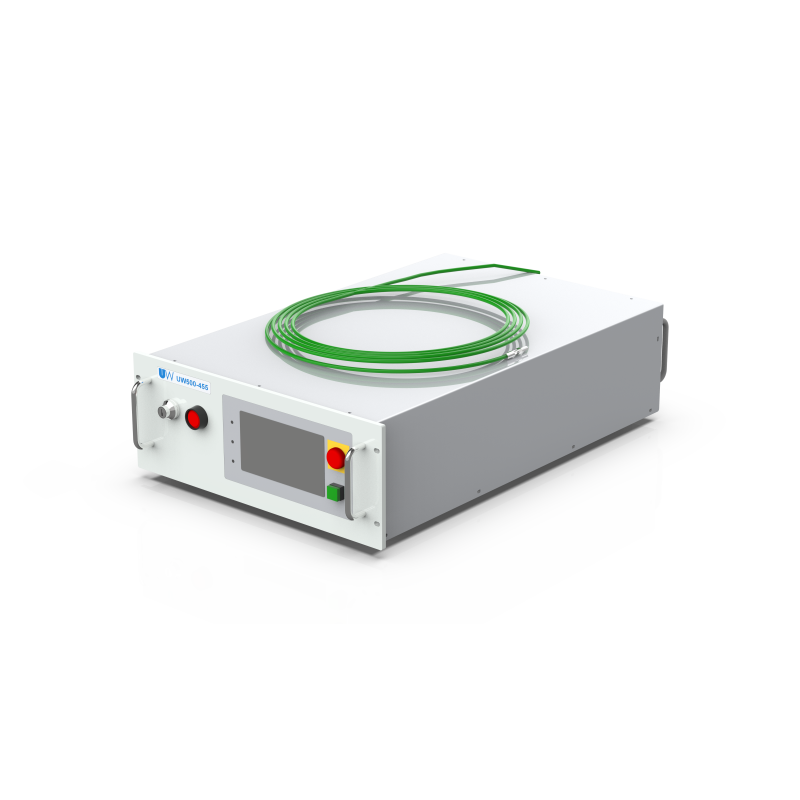

The blue laser is a low-power blue light laser specially developed for laser soldering. It is small in size and can be directly integrated into an automated workbench. Thanks to the high absorption rate of copper and gold in the blue light area, it is especially suitable for laser soldering of copper and gold pads as they can be quickly heated.
Highlights
· Copper and gold pads have a high absorption rate for blue laser light;
· With a high energy utilization rate, the heating of the pads can be completed with less energy;
· Avoid laser reflections that cause burns to the devices near the pads;
· Reduce the generation of tin beads.
Applications
· Battery sealing, battery poles, seal pins, explosion-proof valves, module welding, and so on in the battery industry;
· Advertising frames, TV frames, and so on in the hardware industry;
· In the sensor industry, etc.
Technical Parameters
Parameter Name
Parameter Value

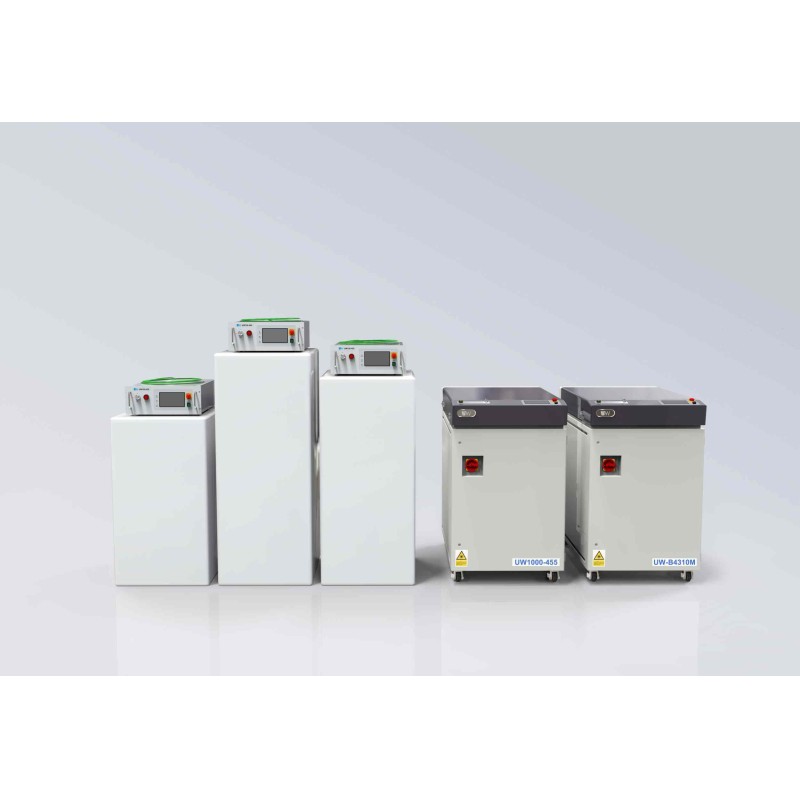

Model
UW100-455
UW1000-455
UW2000-455
Output Power
 100 1000 2000
Laser Wavelength
455nm
Energy Stability
≤ ±3%
Fiber Interface
D80 adaptation
Fiber Core Diameter
400um
600um
800um
Fiber Length
Standard 10 meters
Aiming Positioning
Blue Light Positioning
Power Input
AC220V ±10% 50Hz
AC380V ± 10%,50Hz
Whole Machine Power Consumption
＜ 1.3KW
＜ 12KW
＜ 16KW
Operating Mode
Continuous
Cooling Capacity Requirement
1kW
10kW
12kW
Cooling Method
Water cooling
Dimensions (L*W*H)
777L*483W*198H(mm)
1670L*780W*1289H(mm)
Weight (KG)
40KG
300KG
310KG
Compatible Output Heads
Blue Laser Output Head, Shaping Spot Output Head
