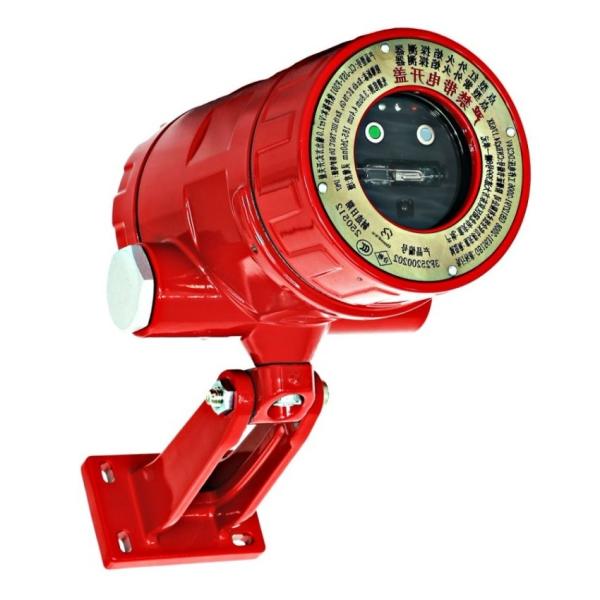

Ex Point Type UV IR Flame Detector Multi Spectral Extremely Low False Alarm Rate
Ex Point Type UV IR Flame Detector Multi Spectral Extremely Low False Alarm Rate
Specifications
Brand Name :
BOEN FIRE
Model Number :
JSY-F301/A
Certification :
ISO9001、CCCF、CNEX、SIL2
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
15-20 days
Spectrum Range :
3.8um 4.4um 185-260nm
Response Time :
N-heptane ≤15s
Cone of View :
120°
GBS :
GB12791、GB15631、GB3836
Explosion Proof :
Ex db ⅡC T6 Gb、Ex tb IIIC T80℃ Db
IP Proof Level :
IP67
Rated voltage :
24V DC (18V DC~36V DC)
Operating current :
≤20mA
Reset mode :
Reset by power-off or reset by simulator
Color :
Silver, Red (Customizable)
Weight :
1.35kg (2.976lbs)
Description

Ex Point Type UV IR Flame Detector Extremely Low False Alarm Rate

Ex Point Type UV IR Flame Detector Multi Spectral Extremely Low False Alarm Rate

1.Product Overview

This flame detector1 is an explosion-proof multi-spectral flame detector, suitable for various fuel types and can provide early warnings.

This detector is equipped with two infrared wavelength sensors, an ultraviolet sensor, and a sapphire optical filter. It has a very high response characteristics to a variety of fuel types of combustion flame,Tthe detector for the collection of multiple signal data, through the unique time domain, frequency domain signal processing and Fourier fuzzy algorithm, combined with interference source logic comprehensive judgment processing, to eliminate the interference of ambient light, thermal body radiation, can maximize the suppression of false alarm. Therefore, It is well suitable for applications in related environments such as indoor and outdoor open air where multiple false alarm sources exist.The special fire signal processing algorithm and multi-sensor technology have greatly improved the sensitivity of the detector, enabling it to operate in harsh industrial environments such as high/low temperatures and high humidity.

2.Product Features

(1)Multiple judgments based on Multi-Frequency infrared, ultraviolet, time domain, and frequency domain.
(2)Sensitivity : be set on-site.
(3)Suitable for various fuel types.
(4)Self - learning function.
(5)Resistance to electromagnetic interference.
(6)False alarm prevention and solar blind feature.
(7)Patented and industrialized exterior design.
(8)Unique indication for field - of - view angle adjustment.
(9)Dustproof, explosion-proof, anti-corrosion and waterproof.
(10)Complies with the national standard GB 15631 - 2008 "Special Fire Detectors" and GB 12791 - 2006 "Point - type Ultraviolet Flame Detectors".

3. Application

(1)Brewing industry and wine storage in warehouses
(2)Spray painting workshops
(3)Natural gas exploration and production enterprises
(4)Pharmaceutical industry
(5)Paint - manufacturing, storage, and transportation
(6)Chemicals - production, storage, and transportation
(7)Power stations - pump areas, machine rooms, and unattended areas
(8)Petrochemical products - production, storage, and transportation
(9)Large factory warehouses - storage of flammable materials
(10)Printing - solvent handling, flattening, and drying processes
(11)Chip production workshops

4.Main Technical Data

Nominal Voltage 24V DC (18V DC~36V DC)
Operating current ≤20 mA
Alarm current ≤25 mA / DC 24 V
Ambient temperature -10~+55 °C
Ambient humidity ≤95% relative humidity without condensation
Spectral response 3.8um 4.4um 185-260nm
Fire response time N-heptane ≤15s
Adjustable sensitivity Level I (The default level is Level I at the factory and it is locked.)
Detection angle Vertical viewing angle: 90°; Horizontal viewing angle: 120°
Protection level IP67
Output mode Standard relay output (fault, fire alarm), 4-20mA
Relay contact capacity 1A/AC 125V 2A/DC 30V
Material Cast aluminum (stainless steel is optional)
Implementation standard GB 15631-2008 GB 12791-2006
Dimensions φ100mm/H165mm(φ3.94in/H6.50in)
Weight 1.35kg (2.976lbs)
Color Silver, Red (Customizable)
Cable outlet thread Standard G3/4, two pieces
Explosion-proof mark Ex db ⅡC T6 Gb,Ex tb IIIC T80℃ Db
Detection distance Fuel Fire source size Details
N-Heptane 0.3mx0.3m(lft.x1ft.) 50m(164ft.)
Petrol 0.3mx0.3m(1ft.x 1ft.) 40m(131ft.)
Diesel fuel 0.3mx0.3m(1ft.x lft.) 35m(114ft.)
Kerosene 0.3mx0.3m(lft.x1ft.) 35m(114ft.)
Ethanol 0.3mx0.3m(lft.x lft.) 30m(98ft.)
Methane 0.5mx0.2m(1.7ft.x0.7ft.) 30m (98ft.)
Sheet of paper 0.3mx0.3m(1ft.x 1ft.) 25m(82ft.)

Ex Point Type UV IR Flame Detector Multi Spectral Extremely Low False Alarm Rate

5.Indicator Lights
The JSY-F301 flame detector is equipped with three status indicator lights, which are used to indicate its working status.

Status Indicator light
Operation Indicator Light (Green) Always on
Alarm Confirmation Indicator Light (Red) It blinks for early warning and is always on for an alarm.
Fault Indicator Light (Blue) When a fault occurs, the blue light is always on (and the red light goes out). When the device is powered on, it blinks to show the self-checking and self-adaptive status.

6.Complete Product Set

Ex Point Type UV IR Flame Detector Multi Spectral Extremely Low False Alarm Rate

Name (of a thing) Quantities Unit (of measure)
JSY-F301
Point-type Infrared Flame Detector
Point-type Ultraviolet Flame Detector		 1 piece
Instruction Manual 1 copy
Explosion-proof Certificate 1 copy
Mounting Bracket 1 item
Connecting Piece 1 item
M8 Nut 1 piece
M8x45 Hexagon Socket Head Cap Screw 1 piece
M8x25 Hexagon Socket Head Cap Screw 1 piece
Flame Detection Remote Controller YC-F1 1 1 piece per batch
