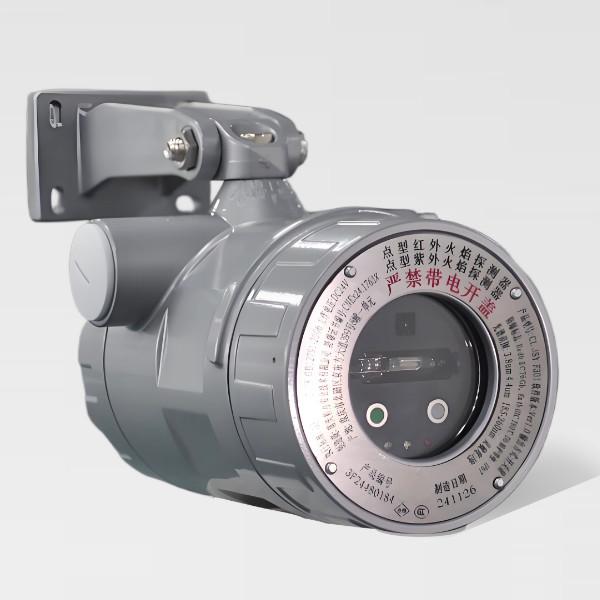

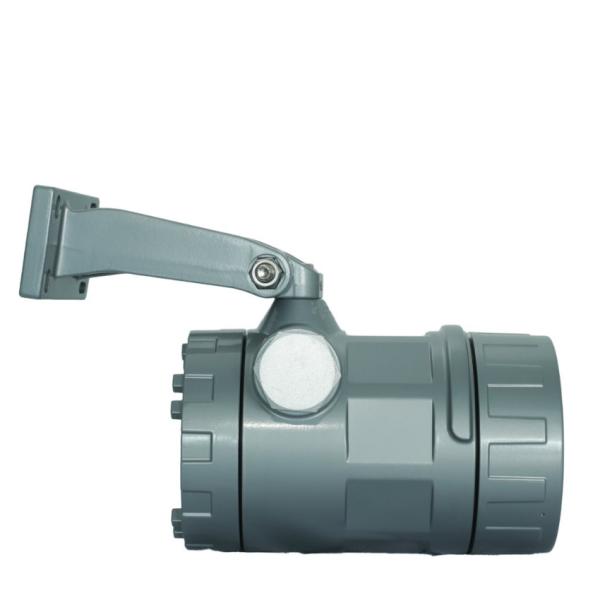

Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles
Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles
Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles
Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles
Specifications
Brand Name :
CAILEE
Model Number :
JSY-F301-B
Certification :
ISO9001、CCCF、CNEX、SIL2
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
15-20 days
Spectrum Range :
3.8um 4.4 um 185-260nm
Response Time :
N-heptane ≤15s
Cone of View :
120°
Explosion Proof :
Ex db ⅡC T6 Gb、Ex tb IIIC T80℃ Db
IP Proof Level :
IP67
Rated voltage :
24V DC (18V DC~36V DC)
Reset mode :
Reset by power-off or reset by simulator
Description

Ex UV IR Flame Detector Brewing Industry Multiple Combustibles

Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles

1.Product Overview

This explosion-proof multi-spectral flame detector adopts red-ultraviolet hybrid detection technology, integrating 2 infrared wavelength sensors (IR1/IR2) and 1 ultraviolet sensor (UV), and is equipped with a sapphire optical filter.​

​

Through cross-validation of data from the three sensors, it achieves nanosecond-level response to early flame signals, with detection accuracy increased by over 70% compared to single-spectral detectors. It is equipped with a time-domain and frequency-domain dual-signal processing system and Fourier fuzzy algorithm to intelligently filter interference such as ambient light and thermal body radiation, reducing the false alarm rate by 90% compared to traditional products. Relying on multi-sensor collaboration and adaptive algorithms, it can operate stably in extreme environments such as -10°C to 55°C and humidity ≤95% RH without condensation, suitable for early fire warning and safety protection in multiple scenarios such as petrochemical plants, nuclear power plants, and chip factories.​

2.Product Features

(1) Multi-dimensional smart sensing: 3D flame detection realized through the fusion of red and ultraviolet spectra.​
(2) Dynamic sensitivity adjustment: Thresholds are regulated based on environmental conditions.​
(3) Comprehensive fuel detection capability: Capable of monitoring hydrocarbons, smokeless liquids, and other substances.​
(4) Self-learning anti-interference function: Builds an iterative feature library through data training to resist interference.​
(5) Industrial-grade anti-interference performance: Adopts electromagnetic shielding and spectral filtering technologies.​
(6) Triple-redundancy false alarm prevention: Conducts cross-validation using spectral, timing, and spatial data to avoid false alarms.​
(7) Patented explosion-proof structure: Features a compact design with certified explosion-proof performance.​

3. Application

(1) Wine storage in the brewing industry​
(2) Chemical production/storage/transportation scenarios​
(3) Natural gas exploration and production sites​
(4) Pharmaceutical industry​
(5) Flammable material warehouses in large factories

4. Main Technical Data

Operating voltage DC 18-32V
Operating current ≤20mA
Alarm current ≤25mA / DC 24V
Ambient temperature -10~+55 °C
Ambient humidity ≤95% relative humidity without condensation
Spectral response 3.8um 4.4um 185-260nm
Fire response time N-heptane ≤15s
Adjustable sensitivity Level I (The default level is Level I at the factory and it is locked.)
Detection angle Vertical viewing angle: 90°; Horizontal viewing angle: 120°
Protection level IP67
Output mode Standard relay output (fault, fire alarm)
Relay contact capacity 1A/AC 125V 2A/DC 30V
Material Cast aluminum (stainless steel is optional)
Implementation standard GB 15631-2008 GB 12791-2006
Dimensions φ100mm / H165mm(φ3.94in / H6.50in)
Weight 1.35kg (2.976lbs)
Color Metallic silver
Cable outlet thread Standard G3/4, two pieces
Explosion-proof mark Ex db ⅡC T6 Gb,Ex tb IIIC T80℃ Db
Detection distance Fuel Fire source size Details
N-Heptane 0.3mx0.3m(lft.x1ft.) 50m(164ft.)
Petrol 0.3mx0.3m(1ft.x 1ft.) 40m(131ft.)
Diesel fuel 0.3mx0.3m(1ft.x lft.) 35m(114ft.)
Kerosene 0.3mx0.3m(lft.x1ft.) 35m(114ft.)
Ethanol 0.3mx0.3m(lft.x lft.) 30m(98ft.)
Methane 0.5mx0.2m(1.7ft.x0.7ft.) 30m (98ft.)
Sheet of paper 0.3mx0.3m(1ft.x 1ft.) 25m(82ft.)

Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles

5. Indicator Lights
The JSY-F301-B flame detector is equipped with three status indicator lights, which are used to indicate its working status.

Status Indicator light
Operation Indicator Light (Green) Always on
Alarm Confirmation Indicator Light (Red) It blinks for early warning and is always on for an alarm.
Fault Indicator Light (Blue) When a fault occurs, the blue light is always on (and the red light goes out). When the device is powered on, it blinks to show the self-checking and self-adaptive status.

6. Complete Product Set

Ex UV IR Flame Detector IP67 for Brewing Industry Multiple Combustibles

Name Quantities Unit of measure
JSY-F301-B
Point-type Infrared Flame Detector
Point-type Ultraviolet Flame Detector		 1 piece
Instruction Manual 1 copy
Explosion-proof Certificate 1 copy
Mounting Bracket 1 item
Fastenings 1 item
M8 Nut 1 piece
M8x45 Hexagon Socket Head Cap Screw 1 piece
M8x25 Hexagon Socket Head Cap Screw 1 piece
Flame Detection Remote Controller YC-F1 1 piece per batch
