CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
CDI-210W Portable Infrared Thermal Imaging Telescope
Specifications
Brand Name :
CDI
Model Number :
CDI-210W
Certification :
UL，CMC，ETL，RoHS，GS，CE，3C
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
15-20 days
Detector Type :
Uncooled infrared detector
Core Resolution :
Infrared 256×192, Screen 640×400 (0.23-inch OLED)
Lens Configuration :
10mm fixed focus, FOV 17.5°H×13.2°V
Key Functions :
1x-8x digital zoom + hot spot tracking + laser pointer
Storage :
Built-in 16GB, supports JPG/MP4 formats
Battery Life :
4000mAh battery, working time ＞8h
Environmental Adaptability :
IP67 protection + 2m drop resistance, -10℃~50℃ operating temperature
Connectivity :
Compatible with IOS/Android APP, supports WiFi image transmission & live streaming
Description

CDI-210W Portable Infrared Thermal Imaging Telescope


1. Product Overview


The CDI-210W is a lightweight and portable outdoor observation product that integrates infrared thermal imaging and long-distance detection. It combines the features of being lightweight, portable, easy to operate, and durable. It also features a clear display of 256×192 infrared pixels, along with probability measurement range + laser indication + hotspot tracking. This helps you quickly and accurately locate the target. Besides real-time observation, it can also take photos and videos for storage, meeting your needs for recording the observation process. It can also be connected to an external screen for video output and connected to a mobile phone via Wi-Fi for output of the observation. The usage methods are diverse, making observation no longer "single" and meeting the requirements of usage. It is a great "tool" for outdoor observation, camping, search, security, sea travel, etc.


2. Product Features


(1) 0.23-inch OLED Screen (640×400)

(2) Infrared Resolution: 256×192

(3) Lens Focal Length: 10mm

(4) Frame Rate: 50Hz

(5) NETD: <35mk

(6) Photo & Video Recording

(7) Electronic Zoom: 1X, 2X, 4X, 8X

(8) Adjustable Frame Rate + Laser Pointer + Hot Spot Tracking

(9) Support External Screen Output and Real-time Video Transmission via Mobile Phone APP

(10) IP67 Protection Rating, 2-Meter Drop Resistance


3. Main Technical Data


Item Details Item Details
Model CDI-210W Model CDI-210W
Detector Type Uncooled Infrared Detector Adjustable Frame Rate √
Infrared Resolution 256 x 192 Storage Internal Storage 16GB
Infrared Response Band 8~14μm Data Interface Type-C USB
Pixel Size 12μm Photo/Video Recording √
Frame Rate 50Hz Screen Brightness Adjustment √
Thermal Sensitivity/NETD <35mk Language Simplified Chinese, English
Focus Mode Fixed Focus Auto Power Off Off, 5min, 15min, 50min
Lens Size 11.2mm WiFi Photo Download √
Thermal Imaging Lens Focal Length 10mm WiFi Video Live Stream √
Optical Axis F1.0 Video Output √
Field of View 17.5°H x 13.2°V Mobile App IOS, Android
Spatial Resolution/IFOV 1.2mrad Battery Type 3.65V/4000mAh 21700 Rechargeable Battery
Eyepiece Exit Pupil Distance 20mm Battery Working Time >8h
Eyepiece Diopter -4D~+5D Charging System Type-C Charging
Display Screen 0.23-inch OLED Screen Charging Time <4h
Display Resolution 640 x 400 Static Current <200μA (Battery Port After Shutdown)
Color Palette Iron Red, Rainbow, Red Hot, Black Hot, White Hot Operating Current <500mA (Default Working State)
Image Mode Thermal Imaging, PIP Charging Voltage/Current 5V/2A
Digital Zoom 1x, 2x, 4x, 8x Operating Temperature -10℃~50℃
Image Format/Video Format JPG/MP4 Storage Temperature -20℃~60℃
Hot Spot √ Operating Humidity 10%~95%RH, Non-condensing
Hot Spot Tracking √ Protection Rating/Drop Protection IP67/2m
Brightness Adjustment √ Tripod Mount UNC ½"-20
Contrast Adjustment √ Dimensions (L×W×H) 63.8×62×185.4mm
Calibration Mode Background Calibration, Shutter Calibration, Auto Calibration Weight 408g

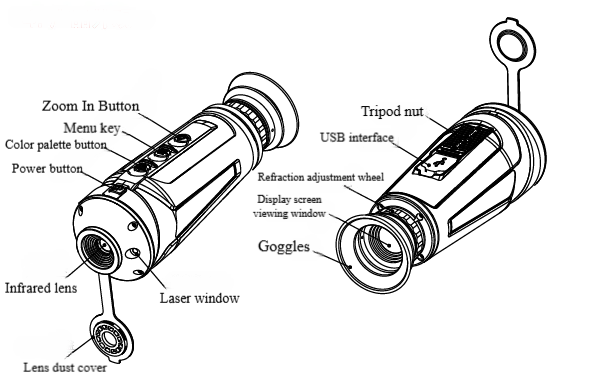

Buttons Power Button, SET Button, Up Direction Key, Down Direction Key Product Standard Accessories Host, USB Cable, Color Box, Tools, Manual, Warranty Certificate
Laser Pointer √ (Class 2 Laser, Red)


CDI-210W Portable Infrared Thermal Imaging TelescopeCDI-210W Portable Infrared Thermal Imaging Telescope
