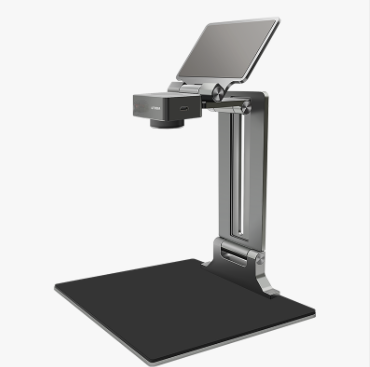

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

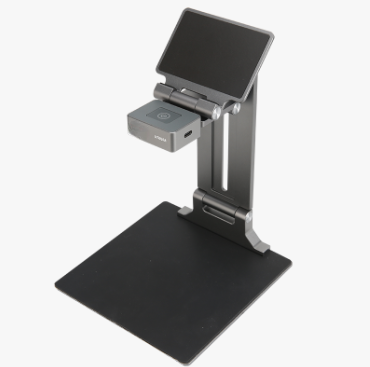

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

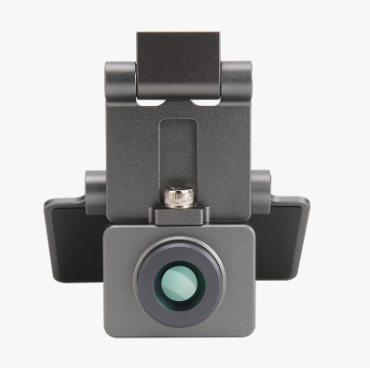

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

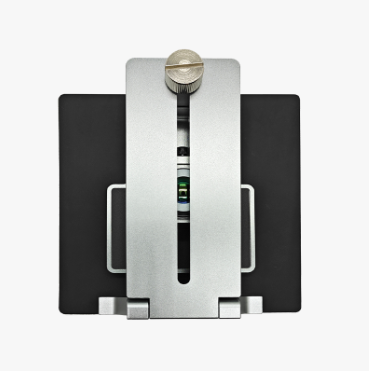

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

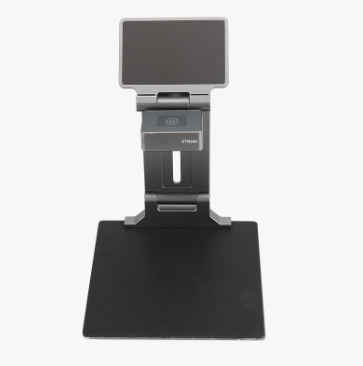

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
Specifications
Brand Name :
CDI
Model Number :
CDI-920A
Certification :
UL，CMC，ETL，RoHS，GS，CE，3C
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
15-20 days
Detector Type :
Vanadium Oxide Uncooled Infrared Focal Plane Detector
Infrared Resolution :
260×200, Thermal Sensitivity: <50mK @25℃
Temperature Range :
-15℃~600℃, Accuracy: ±2℃ or ±2% (whichever is larger)
Lens Configuration :
Macro Lens, Field of View: 56°x42°, Focusing Method: Fixed Focus
Frame Rate & Operation :
25Hz Frame Rate, Supports Photo (JPG) and Video (MP4) Recording
Core Functions :
Cold/Hot Spot Tracking, Over-Temperature Alarm, Dual-board 2D/3D Comparison
Interface & Power Supply :
USB Type-C Interface, Input Voltage: DC 5V
Compatible Systems :
Supports Android 7.0+ and Windows 10+ Systems
Description

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument


1. Product Overview


The CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument is a product that applies infrared thermal imaging technology to the field of circuit board maintenance. This product can assist engineers in quickly locating abnormal faults in circuit boards, such as short circuits and leakage, thereby improving the efficiency of research and maintenance.


2. Product Features


(1) Temperature measurement range: -15℃~600℃

(2) Infrared resolution: 260×200

(3) Equipped with a macro lens

(4) Frame rate: 25Hz

(5) Focusing method: Fixed focus

(6) Temperature curve recording + double-plate comparison/2D/3D

(7) Six adjustable color palettes (Iron Red, Rainbow, Red Hot, Black Hot, White Hot, Cold Blue)

(8) Real-time images can be photographed and recorded

(9) Central point temperature measurement, high and low temperature tracking/over-temperature alarm

(10) Supported systems: Windows (Win10 or Win11 recommended) and Android (Android 7.0 and above)


3. Main Technical Data


Model CDI-920A
Detector Type Vanadium Oxide Uncooled Infrared Focal Plane Detector
Infrared Resolution 260x200
Thermal Sensitivity (NETD) <50mK @25℃
Frame Rate 25Hz
Temperature Measurement Range -15°C ~ +600°C (5°F ~ +1112°F)
Temperature Measurement Accuracy ±2℃ or ±2%, whichever is larger
Temperature Measurement Distance 100mm - 150mm, can observe at 30mm with teleconverter lens
Device Interface USB Type C
Field of View 56°x42°
Macro Lens √
Focusing Method Fixed Focus
Input Voltage DC 5V
Storage Environment Temperature -20°C ~ 60°C
Working Environment Temperature 0°C ~ 50°C
Humidity 95% Relative Humidity
APP Software Supported
PC Software Supported
Supported Systems Android 7.0 and above, Windows 10 and above
Placement on Table Board Supported
Image Storage Format JPG
Color Palette 6 types (Iron Red, Rainbow, Red Hot, Black Hot, White Hot, Cold Blue)
Video Storage Format MP4
Cold/Hot Spot Tracking / High and Low Temperature Alarm Supported
Dual-board Product Comparison 2D/3D Switching Supported
Analysis Objects Points, Lines, Regions
Isotherm Supported

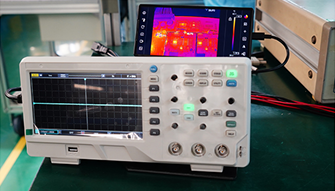

4. Application
