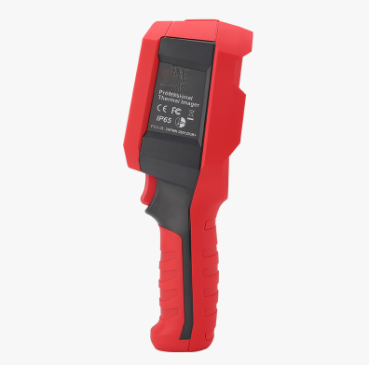

CDI-165B+ Infrared Thermal Imager

1. Product Overview

CDI-165B+ is a practical handheld infrared thermal imager that is lightweight and easy to carry, with comprehensive functions. It has a wide temperature measurement range, from -20℃ to 550℃, which can meet the needs of various application scenarios. This device features a 160×120 infrared resolution and supports super-resolution technology up to 320x240, enabling the display of high-definition infrared images. It is equipped with center-point temperature measurement, high/low temperature tracking, LED auxiliary lighting, and high/low temperature alarm functions. It also has an IP65 protection level and two-meter shock resistance feature, ensuring reliable performance under various harsh working conditions. Additionally, it is paired with professional infrared image analysis software, allowing users to conduct in-depth analysis of every detail in the later stage, and better understand and evaluate the test results.

2. Product Features

(1) Infrared Resolution: 160 x 120

(2) Frame Rate: 25Hz

(3) Temperature Measurement Range: -20℃-550℃

(4) T-Mix Fusion Version 2.0

(5) Supports 2X Super Resolution (320×240) on Device & PC

(6) Full-Screen High/Low Temperature Tracking

(7) High/Low Temperature Alerts: Visual, Buzzer, LED Flashing

(8) LED Illuminator

(9) WiFi Connection to Mobile APP

(10) PC-Side Analysis Software

(11) 4 Image Modes: Thermal Imaging, T-Mix, PIP, Visible Light

(12) 7 Color Palettes Optional

(13) Built-in 32GB Storage

(14) Adjustable Emissivity

(15) Triple Protection Design: IP65/2m Drop Resistance

(16) 1/4-inch Screw Hole at Bottom for Tripod Mounting

3. Main Technical Data

4. Applications

Pipeline temperature measurement

Motor temperature measurement

Distribution cabinet temperature screening
