Specifications
Brand Name :
OSMANUV
Model Number :
OSM-LRHG-1320T
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
35 Days
Packaging Details :
Wooden package
Layer :
Two Layers
Power :
144 Kw
Dry Automation :
High Automation
Conveying Speed :
0.3-2 m/min
Belt Qty :
2
Main Machine :
Drying Machine
Automatic Grade :
Full-automatic
Max Product Width :
1300mm
Condition :
New
Voltage :
380V 50HZ
Dry Method :
Natural Gas
Description

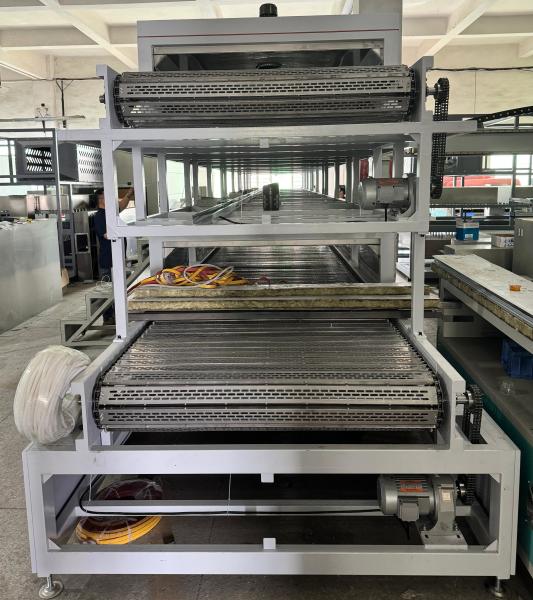

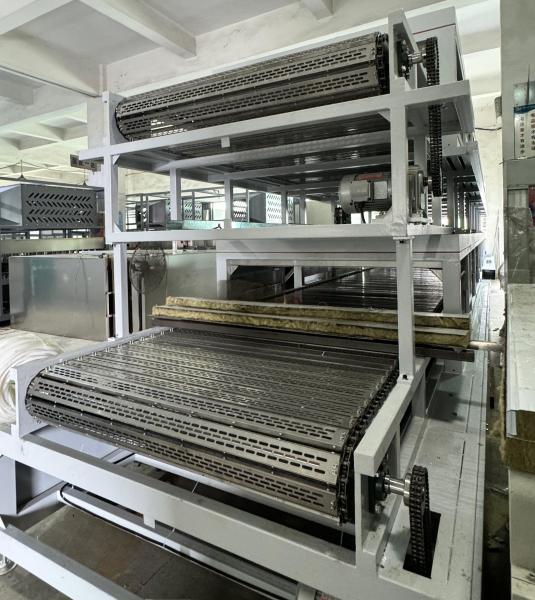

Double Layer Gas Hot Air Circulation Drying Machine For 1320 Conveyor 144 Kw
Product Overview

The Double Layer Natural Gas Drying Machine (Model: OSM-LRHG-1320T) is a state-of-the-art drying solution tailored for high-efficiency industrial coating applications. This intelligent drying line with hot air circulation and stainless steel heating tubes offers outstanding drying uniformity and speed. Designed with precision engineering, this machine delivers consistent performance in demanding environments.

Technical Specifications
Parameter Specification
Product Name Double Layer Natural Gas Drying Machine
Model OSM-LRHG-1320T
Dimensions 13500mm (L) × 1620mm (W) × 3670mm (H)
Conveyor Width 1320mm

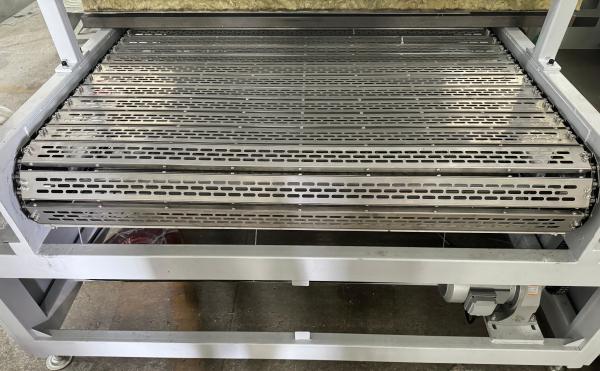

Conveyor Material 45# carbon steel + stainless steel chain + Teflon belt
Line Speed 0.3-2 m/min (adjustable via frequency converter)
Heating Method Hot air circulation + stainless steel finned heating tubes
Drying Area 11,000mm
Loading / Unloading 1000mm loading & 1500mm unloading with adjustable baffles
Air Inlet / Exhaust Adjustable with filter requirement
Capacity (Single Layer) 1800 pcs/hour
Housing Material Painted cold-rolled steel (outer) + stainless steel (inner)
Insulation Layer 100mm aluminum silicate board
Electric Control Independent electric box, Inovance inverters, Omron thermostats
Temperature Range Room temperature - 150°C (±5°C uniformity)
Total Power 144KW, 380V, 50Hz
Warranty 1 year
Applications
  • Industrial coating lines
  • Metal surface treatment
  • Wood veneer finishing
  • PCB drying and curing
  • Automotive parts finishing
Customization Options
  • Conveyor speed and width customization
  • Heating zones adjustment
  • PLC programming and interconnectivity via EtherCAT
  • Color and logo branding
Key Features
  • Dual-layer drying system for increased throughput
  • Precision temperature control with ±5℃ deviation
  • High-efficiency air circulation with frequency-controlled fans
  • Durable materials for long-term industrial operation
  • Easy maintenance side door design
Support and Services
  • 24/7 technical consultation
  • Online installation guide and video support
  • One-year warranty with spare parts included
  • Remote troubleshooting via EtherCAT protocol
Packing and Shipping
  • Export-standard wooden packaging
  • Anti-rust treatment for metal parts
  • Delivered within 30 working days after order confirmation
  • Supports FOB, CIF, and DDP terms
Frequently Asked Questions
Q: What is the drying time for coated products?
A: Typically 20 minutes at 100°C, depending on the coating formula.
Q: Can the machine be integrated into an existing production line?
A: Yes, we provide integration support through EtherCAT-compatible modules.
Q: What safety features are included?
A: Over-temperature protection, motor overload protection, emergency stop, and fuse protection.
Q: Do you provide installation services overseas?
A: Yes, we offer online installation support and can dispatch engineers on request.
Q: Is the machine energy efficient?
A: Yes, it uses high-efficiency blowers and frequency inverters to reduce energy consumption.
