Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-LRHG-1320T
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30 Days
Packaging Details :
Wooden package
Exterior Dimensions :
700mm x 700mm x 800mm
Weight :
2000kg
Voltage :
380V 50HZ
Product Named :
Natural Gas Drying Machine
Temperature Range :
Ambient +5℃ ~ 200℃
Temperature Control :
PLC
Temperature Display :
LED display
Color :
Computer white / Green
Description
Automatic Natural Gas Industrial Dryer Machine For Bamboo Paper Pulp Molding
Product Overview

Automatic Natural Gas Drying Machine For Industrial Bamboo Paper Pulp Molding OSM-ND-800

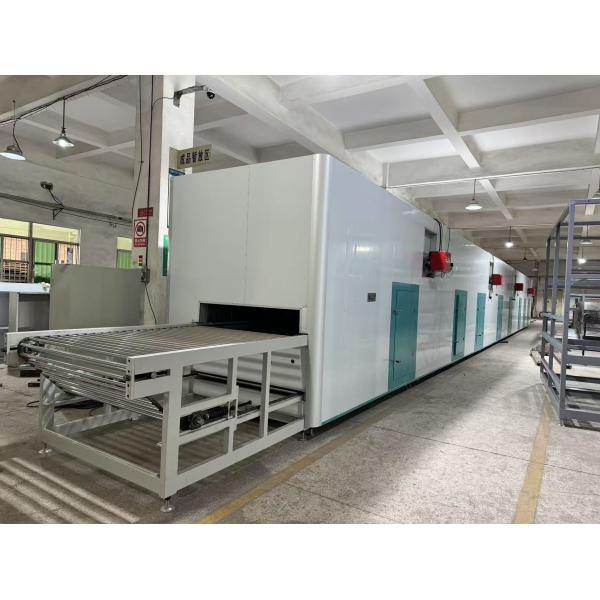

The 28M Natural Gas Drying Line (Model: OSM-LRHG-1320T) is a state-of-the-art industrial drying solution designed for high-efficiency and uniform heat distribution. With a total length of 28 meters, this drying line features a 304 stainless steel conveyor belt, advanced Italian Riello burners, and precise temperature control, making it ideal for drying textiles, coatings, and other heat-sensitive materials.

Technical Specifications
Parameter Specification
Model OSM-LRHG-1320T
Dimensions 28000mm (L) × 2400mm (W) × 3140mm (H)
Conveyor Belt Width 1320mm (SUS 304 stainless steel)
Speed Range 0.5-8 m/min (Delta inverter speed control)
Heating System 4× Riello burners (200,000 kcal/h, jet-type hot air heating)
Fuel Type Natural Gas
Power 24KW, 380V 50Hz three-phase five-wire system
Insulation 100mm thick rock wool board
Warranty 1 year for machine, 6 months for electrical components
Applications
  • Textile drying
  • Coating and paint curing
  • Food processing (low-temperature drying)
  • Paper and packaging industries
Customization Options
  • Adjustable conveyor speed and temperature zones
  • Optional additional exhaust systems for specific industries
Key Features
  • Energy-efficient Riello burners
  • High-quality electrical components for reliability
  • Overheat protection and emergency stop system
Support and Services
  • On-site installation guidance
  • 24/7 technical support
  • Spare parts availability
Packing and Shipping

Standard export wooden crate packaging. Shipping dimensions and weight provided upon request.

Frequently Asked Questions
Can the drying line use other fuels?

No, it is designed exclusively for natural gas.

Is the exhaust system included?

No, customers need to provide their own exhaust pipes and environmental equipment.
