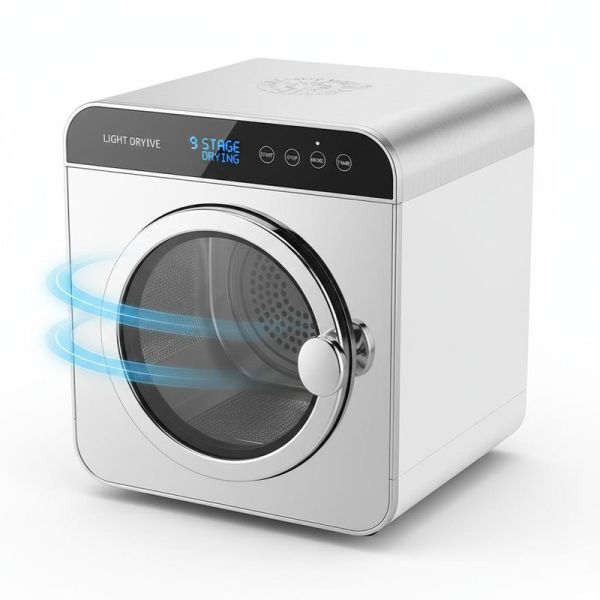

Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-WBHG-1320
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Customizable
Delivery Time :
30 Days
Packaging Details :
Wooden box
Dimensions :
17530mm×1600mm×1100mm
Box Quantity :
9 units
Ambient Temperature :
0～40℃;Relative humidity ≤80%
Usage Environment :
No corrosive gas, conductive dust or explosive gas around.
Magnetic dry cooling :
Water Cooling
Output Power :
85 kW
Description
Quick Drying Light Wave Microwave Drying Machine 9 Stage
Product Overview

Quick drying Light Wave Microwave Drying Machine 9-Stage For Pulp Molding, Soil, Expanded Soil, Chinese Medicine, Garlic

Download Technical Documentation (PDF)

The 9 Stage Microwave Drying Machine offered by Dongguan Osmanuv Machinery Equipment Co., Ltd. is a state-of-the-art solution for efficient and rapid drying processes using microwave technology.

Production Line Composition
  • Microwave Drying Machine
Technical Specifications
Parameter Value
Conveyor Belt Height 850mm, adjustable ± 50mm
Drive System Servo motor
Conveyor Belt Width 1320mm
Operation Direction Left to right
Conveyor Speed 0.3 - 10 m/min, adjustable by frequency conversion
Resonant Cavity Power ≤ 6KW at both ends
Air Inlet Yes, with anti-leakage wind shield
Baffles and Door Curtains Height-adjustable, movable baffles and half-height vertical movable door curtains
Human-Machine Interface Yes, with alarm prompts for microwave tube sections
Water Cooler Location As shown in the diagram
Applications

The 9 Stage Microwave Drying Machine is suitable for various industries requiring quick and uniform drying processes, enhancing productivity and quality in food processing, and manufacturing.

Key Features
  • Penetrating and uniform heating for quick drying
  • High-frequency microwave technology for efficient energy conversion
  • Stainless steel construction for durability and easy maintenance
  • Human-machine interface for user-friendly operation
  • Alarm prompts for operational issues
Customization Options

Tailored solutions are available to meet specific drying requirements, including adjustments to conveyor speed, power settings, and additional safety features.

Frequently Asked Questions
Q: What is the maximum power capacity of the resonant cavities?
A: The maximum power of each resonant cavity is ≤ 6KW.
Q: Can the conveyor speed be adjusted?
A: Yes, the conveyor speed is adjustable from 0.3 to 10 m/min via frequency conversion.
Q: Is the machine equipped with safety features?
A: Yes, the machine includes height-adjustable baffles, door curtains, and an alarm system for operational alerts.
