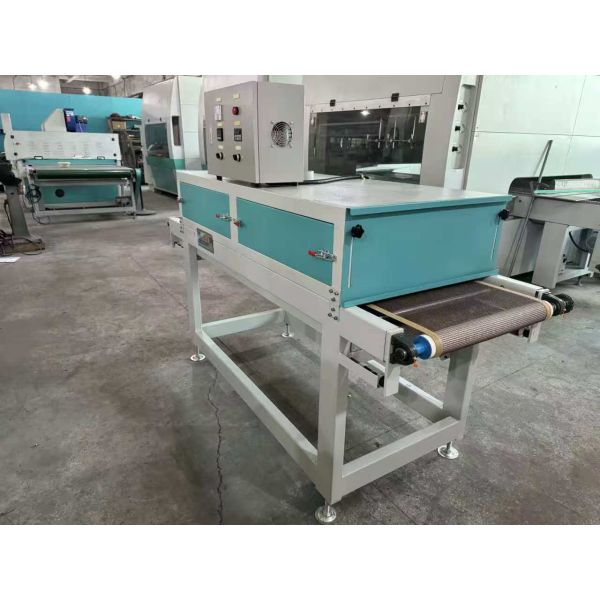

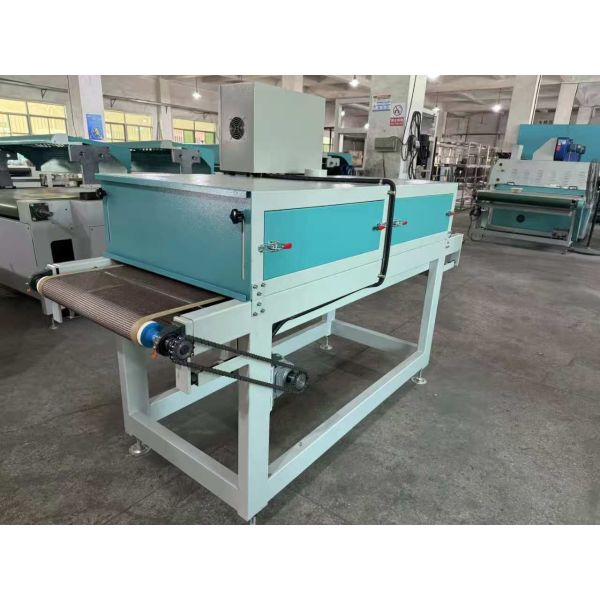

High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-IR-300
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30~40 Days
Packaging Details :
Wooden Box
Coolingsystem :
Forced Air Cooling
Heating Temperature :
0-200℃
Model No :
OSM-IR-920
Dryingtemperaturerange :
30°C - 150°C
Dryingmethod :
Infrared Radiation
Color :
Computer white
Effective Dry Width :
1320mm
Powerconsumption :
Variable (e.g., 3kW - 15kW)
Description
High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor for Molded Pulp Surface Coating
Production Line Composition

This high-speed infrared drying conveyor system is specifically engineered for continuous drying of surface-coated molded pulp products and consists of:

  • Infeed Conveyor Section: Variable-speed feeding belt with product spacing control for consistent loading and seamless integration with upstream coating equipment

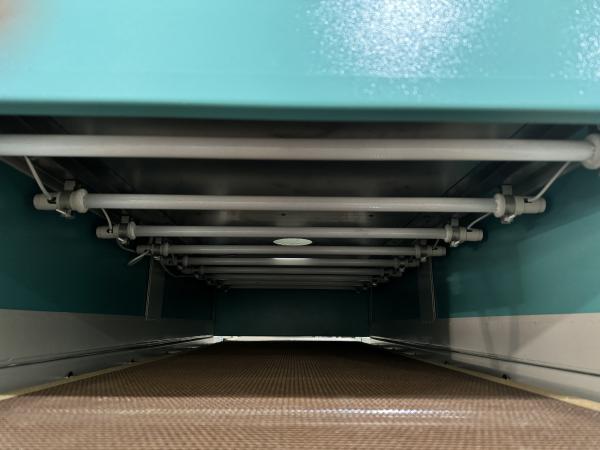

  • Main Infrared Drying Chamber: Heavy-duty tunnel structure with medium-wave infrared emitter arrays for targeted heating
  • Multi-Zone IR Heating System: Independently controlled IR emitter zones for optimized drying profile across product width
  • Hot Air Circulation Assist System: Integrated forced-air circulation to enhance heat distribution and accelerate solvent/moisture evaporation
  • Exhaust & Humidity Control System: Regulated dampers and moisture extraction fans for efficient removal of evaporated solvents and water vapor
  • Cooling Section: Ambient or forced-air cooling zone to stabilize finished surface temperature prior to product handling
  • Outfeed Conveyor Section: Variable-speed exit belt with optional stacking unit for organized collection of dried products
  • Centralized PLC Control Cabinet with HMI: Touchscreen interface for complete parameter control, recipe storage, and real-time production monitoring
  • Variable Frequency Drives (VFDs): Precision motor speed control for conveyor and fan systems
Product Description

The High-Speed Energy-Efficient 2.2M Infrared Drying Conveyor is a professional industrial drying system specifically designed for fast, uniform drying of water-based and solvent-based surface coatings on molded pulp products such as tableware (plates, bowls, lunch boxes, trays), industrial packaging inserts, food containers, and other coated pulp articles.

Utilizing medium-wave infrared heating technology, this equipment provides fast, targeted heat directly to the coated surface, accelerating moisture evaporation and coating curing with high energy efficiency. The directly absorbed infrared energy rapidly heats the coating layer without the need for heating the entire surrounding air volume in the workshop, significantly reducing energy waste and operational costs.

The integrated hot air circulation assist system enhances heat uniformity, preventing issues such as pinholing and incomplete curing. With processing speeds up to 30 m/min, this high-speed 2.2-meter-wide infrared drying conveyor is the ideal choice for medium-to-high volume pulp molding manufacturers seeking to improve throughput while maintaining consistent, high-quality surface finish and minimal energy consumption.

Technical Parameters
Parameter Specification / Description
Model Designation OSM-IR-2200-HS Series (customizable)
Effective Working Width 2200 mm (customizable from 600 mm to 2600 mm)
Total Conveyor Length 6 - 20 meters (customizable based on drying requirements)
Max Product Height (Clearance) 80 - 180 mm (adjustable)
Conveyor Type Single-tier Teflon mesh belt / stainless steel mesh chain (customizable)
Conveyor Speed 0.5 - 30 m/min (stepless adjustable via VFD)
Heating Method Medium-wave infrared quartz emitters (wavelength: 2.0 - 4.0 μm)
Temperature Range Ambient - 160°C (adjustable, PID-controlled)
Temperature Uniformity ±5°C across full working width (with hot air circulation assist)
Number of IR Heating Zones 2 - 6 independently controlled zones
IR Emitter Configuration Staggered array for uniform heat distribution
Hot Air Circulation Integrally designed forced-air system with adjustable airflow
Exhaust System Dampers with variable speed exhaust fan, humidity sensor optional
Control System PLC with 7″/10″ color touchscreen HMI, recipe management, data logging
Power Supply 380V / 50Hz / 3-phase (configurable to 220V / 60Hz or 460V / 60Hz)
Total Installed Power 55 - 120 kW (customizable based on heating zones and conveyor configuration)
Conveyor Material Teflon-coated fiberglass mesh / stainless steel 304 perforated belt
Insulation 60 - 100 mm high-density mineral wool insulation for thermal efficiency
Cooling Zone 1 - 2 meters forced-air cooling section (customizable)
Safety Features Emergency stop pull-cords, thermal overload protection, safety guards
Machine Footprint (L×W×H) Customizable based on line length; typical: 8,000×2,800×1,800 mm
Operation Height 900 mm (±20 mm adjustable)
Certifications CE certified, ISO9001:2015 compliant, UL options available
Applications

Ideal for continuous drying of surface-coated molded pulp products across multiple industrial sectors:

  • Molded Pulp Tableware: Drying of water-based and solvent-based barrier coatings on plates, bowls, lunch boxes, cups, trays, and food containers
  • Paperboard Packaging: Drying of functional and decorative coatings on paperboard containers, clamshells, boxes, and cartons
  • Industrial Pulp Molding: Drying coatings on electronics packaging inserts, automotive parts trays, and other molded fiber industrial components
  • Coated Pulp Products: Any molded pulp article requiring fast, efficient drying of surface-applied coatings
  • Furniture Panel Components: Drying of primers and topcoats on furniture boards, cabinet doors, and decorative panels (up to 2200mm width)
  • High-volume Manufacturing Environments: Continuous production lines requiring high throughput, minimal downtime, and energy-efficient operation
Customization Options
The line is fully customizable to fit specific factory space, production volume, product geometry, and coating requirements.
  • Effective Working Width: Standard 2200mm configuration fully adjustable from 600mm to 2600mm
  • Total Line Length: Conveyor length customizable from 6 meters to 20+ meters
  • Number of Heating Zones: Independently controlled zones customizable from 2 to 6
  • IR Emitter Selection: Choice of medium-wave or far-infrared emitters
  • Conveyor Belt Type: Teflon mesh belt, stainless steel mesh chain, or custom belt material
  • Hot Air Circulation Design: Customizable airflow pattern (top-down, bottom-up, or combination)
  • Exhaust System Configuration: Fixed or variable-speed exhaust fans, manual or automatic humidity controls
  • Integration Capability: Direct integration with upstream coating equipment and downstream finishing/packaging systems
  • Power Supply Configuration: 380V/50Hz (standard), 220V/60Hz (North America), 460V/60Hz, or other regional requirements
  • Special Certifications: CE, UL, CSA, EAC certification options for international export compliance
  • Cooling Section: Ambient or forced-air cooling zone length and configuration
  • Remote Monitoring & Data Connectivity: Optional IoT connectivity for real-time performance tracking
  • Cleanroom Integration: Stainless steel construction and HEPA-filtered exhaust for medical/pharmaceutical applications
Key Features
  • 2.2-Meter Wide-Format Capacity: Handles large molded pulp products and panels up to 2200mm width in a single pass
  • High-Speed Continuous Drying: Conveyor speeds up to 30 m/min with multi-zone IR heating
  • Fast Response Infrared Heating: Medium-wave infrared emitters deliver rapid heat-up times (seconds)
  • Energy-Efficient Operation: Up to 30% lower energy consumption compared to conventional hot air dryers
  • Superior Coating Finish: Prevents surface defects such as pinholing, blistering, or incomplete curing
  • Uniform Temperature Distribution: Staggered IR emitter array combined with hot air circulation assist
  • User-Friendly PLC Control: Intuitive touchscreen interface with recipe management
  • Low Operational Cost: Reduced energy consumption and minimal maintenance requirements
  • Compact Tunnel Design: Modular construction reduces floor space requirements
Support and Services
  • Installation & Commissioning: Professional on-site installation support including calibration and full line integration
  • Operator Training Programs: Comprehensive training covering machine operation and maintenance procedures
  • Technical Hotline & Remote Support: 24/5 remote technical assistance via phone, email, and IoT-enabled remote diagnostics
  • Preventive Maintenance Plans: Scheduled inspection, calibration, and component replacement services
  • Process Optimization Consulting: Expert guidance on drying parameter optimization for specific coating formulations
  • Documentation Package: Comprehensive technical documentation including operation manual and electrical schematics
  • Spare Parts Availability: Lifetime supply of genuine spare parts through global distribution network
  • Extended Warranty: Optional 24-month or 36-month extended warranty coverage available
Packing and Shipping
  • Packaging: Pre-assembled modules shipped on reinforced export wooden pallets with shock-proof materials
  • Shipping Options: Worldwide shipping via sea freight, air freight for urgent deliveries, or land transportation
  • Delivery Time: 30 - 45 days for standard configurations; 45 - 60 days for customized configurations
  • Port of Loading: Major Chinese ports with full export documentation provided
  • On-Site Assembly: Dedicated installation team with 1-2 weeks on-site assembly and operational validation
Frequently Asked Questions
What types of coatings can be dried with this equipment?
This IR drying conveyor is compatible with a wide range of coating formulations — primarily water-based barrier coatings and solvent-based coatings commonly used in molded pulp applications. Medium-wave IR is particularly effective for water-based coatings due to its strong affinity for water molecules, ensuring efficient moisture removal without damaging the substrate.
What is the 2.2-meter effective working width? Can this be adjusted?
Yes, the machine is fully customizable. While 2200mm is our standard recommended width for large-format molded pulp products, we offer effective working widths ranging from 600mm to 2600mm. The entire line configuration is adjusted accordingly to ensure optimal drying uniformity across your specific product dimensions.
How does infrared drying compare to hot air drying for molded pulp coatings?
Infrared drying offers significant advantages for coated molded pulp. IR transfers heat directly to the coated surface without heating the surrounding air, resulting in up to 30% lower energy consumption compared to conventional hot air dryers. Additionally, IR provides faster response times, more precise temperature control, and reduces surface defects.
Is a cooling section necessary after IR drying?
Yes, a cooling zone is recommended for most applications. After exiting the high-temperature drying zone, coating and substrate surfaces require controlled cooling before handling to prevent heat-related deformation or damage. Our systems include customizable cooling sections from 1-2 meters with ambient or forced-air cooling options.
Can this line be integrated with automatic coating equipment?
Absolutely. The line is designed as a modular system that integrates seamlessly with upstream coating equipment such as roller coaters, spray coating lines, curtain coaters, and automatic dispensing systems. Our engineering team provides full integration planning support.
What is the typical energy consumption?
Energy consumption varies based on the number of heating zones, operating temperature, conveyor speed, and product throughput. The integrated hot air circulation assist system optimizes energy use by recirculating heated air within the tunnel, reducing exhaust losses. Optional heat recovery systems can further reduce energy costs by up to 20%.
What is the warranty period?
Standard warranty is 12 months from the date of commissioning, covering manufacturing defects in materials and workmanship. The warranty includes all electrical, mechanical, and structural components. Extended warranty options (24 or 36 months) are available upon request.
Can the machine handle different product heights/shapes?
Yes, the product height clearance is adjustable between 80-180mm as standard. For deeper products or irregular shapes, custom adjustments can be made including increased clearance height and modified IR emitter positioning to ensure uniform drying across complex product geometries.
