50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-IR-1320
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
30 WORK DAYS
Packaging Details :
Wooden box
Certification :
ISO9001
Product Name :
Infrared Drying Machine
Warranty :
1 Year
Specification :
10000mm long x 1650mm wide x 1400mm high
Color :
Computer white / Green
Effective leveling width :
1320mm
Model No. :
OSM-IR-1320
Description
50kw Stainless Steel Infrared Drying Machine 3sheets/Min
Product Overview

High-performance infrared drying machine designed for efficient industrial drying applications with a production capacity of 3 sheets per minute.

Technical Specifications
Specification Details
Dimensions 10000mm long × 1650mm wide × 1400mm high
Material Construction A3 board shell with insulation cotton in heating area
Heating Element Taiwan quartz heating tube for optimal heating performance
Effective Leveling Width 1320mm
Conveyor System Stainless steel chain rod type conveyor belt
Transmission System Taiwan TWT gear reducer transmission motor
Speed Control Taiwan Delta frequency converter with adjustable speed 5-20m/min and digital speed display
Temperature Control BKC temperature controller with adjustable range from room temperature to 100℃
Product Image

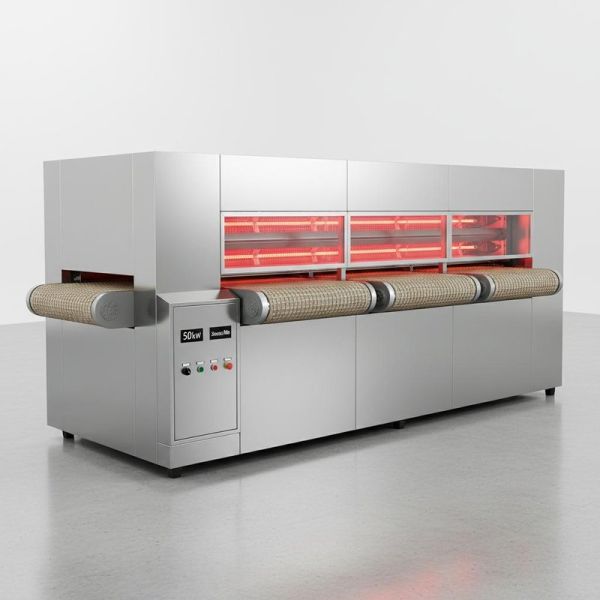

50kw Stainless Steel Infrared Drying Machine 3sheets/Min
