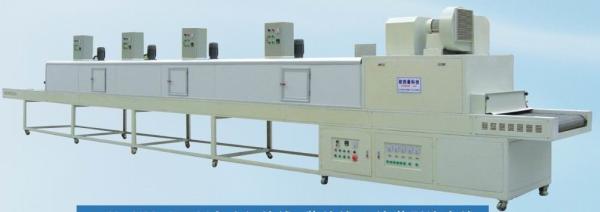

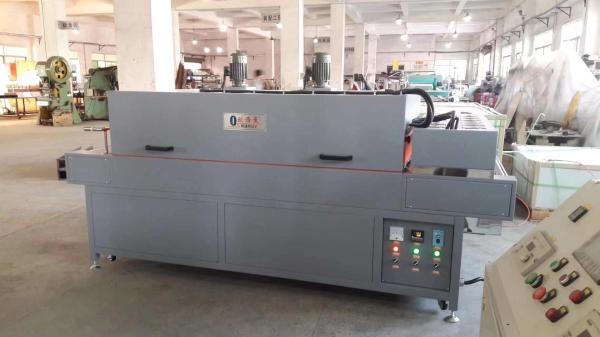

High-Speed Infrared Drying Machine for Rapid Curing of Coatings on Pulp Molded Products

Product Description
Our high-speed infrared drying machine is engineered to significantly reduce curing times in your production line. By utilizing precisely controlled medium-wave infrared emitters, it delivers instant, penetrating heat to quickly dry and cure water-based coatings on pulp molded products. This results in faster line speeds, reduced energy consumption, and a smaller factory footprint. The machine's length and power are fully customizable to meet your specific production throughput and product requirements.

Technical Parameters

Application

• Rapid drying of coatings on paper trays, sugarcane bagasse food containers, and bamboo fiber tableware.

• Curing of inks and adhesives on packaging materials.

• Pre-drying before a final convection drying stage.

Feature

• Instant On/Off Heat: No warm-up or cool-down time, ideal for intermittent production.

• Zone Control: Independent temperature control in multiple zones for optimized drying profile.

• Energy Efficient: Infrared energy transfers directly to the product and coating, minimizing heat loss.

• Uniform Heating: Ensures consistent product quality without hot spots.

Customization
This drying machine is highly customizable. Key options include:

• Length and Power: Tailored to your required drying time and line speed.

• Belt Material: Choice of mesh, teflon-coated, or steel belt.

• Exhaust System: Integrated exhaust for moisture removal.

Support and Services
We provide installation guidance, operational training, and a comprehensive spare parts list to ensure maximum uptime.

Packing and Shipping
The machine is modularized into sections for easy transport. All sections are crated in robust wooden frames for secure shipping.

FAQ

• Q: How much faster is infrared drying compared to conventional hot air ovens?

  • A: Drying times can be reduced by up to 50-70% because IR energy heats the product directly, not the surrounding air.

• Q: Can the temperature be controlled for different products?

  • A: Yes, the PLC allows you to save different temperature profiles for quick changeover between products.
