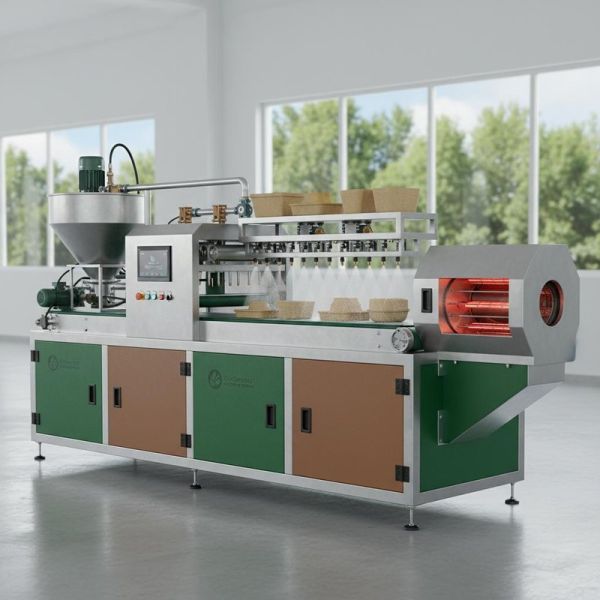

Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-SXT-450T
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30 days
Packaging Details :
WOOD PACKAGING
Product Name :
Single-station Spin Coating Machine
Specification :
700mm L*420mm W*1135mm H
Weight :
Net weight: 120 KG; Gross weight: 130 KG
Voltage :
380V 50HZ
Power :
500 W
Spin speed :
1150 rpm(Max speed)
Warranty :
1 Year
Color :
White
Description
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Product Overview

This eco-centric single-station coating machine is specifically designed for applying bio-based coatings to sustainable pulp molds from straw, bamboo, and sugarcane bagasse. It supports the production of 100% compostable and biodegradable packaging by ensuring an even, effective barrier layer without compromising environmental credentials. The system is highly customizable for various bio-coating viscosities and curing requirements.

Technical Specifications
Parameter Specification
Model OSM-SXT-450T
Power Supply 380V/50Hz
Power Consumption 2.2 kW (Energy Efficient)
Heating Option Customizable IR pre-drying module available
Coating Capacity 100-400 pieces/hour
Rotation Speed Range 50-1200 RPM (optimized for bio-coatings)
Control System Microprocessor with simple interface
Coating Reservoir Easy-clean, corrosion-resistant tank
Dimensions (LxWxH) 1400mm x 1200mm x 1500mm
Applications
  • Perfect for applying PLA or other bio-polymer coatings to straw and bamboo pulp-based products
  • Coating for fully compostable sugarcane bagasse tableware requiring certified coatings
Key Features
  • Bio-Coating Optimized: Designed for the specific flow characteristics of bio-based coatings
  • Easy Cleaning: Simplified design with minimal parts for quick and easy cleaning between batches
  • Low Energy Consumption: Focuses on reducing the overall carbon footprint of the coating process
  • GreenTech Compliance: Ideal for manufacturers aiming for BPI or OK Compost INDUSTRIAL certifications
Customization Options

Key customizable features include:

  • Drying Integration: Can be customized with integrated IR or hot air modules for in-line pre-drying
  • Material Compatibility: Adjustable parameters for different bio-coating types and viscosities
  • Safety Features: Enhanced safety interlocks can be added as per request
Support & Services

Dedicated support for sustainable packaging producers, including assistance with coating selection and process optimization for bio-materials.

Packing & Shipping

All components are packed with recyclable and biodegradable materials where possible, aligned with our commitment to sustainability.

Frequently Asked Questions
Q: Can this machine handle PLA coatings effectively?
A: Absolutely. The rotation speed and application process are customizable to handle the specific viscosity and drying behavior of PLA coatings.
Q: Is the machine suitable for a lab or R&D setting?
A: Yes, its small footprint and programmable recipes make it ideal for both R&D and small-batch production.
