Specifications
Brand Name :
Osmanuv
Model Number :
OSM-XT-2400T
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30~45 Days
Packaging Details :
Wooden box
Machine Model :
ZP-1300#
Substrate :
Fiber cement board
Embellishment :
Spot UV , Texture , Sandy Effect
Maximum Speed :
5000p/hour
Cooling Way :
Air cooling
Coating Qty :
10~16g/sqm
Light Source :
UV light
Conveyor Belt Material :
Teflon
Description
Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
Production Line Overview

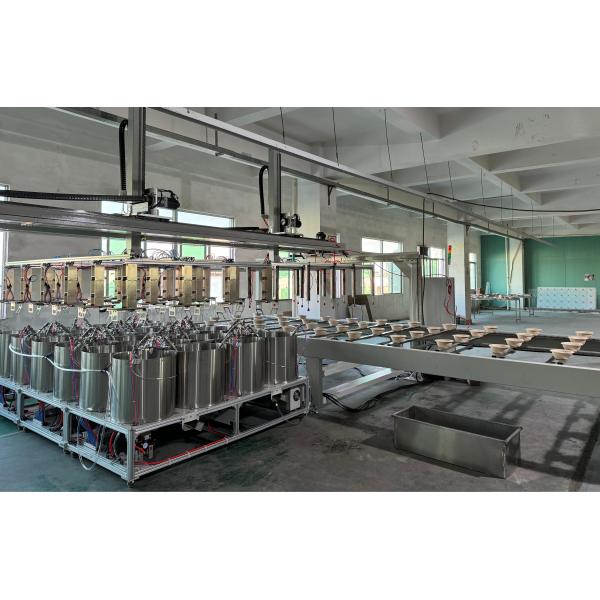

This automated production line features a complete system including automatic feeding, precision spin coating, transition conveying, multi-stage drying (IR + hot air), cooling, and robotic off-loading capabilities.

Product Description

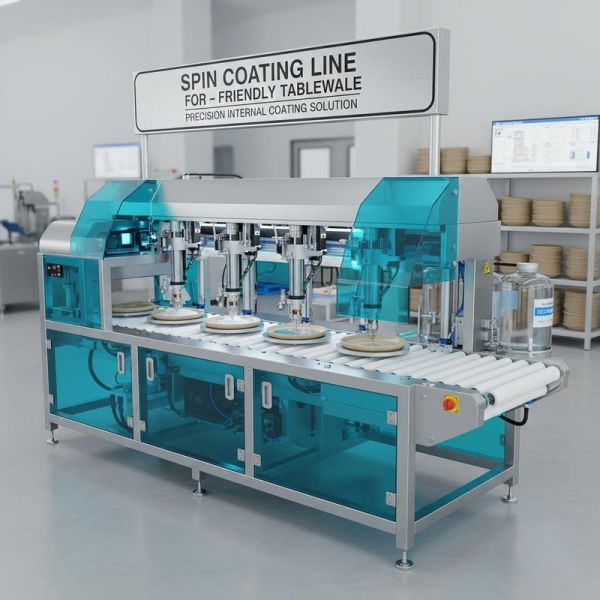

Our precision spin coating line is specifically engineered for applying uniform water-based barrier or release coatings to the interior of eco-friendly tableware made from materials like molded pulp, bagasse, and PLA. The system ensures consistent, pinhole-free film thickness for enhanced liquid and oil resistance performance.

Technical Specifications
Parameter Details
Model SC-GT100 (Standard Model, Customizable)
Coating Type Aqueous-based coatings (Barrier, Release)
Substrate Molded Pulp, Bagasse, PLA, Paper
Coating Uniformity ±2% film thickness deviation
Production Capacity Up to 30 cycles per minute (Customizable)
Control System PLC + Touch Screen HMI with recipe storage
Power Supply 380V / 50Hz (3 Phase) or Customizable
Applications

Ideal for applying moisture and oil barriers to plates, bowls, and food containers manufactured from sustainable materials.

Customization Options

We offer fully customizable solutions. The spin coater chuck size, drying tunnel length, and automation level can be tailored to your specific plate dimensions and production output requirements.

Key Features
  • High-precision servo-driven spin coater for unmatched film consistency
  • Patented fixturing to minimize coating splatter and waste
  • Energy-efficient multi-zone drying for optimal film formation
  • Minimal coating material consumption due to precise application
Support & Services

We provide comprehensive installation & commissioning, operational training, and a 12-month warranty. 24/7 technical support is available to ensure continuous operation.

Packing & Shipping

The machine is packed in weather-proof wooden cases for safe sea or air freight transportation. All components are clearly marked for straightforward reassembly at your facility.

Frequently Asked Questions
What is the minimum film thickness achievable?
The system can reliably achieve thin films down to 5-10 microns, depending on the coating viscosity and application requirements.
Can it handle different plate sizes on the same line?
Yes, with quick-change tooling and stored PLC recipes, changeover between different plate sizes is fast and simple, minimizing downtime.
