Specifications
Brand Name :
OSMANUV
Model Number :
OSM-GL-3200W, OSM-SLJ-XZ3200A, OSM-XT-3200T, OSM-IR-2400T
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
55days
Packaging Details :
WOOD PACKAGING
Total power :
13kW
Product size :
diameter 350-420mm
Rotation speed :
Maximum 1400rmp/1 min
Coating function :
water-proof, oil-proof, high temperature-proof, sticking-proof
After-sales service provided :
Video technical support,Online support,Overseas third-party support available
Automatic grade :
Automatic,Semi-Automatic,manual,Other
Warranty :
1 Year
Condition :
New
Description
24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
Product Description

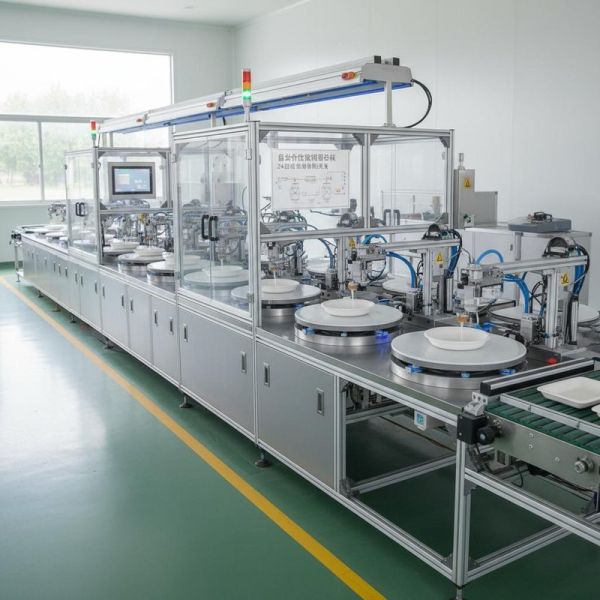

This fully automated 24-station spin coating line is specifically engineered for applying uniform, waterproof coatings to pulp molded tableware such as plates, bowls, and food containers. The system integrates a double-station gantry robot for high-speed loading/unloading, 24 precision spin coating devices for consistent 360-degree coverage, and a 24-meter IR drying tunnel for rapid curing. This complete line ensures a high-quality, food-safe barrier that enhances product durability and liquid resistance.

Composition of the Line
  • 6.4 meters Pre-conveyor
  • Double-station Gantry Robot
  • 24-station Automatic Spin Coating Device
  • 24 meters IR Drying Machine
Technical Parameters
Parameter Name Specification
Product Name 24-Station Spin Coating Line
Gantry Robot Cycle Time 40 seconds/48 pieces
Spin Coating Stations 24 Stations
IR Drying Tunnel Length 24 meters (18m Heating + 2.5m Cooling + 3.5m loading area)
Drying Temperature Range Ambient - 200°C Adjustable
Line Control System Delta PLC & Servo System
Coating Uniformity > 99%
Application

Perfect for applying biodegradable waterproof coatings to pulp molded food containers, plates, bowls, and other food service packaging products.

Customization

This complete production line is customizable. We can adjust the spin coating parameters, drying temperature profile, and conveyor speed to match your specific coating material and production requirements.

Features
  • Complete automation from loading to drying minimizes labor costs
  • 24-station design enables high-volume production capacity
  • Precision spin coating ensures uniform coverage on complex 3D shapes
  • Integrated IR drying with cooling zone for immediate packaging
Support and Services
  • One-year warranty on entire production line
  • On-site installation and commissioning supervision
  • Lifetime technical support and operator training
  • Remote diagnostics and troubleshooting
Packing and Shipping
  • Each component is disassembled and securely packed in weatherproof wooden crates
  • FOB shipping terms
  • 60 working days delivery after order confirmation
  • Professional installation guidance provided
Frequently Asked Questions
Q: What's the advantage of spin coating versus spray coating for pulp tableware?
A: Spin coating provides more uniform coverage with less material waste, particularly effective for complex-shaped items like bowls and containers. The process is highly customizable for different viscosity coatings.
Q: Can this line handle different sizes of tableware simultaneously?
A: The system can be customizable with quick-change fixtures to accommodate different product sizes, though optimal efficiency is achieved when running similar-sized products in batches.
