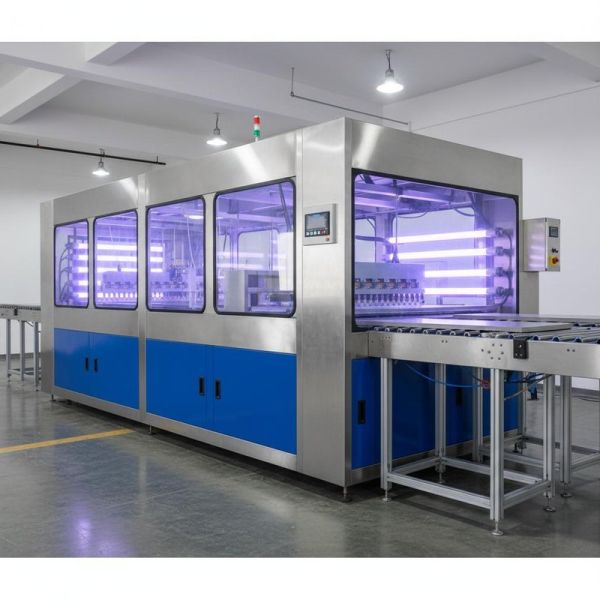

90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-ZH-1320H.
Certification :
ISO9001 And CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Supply Ability :
According to customer's demand
Product name :
90 degree steering conveyor
Dimensions :
2800mm long × 2800mm wide × 900mm high. (Subject to actual size)
Power supply voltage :
380V, 50HZ, three-phase five-wire system
Running speed :
5-20M/min adjustable
Conveying direction :
from left to right
Rotating device :
using 90º rotating electric
Feature :
Energy saving
Description
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
Product Overview

The UV Coating Machine Automatic Coating Machine For Wall Or Floor 90° Rotating Electric For Cement Fiberboard features a roller double-sided coater with simple structure that enables simultaneous coating on both sides. As an in-machine coater, it maintains suitable coating speed and minimizes coating streaks.

This machine is ideal for 90° steering and conveying of various materials including calcium silicate boards, glass magnesium boards, cement fiber boards, panel furniture, door panels, MDF, particleboard and other workpieces in assembly line operations.

Technical Specifications
Product Name 90 degree jacking rotary plate machine
Model OSM-ZH-1320H
Features Suitable for various calcium silicate board, glass magnesium board, cement fiberboard, board furniture, door panels, MDF board, particleboard and other flow work of the workpiece 90° transport
Mechanical Dimension 2800mm long × 2800mm wide × 1800mm high (Subject to actual size)
Power Supply Voltage 380V, 50HZ, three-phase five-wire system
Power 1.5KW
Main Frame Main steel frame made of 3mm thick cold-rolled Q235 steel plate, legs welded with 80*40mm carbon steel square tubes, roller distance less than 10cm
Side Plate Made of 3mm steel plate bending, surface powder sprayed, equipped with photoelectric switch and start-stop switch
Power Part Taiwanese city state gear reducer and motor, tapered roller chain drive, roller distance less than 10cm. Anti-pinch steel plate between transmission chain and roller for safety, equipped with centering device using Airtaker brand centering cylinder
Control Electrical Parts Chint electrical components, Omron brand travel switches and photoelectric switches; Yaskawa PLC and Delta inverters. Neat control lines with numbered markings corresponding to wiring diagram
Running Speed 5-20M/min adjustable, movement rate 4.0 boards per minute, uniform and stable equipment transmission speed
Conveying Method Φ75 cold drawn steel pipe drum with galvanized surface, bottom side drum surface 20mm
Driving Device Taiwan city state reducer motor, 1500w power, 1 set, drum linear speed 20 meters/minute
Automation Automatic identification for conveyor moving in and out, electric control for translation, pneumatic for rotation
Rotating Device 90° rotating motor
Product Images
90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard 90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We conduct sample trials on our machines and provide testing videos. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
