PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
Specifications
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Brand Name :
Osmanuv
Model Number :
OSM-PVC-1320#
Place of Origin :
CHINA
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Weight :
1000kg
Voltage :
220V50HZ
Power(w) :
0.75KW
Warranty :
1 Year
Net paper width :
1320mm
Working speed :
1-10m/min
Description

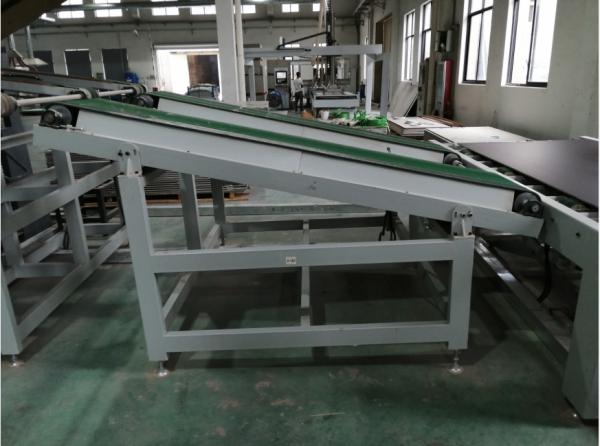

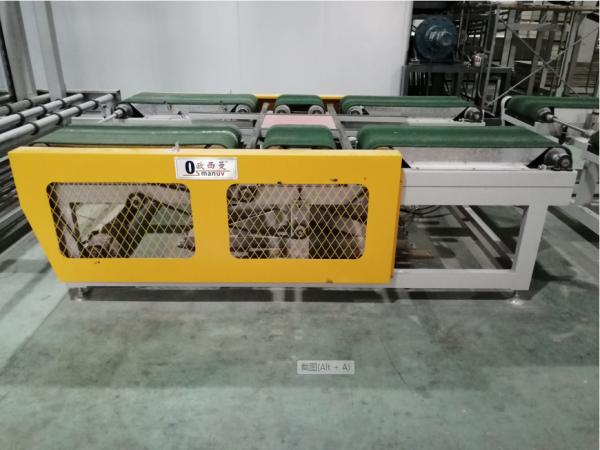

PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
This PVC conveyor belt machine is specifically designed for panel furniture manufacturing, offering reliable transportation for various workpieces during water operations.
Product Specifications
1 Product Name PVC Conveyor
2 Model OSM-PV-1320 Type
3 Features Suitable for panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc. Workpiece transportation for water operations.
4 Mechanical Dimensions 2500mm long × 1620mm wide × 850mm high (Customizable according to actual needs)
5 Power Supply Voltage 220V, 50HZ
6 Material 1.5mm cold-rolled plate, bent and welded, surface painted, equipped with adjusting foot cup
7 Conveyor Belt Green 3.0mm PVC belt, width: 1320mm, long service life, stable conveying
8 Transmission System KHV bearing, Beiji reducer, Taiwan Delta inverter control, adjustable speed 5-20 m/min, stepless speed adjustment
9 Electrical Part OMRON relay, CHNT contactor, Beiji reducer, Taiwan Delta inverter, CKC brand delay time, Japanese Izumi company switches - all comply with national electrical standards
PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture PVC 0.75KW 1320mm Width Conveyor Belt Machine For Panel Furniture
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our products are manufactured according to GMP & ISO standards and have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
