Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Sus 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-UVC50-300AL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
20 work days
Packaging Details :
Wooden box
Certification :
ISO9001
Product Name :
Light wave irradiation sterilizer
Speed :
1-10m / min
Power :
2KW
Color :
Computer white / Green / Silver
Specification :
2500mm*700mm*1350m
Weight :
280KG
Description

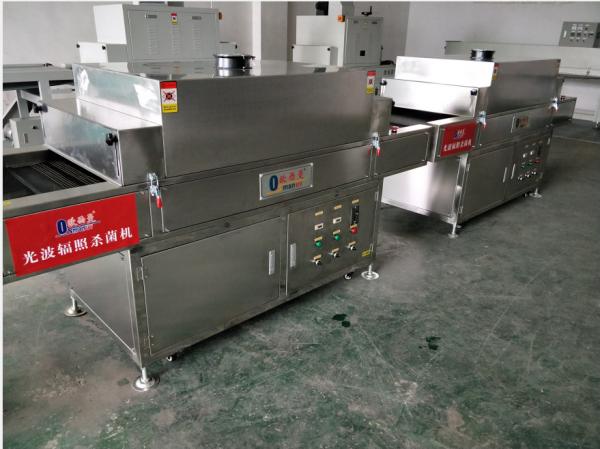

SUS 304 Stainless Steel Tube Light Wave UV Irradiation Machine 1m/Min
SUS 304 Stainless Steel Mesh Belt Efficient 30W Tube Light Wave Irradiation Sterilizer

Advanced UV sterilization equipment designed for efficient microbial control in industrial applications.

Technical Specifications
Specification Details
Model OSM-UVC50-300AL
Equipment Dimensions 2500mm (L) × 550mm (W) × 1380mm (H)
UV Sterilization Area 500mm
Inlet and Outlet 500mm infeed; 180mm in and out
Conveyor System Mesh belt
Conveyor Width 300mm
Speed Range 1-10m/min, stepless speed regulation
Material Construction Entire machine made of SUS 304 stainless steel
UV Germicidal Lamps 30W tubes (50 tubes total: 25 top downward irradiation, 25 bottom upward irradiation)
Exhaust System 5 sets of 38W 220V
Conveyor Motor 120W 220V
Conveying Direction Left to right
Conveyor Belt Height 780 ± 50mm from ground
Safety Devices Earth leakage circuit breakers, control line fuses, compliant with international safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production complies with GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
