0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
$5,000
Minimum coating thickness :
0.05mm
Maximum coating width :
280mm
Coating length :
unlimited
Max capacity :
150g
Coating speed :
4.5m/min
Dimensions :
1200×620×550mm
Weight :
120kg
Voltage :
220V
Power rate :
1050W
Power source :
1 phase, AC 220V
Maximum temperature :
250℃
Coating gap resolution :
0.005mm
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic grade :
Semi-Automatic
Driven type :
Electric
Description

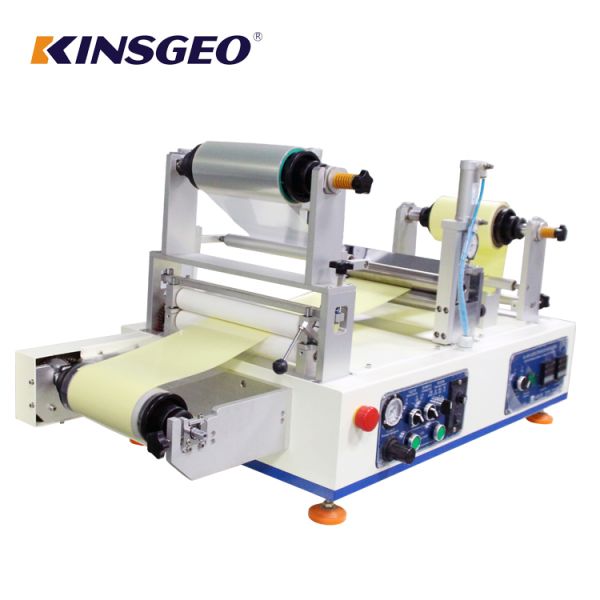

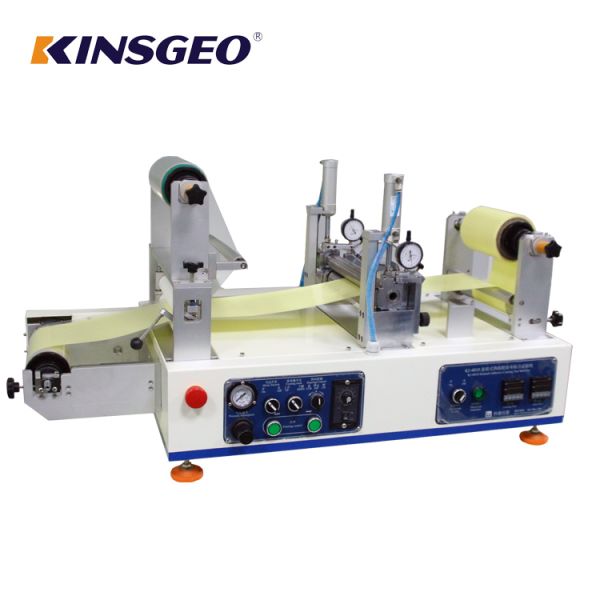

0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
Laboratory Hot Melt Sampling Coater for Adhesive Tape Production

This precision benchtop hot melt coater is designed for producing coated samples and small-scale production of hot melt adhesives, with lamination capabilities for various foils, films, and papers. Ideal for lab-scale simulations of production processes, it significantly reduces R&D sample preparation costs.

Key Applications

Laboratory-scale simulation of production processes for research and development, sample preparation for adhesive tape manufacturing, and small-batch production of hot melt coated materials.

Technical Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control for web alignment on adhesive carrier and facestock
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long service life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • High-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Automatic winding capability for unlimited length tape production
  • Reversible speed controller with optimal coating speed of 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine 0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
Technical Specifications
Maximum Coating Width 280mm
Coating Length Unlimited
Coating Speed Adjustable (optimal: 4.5m/min)
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W
Minimum Coating Thickness 0.005mm (0.05mm)
Quality Assurance & Support
Warranty & Service Commitment

1-Year Warranty: All machines guaranteed for one year with free spare components (excludes improper operation or intentional damage)

Training Services: Comprehensive operator training during installation and commissioning

Certification Services: Complimentary provision of related certificates upon client request

Maintenance Support: 48-hour response time for technical questions or malfunctions

0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine 0.05MM Minimum Coating Thickness Medical Adhesive Tape Hot Melt Coating Machine
Contact Information

For detailed specifications, custom requirements, or additional product information, please contact our technical team for personalized assistance.
