Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
$3,500
Voltage :
220V
Power source :
1 phase, AC 220V
Power rate :
1050W
Dimensions :
1200×620×550mm
Weight :
120kg
Max coating width :
280mm
Coating length :
unlimited
Max capacity :
150g
Min coating thickness :
0.05mm
Coating speed :
4.5m/min
Max temperature :
250℃
Coating gap resolution :
0.005mm
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic grade :
Semi-Automatic
Driven type :
Electric
Description
Lab Hot Melt Sampling Coater for Adhesive Tape Production
Precision laboratory benchtop hot melt coater designed for producing coated samples and small-scale production of hot melt adhesives. This machine enables lab-scale simulations of production processes and significantly reduces R&D sample preparation costs.
Primary Applications
Capable of laminating hot melt adhesives to various foils, films, and papers for research and development purposes.
Key Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control for web alignment on adhesive carrier and facestock
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long machine life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • High-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Maximum coating width: 280mm
  • Automatic winding capability
  • Reversible speed controller with optimal coating speed: 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 280mm
Coating Length Unlimited
Coating Speed Adjustable (optimal: 4.5m/min)
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W

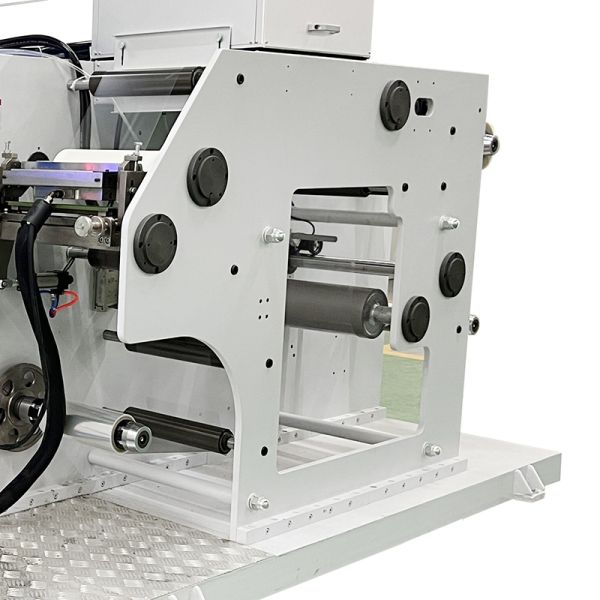

Product Images
Hot Melt Coating Machine Wholesale Film Coating Machine for Lab Hot Melt Coating Machine Wholesale Film Coating Machine for Lab Hot Melt Coating Machine Wholesale Film Coating Machine for Lab Hot Melt Coating Machine Wholesale Film Coating Machine for Lab
Service & Support
Warranty & Guarantee
All machines include one-year free warranty with spare components coverage (excludes improper operation or intentional damage).
Training Services
Our engineers provide comprehensive training during installation and commissioning, ensuring your staff can operate the machine properly.
Certification
We provide related certificates free of charge upon client request.
Maintenance Support
For any questions or malfunctions, we guarantee response within 48 hours.
