High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
$5,000
Voltage :
220V
Power source :
1 phase, AC 220V
Power rate :
1050W
Dimensions :
1200×620×550mm
Weight :
120kg
Max coating width :
280mm
Coating length :
unlimited
Coating speed :
4.5m/min
Min coating thickness :
0.05mm
Max operating temperature :
250℃
Coating gap resolution :
0.005mm
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic grade :
Semi-Automatic
Driven type :
Electric
Max capacity :
150g
Description
High Productivity PVC Tape Adhesive Tape Coating Machine for Lab
Laboratory Hot Melt Sampling Coater for Adhesive Tape Production

This precision benchtop hot melt coater is designed for producing coated samples and small-scale production of hot melt adhesives, with lamination capabilities for various foils, films, and papers. Ideal for lab-scale simulations of production processes, it significantly reduces R&D sample preparation costs.

Key Applications

Laboratory-scale simulations of production processes for research and development applications, enabling efficient sample preparation and process study.

Product Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control on adhesive carrier and facestock for web alignment
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long machine life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • High-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Maximum coating width: 280mm
  • Automatic winding for unlimited length tape production
  • Reversible speed controller with optimal coating speed: 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 280mm
Coating Length Unlimited
Coating Speed Adjustable (Optimal: 4.5m/min)
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W
Product Images

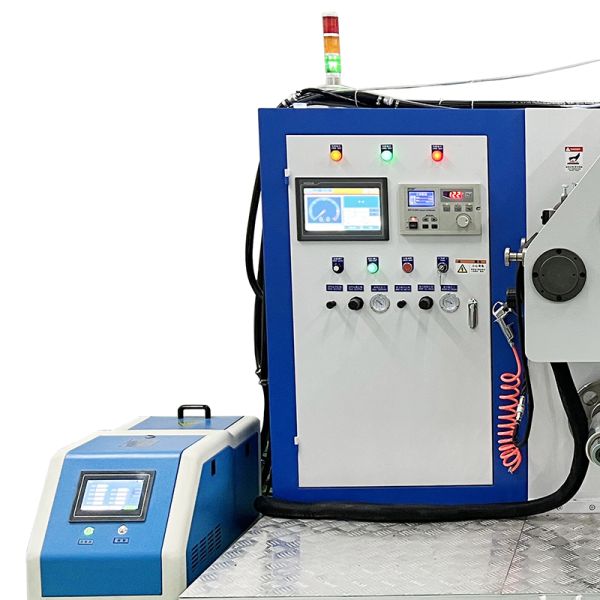

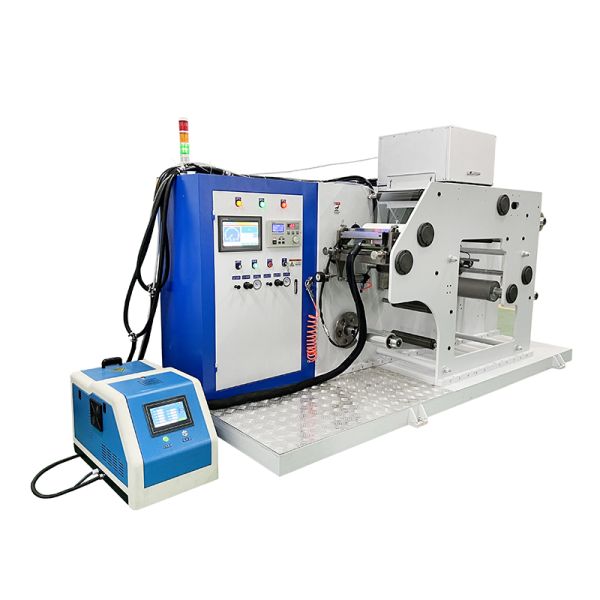

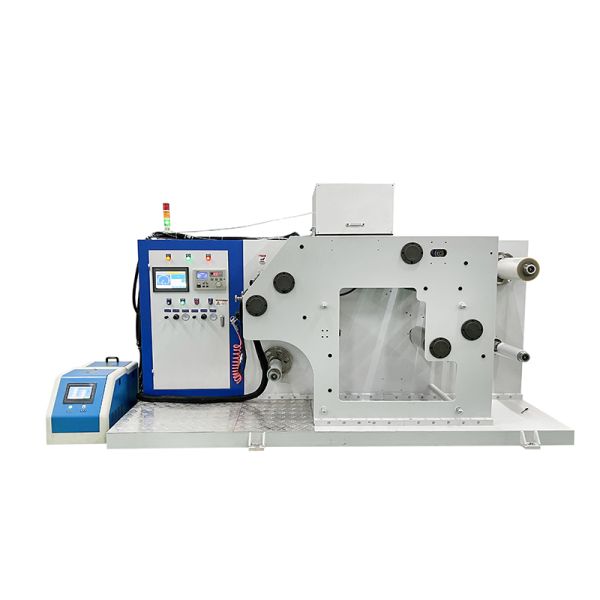

High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
Company Information
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
Packaging & Delivery
High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab
Why Choose Our Products
Comprehensive Support Services
  • Warranty: One-year free guarantee with spare components provided (excludes improper operation or intentional damage)
  • Training: Engineer-led installation and commissioning with comprehensive operator training
  • Certification: Free provision of related certificates upon client request
  • Maintenance: 48-hour response time for technical questions and malfunction resolution
