Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
CN¥247,424.40
Voltage :
220V
Dimension :
1200*620*550mm
Weight :
120kg
Power source :
1 phase, AC 220V
Power rate :
1050W
Max coating width :
280mm
Coating length :
unlimited
Max capacity :
150g
Min coating thickness :
0.05mm
Coating speed :
4.5m/min
Max temperature :
250℃
Coating gap resolution :
0.005mm
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic grade :
Semi-Automatic
Driven type :
Electric
Description
Electric Adhesive Paper Hot Melt & UV Coating Machine
Precision laboratory benchtop hot melt coater for producing coated samples or small production runs of hot melt adhesives, with laminating capabilities for various foils, films, and papers.
Laboratory Applications
Ideal for lab-scale simulations of production processes, enabling research and development sample preparation while significantly reducing R&D costs.
Key Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control for web alignment on adhesive carrier and facestock
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Teflon insert side dams for controlled coating width
  • Durable aluminum and steel construction for long machine life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Maximum coating width: 280mm
  • Reversible speed controller with optimal coating speed: 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 250mm
Coating Length Unlimited
Coating Speed Adjustable (optimal: 4.5m/min)
Dimensions 1200 × 620 × 550mm (L×W×H)
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W

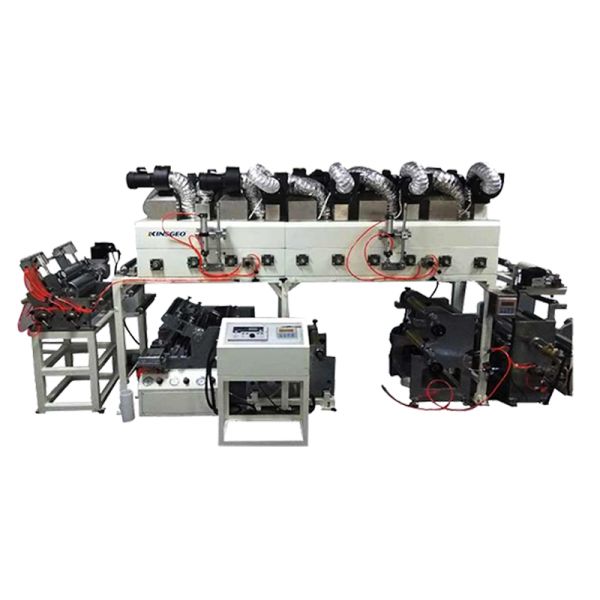

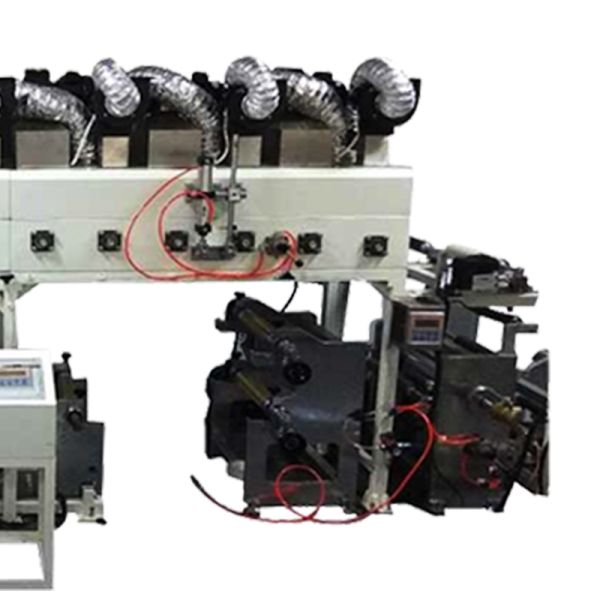

Product Images
Electric Adhesive Paper Hot Melt & UV Coating Machine with Pump and Motor High-Accuracy Wood & Plastic Packaging Electric Adhesive Paper Hot Melt & UV Coating Machine with Pump and Motor High-Accuracy Wood & Plastic Packaging

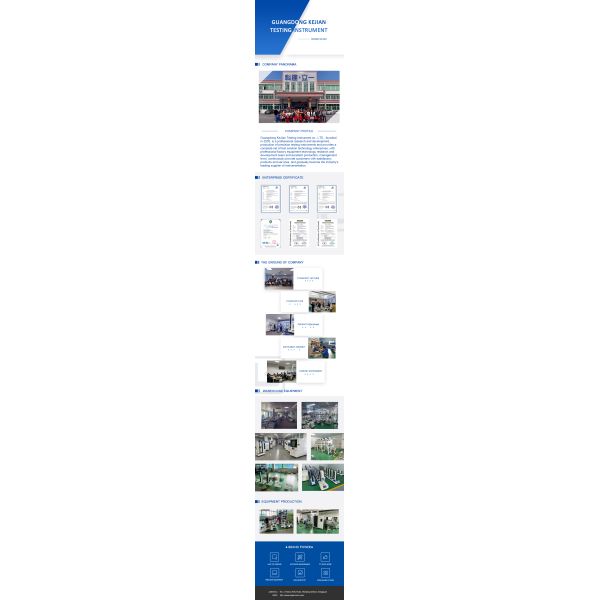

Company Information
Electric Adhesive Paper Hot Melt & UV Coating Machine with Pump and Motor High-Accuracy Wood & Plastic Packaging
Packaging & Delivery
Electric Adhesive Paper Hot Melt & UV Coating Machine with Pump and Motor High-Accuracy Wood & Plastic Packaging
Why Choose Our Products
Warranty: All machines guaranteed for one year with free spare components (excludes improper operation or intentional damage)
Training Services: Our engineers provide comprehensive operator training during installation and commissioning
Certification: We provide related certificates to clients upon request at no additional cost
Maintenance Support: Quick response within 48 hours for any technical questions or malfunctions
