1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
1000mm Adhesive BOPP Coating Machine for the Production of Tape
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
$3,000
Voltage :
220V
Dimension :
1200*620*550mm
Weight :
120kg
Power source :
1 phase, AC 220V
Power rate :
1050W
Max coating width :
280mm
Coating length :
unlimited
Max capacity :
150g
Min coating thickness :
0.05mm
Max temperature :
482℉(250℃)
Coating speed :
4.5m/min
Coating gap resolution :
0.005mm
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic grade :
Semi-Automatic
Driven type :
Electric
Description

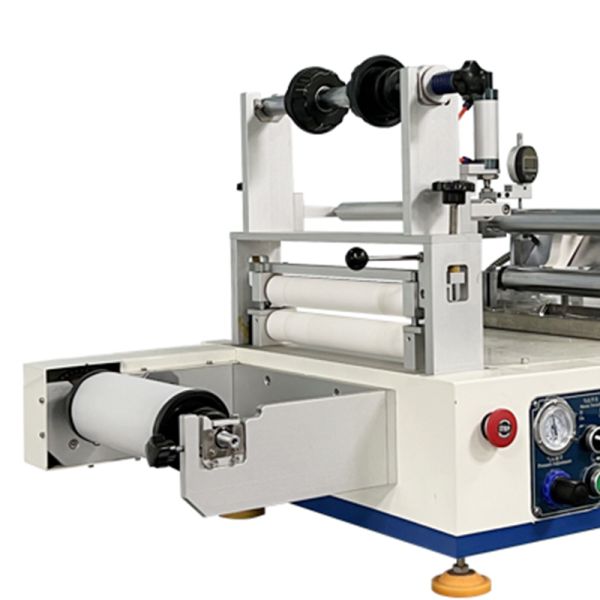

1000mm Adhesive BOPP Coating Machine for Tape Production
This precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, with capability to laminate to various foils, films, and papers. Ideal for lab-scale simulations of production processes, it significantly reduces R&D sample preparation costs.
Primary Applications
Precision coating and laminating of hot melt adhesives onto various substrates including foils, films, and papers for research, development, and small-scale production applications.
Key Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control on adhesive carrier and facestock for web alignment
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long machine life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Maximum coating width: 280mm with unlimited coating length
  • Reversible speed controller with optimal coating speed: 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 280mm
Coating Length Unlimited
Coating Speed Adjustable, optimal at 4.5m/min
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W
Product Images
1000mm Adhesive BOPP Coating Machine for the Production of Tape 1000mm Adhesive BOPP Coating Machine for the Production of Tape 1000mm Adhesive BOPP Coating Machine for the Production of Tape 1000mm Adhesive BOPP Coating Machine for the Production of Tape
Company Information
1000mm Adhesive BOPP Coating Machine for the Production of Tape
Packaging & Delivery
1000mm Adhesive BOPP Coating Machine for the Production of Tape
Why Choose Our Coating Machines
Warranty Service: All machines include one-year free warranty with spare components provided (excludes improper operation or intentional damage)
Training Services: Our engineers provide comprehensive operator training during installation and commissioning
Certification Services: We provide related certificates to clients upon request at no additional cost
Maintenance Support: Quick response within 48 hours for any technical questions or malfunctions
Contact Us
For more detailed information or if you cannot find what you're looking for, please feel free to contact us. We're committed to providing the best support for your coating machine requirements.
