China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
CN¥24,055.15
Voltage :
220V
Power source :
1 phase, AC 220V
Power rate :
1050W
Dimensions :
1200×620×550mm
Weight :
120kg
Max coating width :
280mm
Coating length :
unlimited
Coating speed :
4.5m/min
Max operating temperature :
250℃
Min coating thickness :
0.005mm
Max capacity :
150g
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic grade :
Semi-Automatic
Driven type :
Electric
Coating gap resolution :
0.005mm
Description

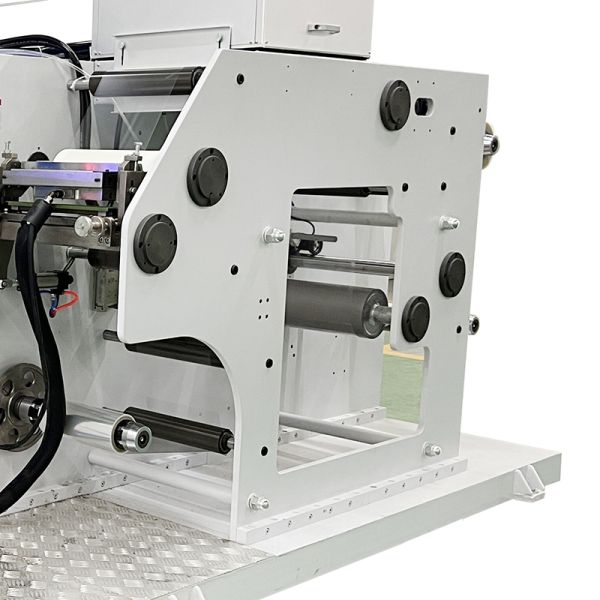

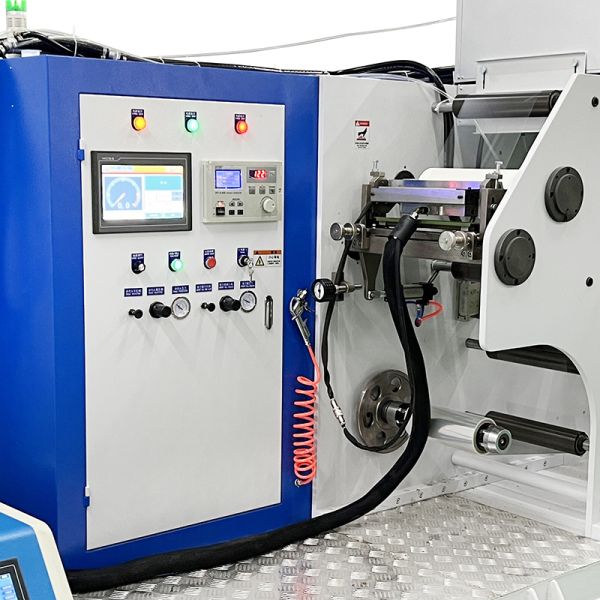

Precision Laboratory Hot Melt Coating Machine
This benchtop hot melt coater is designed for producing coated samples and small-scale production of hot melt adhesives, with capability to laminate to various foils, films, and papers. Ideal for R&D sample preparation and process simulation.
Primary Applications
Laboratory-scale simulations of production processes, R&D sample preparation, and small-batch production of hot melt adhesive coatings on various substrates.
Key Features & Benefits
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Operates on 110V/20A circuit with compressed air source requirement
  • Pivot control for precise web alignment on both adhesive carrier and facestock
  • Adjustable laminating speed and pressure controls
  • Maximum operating temperature of 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars with independent heating
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long service life
  • Variable speed controller with reversible operation
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • High-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Grating scale displays coating thickness in real-time
  • Automatic winding capability for unlimited length tape production
  • Adjustable roll tension via coated liner bar control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 250mm
Coating Length Unlimited
Coating Speed Adjustable, optimal at 4.5m/min
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W
Product Images
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
Company Commitment
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
Packaging & Delivery
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
Service & Support
Comprehensive Warranty & Support
  • Warranty: One-year free warranty covering all machine components (excludes improper operation or intentional damage)
  • Training: On-site engineer training during installation and commissioning until proper operation is achieved
  • Certification: Complimentary provision of related certificates upon client request
  • Maintenance: 48-hour response guarantee for technical questions or malfunction resolution
Contact Our Technical Team
For detailed specifications, custom requirements, or additional information, please contact our technical specialists for personalized assistance.
