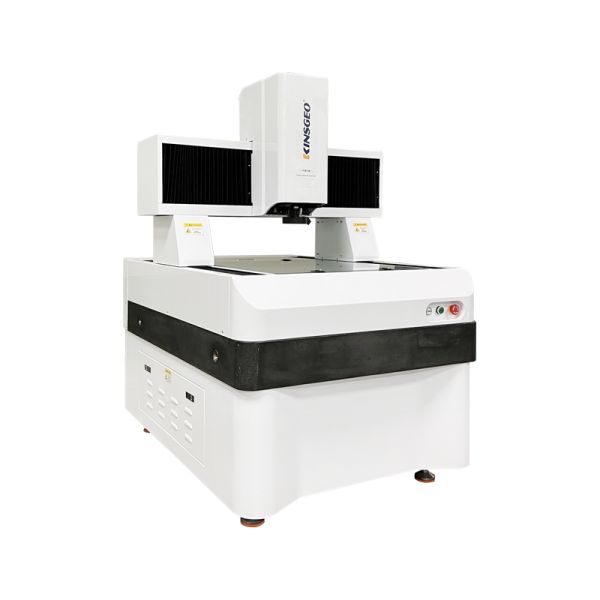

3D Coordinate Image Measuring Instrument, Vision Measuring Machine Support OEM
3D Coordinate Image Measuring Instrument, Vision Measuring Machine Support OEM
3D Coordinate Image Measuring Instrument, Vision Measuring Machine Support OEM
3D Coordinate Image Measuring Instrument, Vision Measuring Machine Support OEM
Specifications
Place of Origin :
CHINA
Supply Ability :
100 units per month
Brand Name :
KEJIAN
Packaging Details :
wooden box
Objective magnification :
0.7X-4.5X
Test distance(mm) X*Y*Z :
300x200x200
Model Number :
KJ-VMC
Price :
6500USD
Composite Multiple :
20~128X
Warranty :
12 Months
product name :
2D Image Measuring Instrument
Payment Terms :
L/C,T/T
Resolution :
0.1μm
Certification :
CE GS
Working Distance :
82mm
MOQ :
1 unit
X Y axis accuracy(μm) :
≤3+L/200(L is the unit of measure mm)
Delivery Time :
5-8 work days
Description

3D Coordinate Measurement Optical Image Measuring Machine

Instructions
VMC is a fully automatic image measuring instrument developed for product measurement applications. It adopts flexible manual variable times, optimized hardware and software configuration, and perfectly realizes the full automatic measurement requirements of various 2D sizes in batches, widely used in mold, precision hardware, mobile phone panels, glass, touch screen and other industries.

Features

It has the function of data processing, display, input and output, and the accuracy of measurement image

is extremely high.After connecting with the computer there is special measurement software to measure.

Technical Parameter

Model2010(Manual)3020(Manual)4030(Manual)
Size of machine body600×500×850mm850×600×900mm970×670×940mm
Size of metal platform345×250mm450×350mm650×350mm
Size of glass platform220×150mm340×240mm480×370mm
Actual working stroke200×100×130mm300×200×150mm400×300×150mm
Weight of machine body100kg200kg250kg
Machine pedestal00 Level Granite
Linear accuracy3+L/75µm
Surface lightingLED ring form super bright cold light source(luminance adjustable)
Outline shiningLED super bright roundness light(luminance adjustable)
Calculation measurementREICA 2.5D Precise measurement system software
Analysis force0.001mm
Repeat accuracy0.002mm
Resolution of optical scale0.001MM
CCDStandard equipment: SONY chip1/3 color CCD

Eyepiece

Standard equipment: 0.5X(can choose 1X,2X)
Object glass0.7X～4.5X Amplification factor: 20X～120X
Grating rulerStandard equipment: Qingdao Qihai brand. Resolution: 1µm.
Power supplyAC90～264V, 50/60Hz
Light source materialLED cold light source(two groups, luminance can be adjustable)
Accuracy3+L/150um National standard
Load30KG
Operating methodManual shake(fine adjustment and fast movement)
Input power90～264VAC, 47～63Hz, 10AMP
Environmental demand of lab

Temperature: 20±2℃. Humidity: 40%～70%. Vibration: ＜2℃/hr.
Dust prevention: ＜15Hz. Avoid strong magnetoelectricity.
