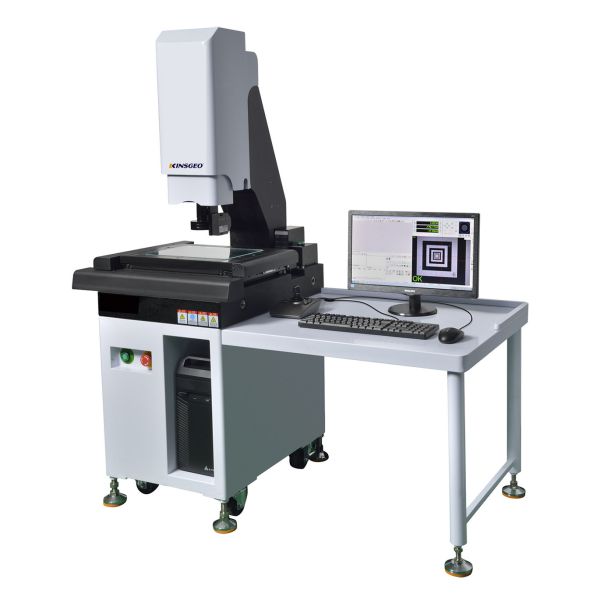

2.5D VMS Operated Video Coordinate Measuring Machines For Universities
2.5D VMS Operated Video Coordinate Measuring Machines For Universities
Specifications
Brand Name :
Kejian
Model Number :
KJ-CNC
Place of Origin :
China
MOQ :
1 Set
Price :
USD 5000/Set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 Set/Week
Delivery Time :
5 work days
Packaging Details :
wooden
keyword :
video measurement machine
item :
Coordinate Measuring Machines
Description

2.5D VMS Operated Optical Video Measurement Machine

Product Paramenters

Model
VMS-1510G
VMS-2010G
VMS-2515G
VMS-3020G
VMS-4030G
Metal Worktable Size(mm)
354*228
404*228
450*280
500*330
606*466
Glass worktable size(mm)
404*228
260*160
306*196
350*250
450*350
Travel(mm)
150*100
200*100
250*150
300*200
400*300
Axis X,Y,Z Resolution
0.5μm
Accuracy(μm)
E1xy=(2.5+L/100)μm
Dimension(L*W*H)mm
540*560*850
540*560*850
760*600*900
760*600*900
970*670*940
Weight(kg)
100
110
120
140
250
Axis Ztravel(mm)
200(can be customized to 300)
Video System
Camera: 1/3" Color CCD Camera
Zoom lens magnification: 0.7X-4.5X Total magnification: 26.6X-171X
Field view: 8.1mm-1.3mm
Optional Components of video measuring machine
Options
1.0X lens cone(standard)
0.5X lens cone(Optional)
working distance (mm)
Zoom Lens
0.7X-4.5X
0.7-4.5
Additional Lens
Magnifeication
Object view(mm)
Magnification
Object view(mm)
0.5X (Optional)
13.3X-85.5X
16.2-2.6
6.65X-42.7X
32.4-5.2
175
1.0X(Standard)
26.6X-171X
8.1-1.3
13.3X-85.5X
16.2-2.6
92
2.0X(Optional)
53.2X-342X
4-0.7
26.6X-171X
8.1-1.3
36

Application
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, this instrument is a high precision and high efficiency measuring machine. Designed and manufactured by Rational Precision Instrument, a company with more than 20 years of history in precision measuring systems, Rational Video measuring machines are of good quality and reliability and have been used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
