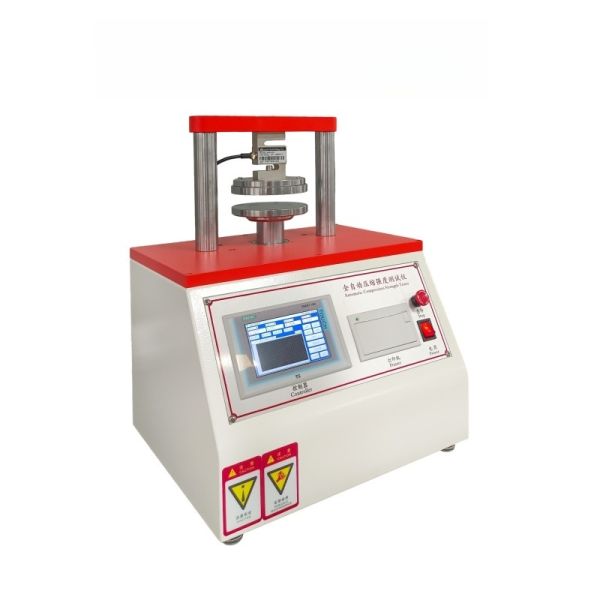

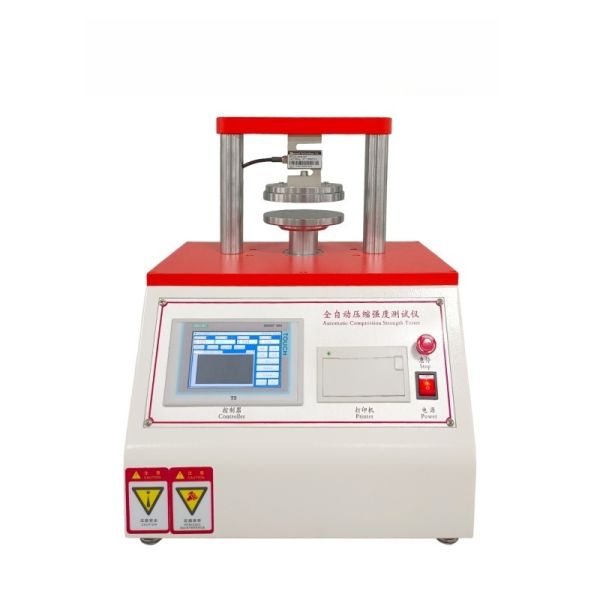

Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Paperboard Edge Crush Ring Crush Strength Tester
Specifications
Brand Name :
Dongjun
Model Number :
DJ-202
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Test Area :
10 ± 0.05cm ^ 2
Port :
Shenzhen
Precision :
< 0.25%
Seal Face Width :
70mm
Accuracy :
0-20mm
Max Drop Weight :
150 Kg
Description

Paperboard edge crush ring crush strength tester

Product use

This Paperboard Edge Crush Ring Crush Strength Tester is a professional testing instrument specially used to measure the edge crush resistance (ECT), ring crush strength (RCT), flat crush strength and corrugated support performance of paperboard, corrugated medium, linerboard and packaging paper.
By applying a stable vertical pressure to the standard test sample until it is crushed and deformed, the machine can accurately measure the maximum pressure value and evaluate the compressive strength, stiffness and load-bearing capacity of paper and cardboard materials.

Parameters

Control mode Touch screen with test curve
Load Resolution 1/100,000
Compression Plates Up plate: 100mm*140 mm (Rectangle)


Down plate: 100mm*200mm (Rectangle)
Ring crush sample 152mm×12.7mm
Unit Kgf, Ibf, N
Load accuracy Within 0.2%
Result Output Excel or doc or PDF report
Connection RS 232
Test speed (10±3)mm/min
Statistics Mean value, max. & min values of the series
Power 1PH, 220V, 60HZ, 2A (customer specific)
Dimension of machine 480mm×460mm×550mm

Paperboard Edge Crush Ring Crush Strength Tester

Working principle of the cardboard edge compression ring compressive strength tester

The high-precision load sensor collects the maximum pressure value in real time, and the control system automatically calculates and displays the edge crush strength, ring crush strength and flat crush strength to evaluate the material’s compression resistance and load-bearing performance.

How to Use Paperboard Edge Crush & Ring Crush Strength Tester

Cut the cardboard/paper into standard-sized specimens according to standards: Edge Crush Specimen (ECT): Cut into vertical striped rectangles. Ring Crush Specimen (RCT): Cut into narrow strips and place them into a ring shape using a ring crusher.

Paperboard Edge Crush Ring Crush Strength Tester

Product Application

Paperboard Edge Crush Ring Crush Strength Tester Paperboard Edge Crush Ring Crush Strength Tester Paperboard Edge Crush Ring Crush Strength Tester

Company Profile

Paperboard Edge Crush Ring Crush Strength Tester

Paperboard Edge Crush Ring Crush Strength Tester

PACKING AND TRANSPORTATION

Paperboard Edge Crush Ring Crush Strength Tester

Paperboard Edge Crush Ring Crush Strength Tester

FAQ

1. Who are we?

Our company is located in Dongguan, China, and was established in 2021. Our products are sold to the global market.

2. How do we guarantee product quality?

We always provide pre-production samples before mass production;

We always conduct final inspection before shipment;

3. Why should you choose us over other suppliers?

Our mission is to provide one-stop sourcing and a pleasant shopping experience. We care about your lab and, more importantly, your shopping experience. You can contact us anytime; we are available 24/7.

4. What services can we provide?

Acceptable delivery terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES;

Acceptable payment currencies: USD, EUR, CAD, AUD, HKD, GBP, CNY, CHF;

Accepted payment methods: Wire transfer (T/T), Letter of Credit (L/C), Documents against Payment (D/P), Documents against Acceptance (D/A), MoneyGram, Credit Card, PayPal, Western Union, Cash, Third-party payment platforms;
