Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Packaging Carton Clamping Test Machine
Specifications
Brand Name :
Dongjun
Model Number :
DJ-205
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Load Measuring Range :
0.01N
Indicating Error of Load Accuracy :
±2%
Indicating Variation :
≤2%
Zero Return Error :
±0.2% FS
Standard Pressurizing Speed :
10–100 mm/min
Parallelism Between Upper and Lower Plates :
≤0.2 mm
Upper Plate Travel :
300mm
Machine Dimensions :
40*40*80cm
Power Supply :
AC 220V 50HZ
Description

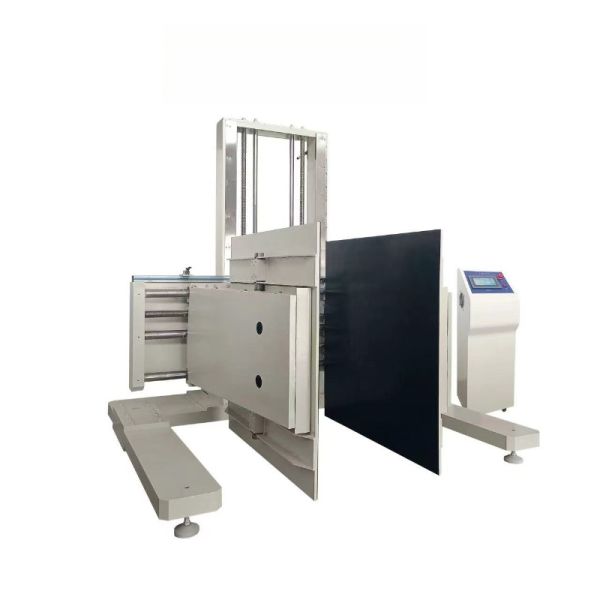

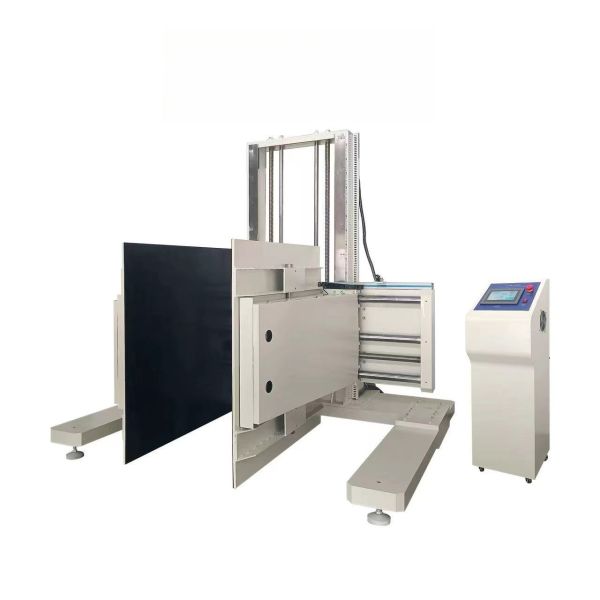

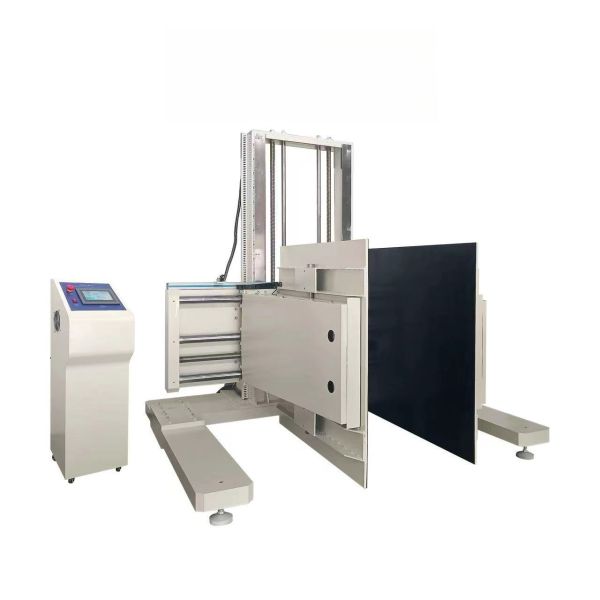

Packaging carton clamping test machine

Packaging Carton Clamping Test Machine is a professional testing device used to evaluate the clamping resistance, compressive strength and structural stability of packaging cartons, boxes and corrugated boxes. It adopts precision motor drive and intelligent control system to apply stable and controllable clamping force on both sides of the sample, simulating the extrusion and clamping force during transportation, storage and handling. The machine can set clamping speed, holding time and test pressure accurately, and automatically record pressure value, deformation and damage status in real time. With functions of automatic shutdown, data storage and safety protection, it provides reliable test data for judging the packaging protection performance and durability. It is widely used in packaging industry, food and beverage, electronics, logistics, quality inspection laboratories and research institutions to ensure cartons can effectively protect internal products under various external stresses.

Parameters

Item
Value
Load Measuring Range
500 kg
Resolution
0.01 N
Indicating Error of Load Accuracy
±2%
Indicating Variation
≤2%
Zero Return Error
±0.2% FS
Standard Pressurizing Speed
10–100 mm/min (Adjustable)
Parallelism Between Upper and Lower Plates
≤0.2 mm
Upper Plate Travel
300 mm
Machine Dimensions
40×40×80 cm
Power Supply
AC 220 V
Ambient Temperature
20 ℃ ± 10 ℃
Power Supply Details
AC 220 V ± 22 V, 50 Hz, Max. current 3 A, reliably grounded

Packaging Carton Clamping Test Machine

What is the working principle of a packaging carton clamping test machine?

The machine applies a controllable, uniform, and constant clamping force to both sides of a cardboard box using a motor-driven clamping plate, simulating the lateral compression and clamping forces experienced by the box during logistics transportation, palletizing, and handling. The equipment loads the sample according to the set clamping speed, clamping width, holding time, and maximum clamping force, collecting data such as pressure, displacement, and deformation in real time. The machine automatically stops when the cardboard box crushes, deforms beyond the limit, or reaches the preset force value. This allows for the assessment of the cardboard box's clamping strength, compressive strength, and structural stability, providing a quantitative basis for testing the packaging protection performance.

What are the application areas of packaging carton clamping testing machines?

The packaging carton clamping test machine is mainly used to test the compression resistance, clamping deformation resistance, and structural stability of cartons, boxes, corrugated cartons, and packaging boxes during lateral clamping, compression, handling, and transportation.

 Packaging Carton Clamping Test Machine

Product Application

Packaging Carton Clamping Test Machine Packaging Carton Clamping Test Machine Packaging Carton Clamping Test Machine

Packaging Carton Clamping Test Machine

PACKING AND TRANSPORTATION

Packaging Carton Clamping Test Machine

Packaging Carton Clamping Test Machine

FAQ

1. Who are we?

Our company is located in Dongguan, China, and was established in 2021. Our products are sold to the global market.

2. How do we guarantee product quality?

We always provide pre-production samples before mass production;

We always conduct final inspection before shipment;

3. Why should you choose us over other suppliers?

Our mission is to provide one-stop sourcing and a pleasant shopping experience. We care about your lab and, more importantly, your shopping experience. You can contact us anytime; we are available 24/7.

4. What services can we provide?

Acceptable delivery terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES;

Acceptable payment currencies: USD, EUR, CAD, AUD, HKD, GBP, CNY, CHF;

Accepted payment methods: Wire transfer (T/T), Letter of Credit (L/C), Documents against Payment (D/P), Documents against Acceptance (D/A), MoneyGram, Credit Card, PayPal, Western Union, Cash, Third-party payment platforms;
