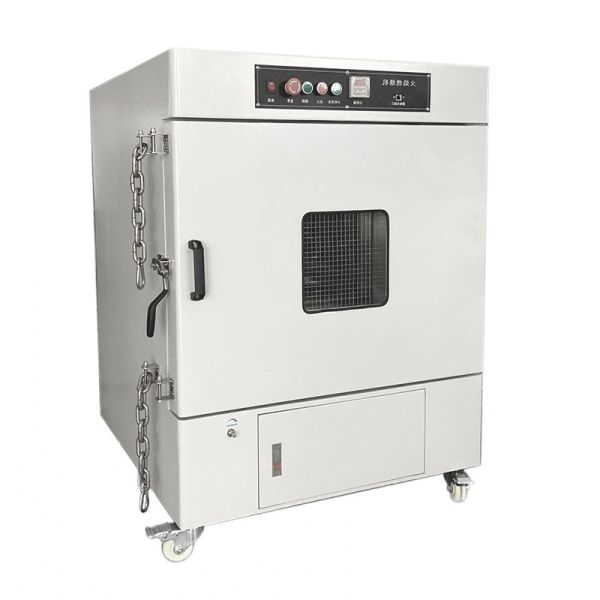

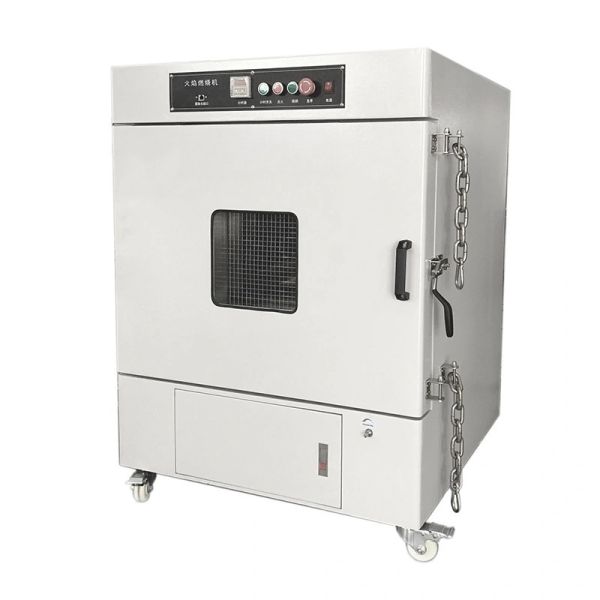

EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
EV Battery Cell Fire Tester
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-507
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Material :
SUS304 Stainless Steel,Metal Plate
Standard :
JIS Z0202-87,GB/T2423.1-2001;GB/T2423.2-2001,ISO2248
Type :
Vertical or level,Microfocus X ray machine
Input power :
AC 1 phase 220V,AC 220V ±10% / 50Hz
Humidity range :
20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH),10%~90%
Description

EV Battery Cell Fire Tester

Product use

According to the temperature required for firing the battery, there are 3 intervals: 300-600℃; 600-900℃; 900-1200℃, the overall design of the combustion equipment for the first selected temperature point in the three intervals for locked combustion.

Parameters

Temperature range

Interval A

300-600℃

Interval B

600-900℃

Interval C

900-1200℃

Precision

±20℃

External Size (W*D*H)

900*1140*1200mm

Console size (W*D*H)

600*400*1200mm

Applicable battery specifications

EV steel shell

Compatible product range (W*D*H)

400*400*200mm

Battery weight

≤20KG

Burning time

1s-60000s

Flame height

100-150mm

Equipment structure

Open front and rear

Lighter

Automatic high pressure package ignition

Air supply method

Automatic air supply to meet different oxygen levels

Insulation material

High temperature resistant fire rock wool

Wind speed

Automatic control

Alarm function

Foldable three-color lamp, abnormal operation alarm

Protective function

Limit protection, foolproof function, safety protection

Equipment material

Aluminum profile + cold rolled steel plate, painted, color is standard warm gray 1C (color can be customized)

Combustion gas

gas

Ground bearing

Requires solid ground, bearing 1T/m3

Power supply

AC220V


EV Battery Cell Fire Tester

Working principle of EV Battery Cell Fire Tester

The EV Battery Cell Fire Tester works by simulating real fire conditions to test the safety and thermal runaway performance of lithium battery cells.

How to choose the right EV Battery Cell Fire Tester?
The core logic for selecting an EV Battery Cell Fire Tester is: first, set standards; then, consider protection; and finally, match accuracy with automation. Mass production companies prioritize models that offer compliance, high protection, and automation; R&D institutions focus on high accuracy, scalability, and in-depth data analysis capabilities. Based on their specific needs, they prioritize models that provide end-to-end services to ensure compliant, safe, and efficient testing.

EV Battery Cell Fire Tester

Company Profile

EV Battery Cell Fire Tester

PACKING AND TRANSPORTATION

EV Battery Cell Fire Tester

EV Battery Cell Fire Tester

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
