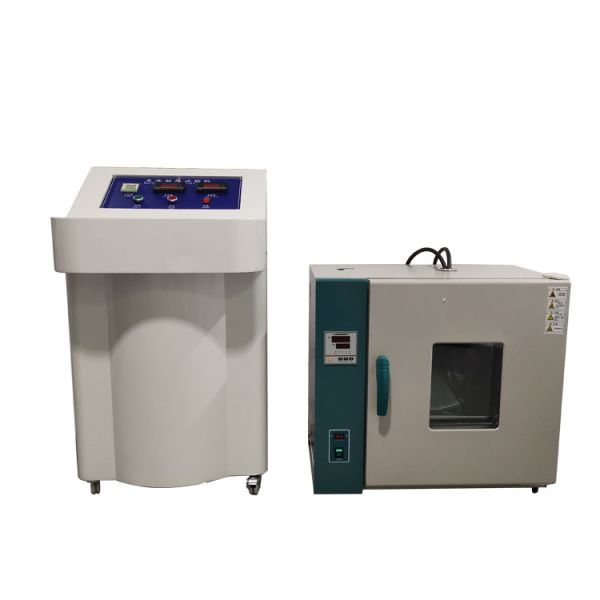

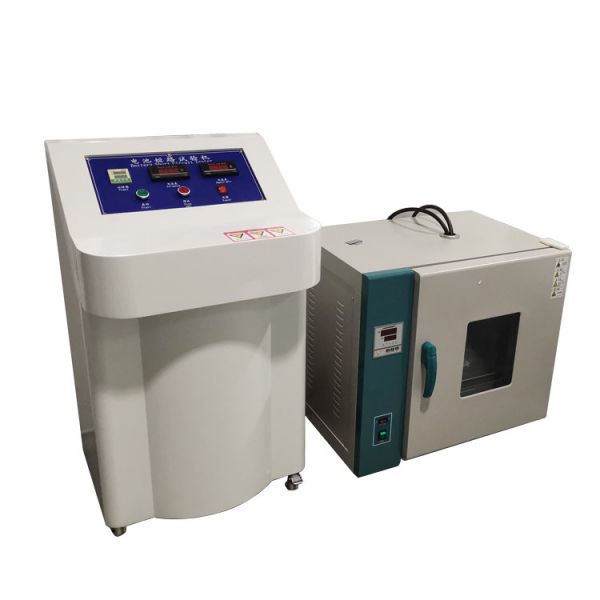

Battery Short Circuit Tester
Battery Short Circuit Tester
Battery Short Circuit Tester
Battery Short Circuit Tester
Battery Short Circuit Tester
Battery Short Circuit Tester
Battery Short Circuit Tester
Battery Short Circuit Tester
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-506
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Fence Height :
600 mm
Flame Height :
(10~75)mm±2mm
Warranty :
12 months
Internal Resistance :
80±20 mΩ
Frequency Range :
DG～3500Hz
Displayer :
Touch screen
Description

Battery Short Circuit Tester

Product use

Battery Short Circuit Tester is a professional safety testing device designed to simulate internal or external short-circuit scenarios that batteries may encounter in production, transportation and use. It uses high-conductivity electrodes to connect the battery’s positive and negative terminals, triggering a short circuit, and real-time monitors parameters such as short-circuit current, voltage drop and surface temperature. Widely used in lithium-ion, power, consumer electronics and energy storage batteries, it evaluates battery safety by observing whether there are hazards like fire, explosion or leakage. It provides reliable data support for battery R&D, mass production quality inspection and compliance certification, ensuring product safety in extreme short-circuit conditions.

Parameters

External Material

Paint treatment of cold-rolled steel sheet

Observe Window

250*250mm

Two layers of tempered glass

Transparent window with stainless steel mesh

Exhaust port

Diameter 100mm

Pressure relief port

200*200mm

Door

Single door design, the door is equipped with a safety limit switch

The side is equipped with an explosion-proof chain

Only close the door to operate the device to ensure the safety of personnel

Testing Hole

There are two testing hole diameter 50mm, for cable connect.

Control Mode

Key Type

Temperature collection range

RT-1000℃

Temperature Acquisition Channel

Channel 1

Temperature Display Accuracy

±0.5℃

Voltage collection range

0-100V

Voltage Acquisition Channel

Channel 1

Voltage Display Accuracy

±0.5%

Maximum Short-circuit Current

1000A

Current Acquisition Channel

Channel 1

Current Display Accuracy

±0.5%

Internal Resistance of

Device Loop

80±20mΩ

Voltage

Single Phase 220V

Power

200W

Machine Weight

85kg


Battery Short Circuit Tester

Battery Short Circuit Tester principle

principle of Battery Short Circuit Tester is to simulate internal or external short-circuit scenarios of batteries. It uses high-conductivity electrodes to connect the battery’s positive and negative terminals, triggering a short circuit. By real-time monitoring short-circuit current, voltage drop and surface temperature, it evaluates battery safety through hazard reactions, providing a basis for safety detection and certification.
Application industries of battery needle puncture testing machine
application industries of Battery Short Circuit Tester cover the entire battery industry chain. It is widely used in new energy vehicle power battery, consumer electronics battery and energy storage battery fields. It also serves third-party testing institutions and scientific research sectors, providing data support for product R&D, quality control and compliance certification to ensure battery safety.

Battery Short Circuit Tester

Company Profile

Battery Short Circuit Tester

PACKING AND TRANSPORTATION

Battery Short Circuit Tester

Battery Short Circuit Tester

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
