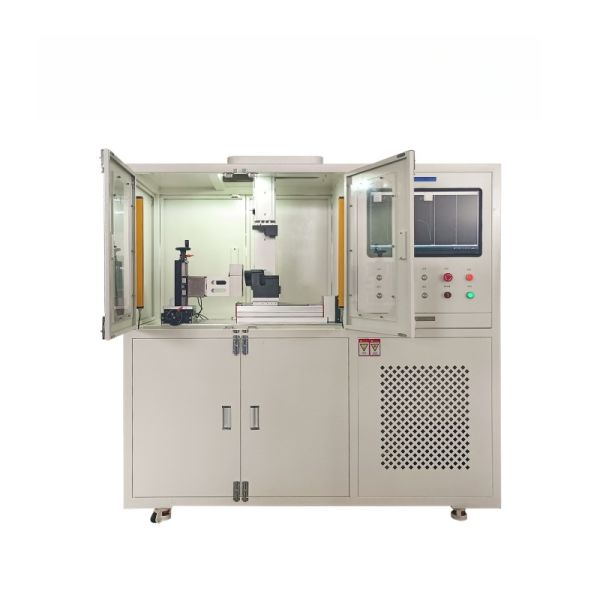

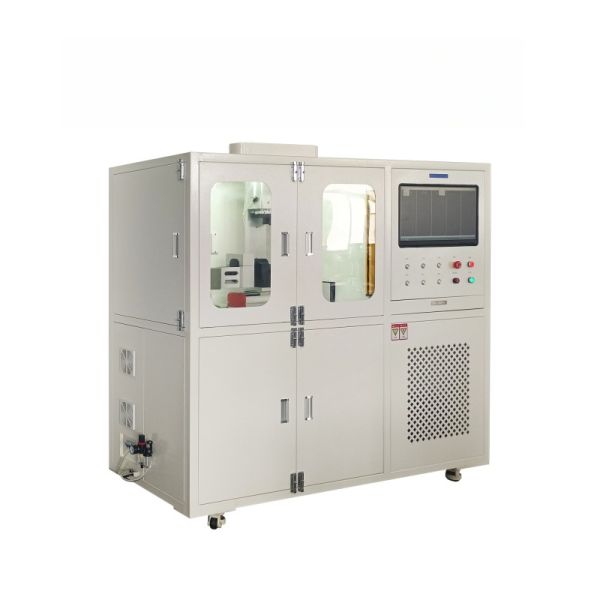

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-419
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Power :
AC 220V 50hz
Service :
OEM Service
Friction Velocity :
24rpm
Flame Time Setting :
0~999S
Time Control :
Any time can be set (seconds).
Wire Diameter :
30~150mm
Description

Horizontal Charging Gun Insertion and Removal Pull-out Force Testing Equipment

Product use

This equipment is specially designed to test the insertion force, removal force, connection strength and durability of electric vehicle charging guns, sockets and connectors. Adopting a horizontal structure, it can stably simulate the actual plugging and unplugging process during daily use, ensuring accurate and reliable test data.
Equipped with high-precision force sensors and digital display systems, it can real-time monitor and record plug-in force, pull-out force, cycle times and test speed. The automatic control system supports preset test cycles, automatic stop and data saving functions. The fixture is adjustable to fit different types of charging guns and connector sizes.
With stable performance, high testing accuracy and easy operation, it is widely used in charging equipment manufacturers, quality inspection departments and laboratories to verify product reliability, safety and service life.

Parameters

Test Force Range 0–5000 N, high precision sensor
Test Speed 1–500 mm/min adjustable
Test Stroke 0–200 mm adjustable
Counter Range 0–9999999 times, digital display
Force Accuracy ±0.5% FS
Fixture Type Adjustable for EV charging guns & sockets
Driving Mode Servo motor drive

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment principle

This equipment adopts a horizontal structure to simulate the actual plugging and unplugging process of EV charging guns. The charging gun and socket are fixed on adjustable fixtures. Driven by a precision motor, it performs reciprocating insertion and extraction movements at a set speed and stroke. A high-precision force sensor collects real-time insertion force and pull-out force data, which is displayed and recorded by the control system. It automatically counts test cycles and stops when preset times or abnormal force is detected, used to evaluate connection strength, durability and matching performance of charging connectors.

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment

It is widely applied in EV charging equipment manufacturers, automotive parts factories, quality inspection centers, third-party testing laboratories and research and development institutions. The equipment can simulate long-term plugging and unplugging behavior in actual usage scenarios, evaluate product performance, stability and service life, and provide reliable test data for product design optimization, quality control and certification.

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment

Company Profile

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment

PACKING AND TRANSPORTATION

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment

Horizontal Charging Gun Insertion And Removal Pull-out Force Testing Equipment

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
