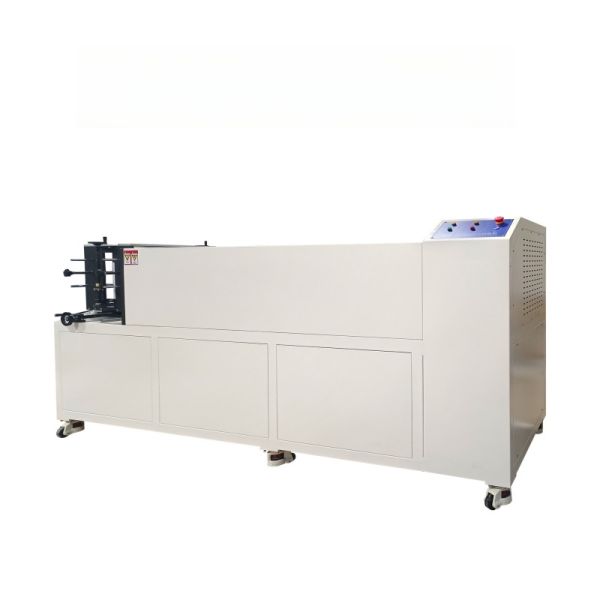

Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Fiber Optic Box Horizontal Tensile Testing Machine
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-414
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Load Capacity :
2kN～10kN (customizable)
Load Accuracy :
±0.5% F.S.
Displacement Resolution :
0.001 mm
Test Speed :
0.001–500 mm/min
Effective Test Stroke :
1000 mm
Control System :
PC closed-loop servo control
Description

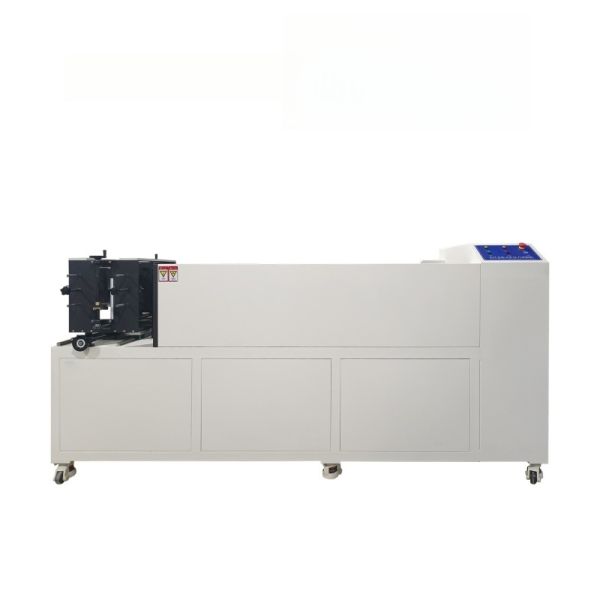

Fiber Optic Box Horizontal Tensile Testing Machine

Product use

This is a horizontally arranged specialized mechanical testing device, primarily used for tensile performance testing of fiber optic distribution boxes, fiber optic splice closures, and related components. It evaluates their structural stability, sealing reliability, and fiber optic transmission attenuation changes under installation/maintenance tension, fully meeting the stringent standards of the communications industry.

Core Applications and Test Items:
* Static Tensile/Constant Force Holding: Determines deformation and optical attenuation fluctuations under rated tension; assesses creep resistance and relaxation resistance after long-term stress.
* Ultimate Tensile/Breakthrough Test: Records breaking force and maximum elongation to verify structural strength.
* Installation Condition Simulation: Simulates construction traction forces in overhead, pipeline, and direct burial scenarios.
* Interface/Seal Testing: Tests the pull-out resistance and leakage resistance of fiber optic connectors and sealing components.

Parameters

Parameters Common Specifications
Load Capacity 2kN/5kN/10kN/50kN/100kN (Customizable)
Load Accuracy ±0.5% F.S.
Tension Stroke / Space 1000~2000mm (Customizable to several meters)
Loading Rate 0.001~600 mm/min (High-speed models up to 2m/min+)
Displacement Resolution 0.001 mm
Synchronous Testing Real-time monitoring of optical power/attenuation (Optional)

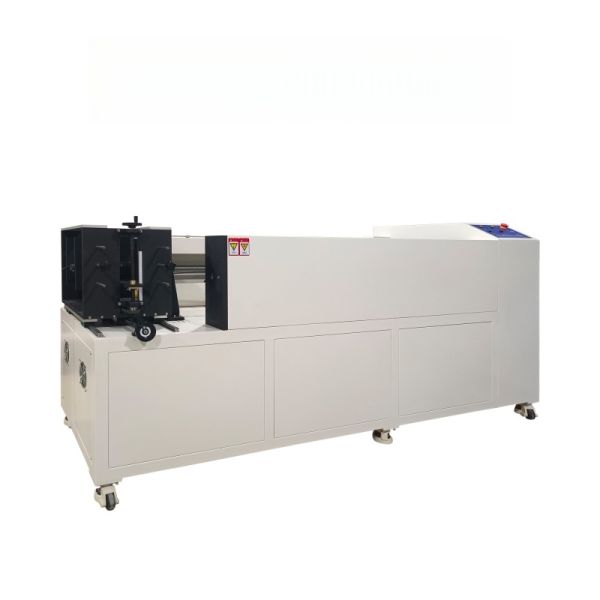

Fiber Optic Box Horizontal Tensile Testing Machine

Fiber Optic Box Horizontal Tensile Testing Machine principle

This machine adopts a horizontal structure and servo drive system to apply stable tension on fiber optic boxes and cables. It tests tensile strength, deformation, and sealing performance per IEC 60794-1-21, YD/T 2150 and other standards. Load ranges are 2–10kN for fiber boxes and 50–100kN for optical cables. It supports real-time optical attenuation monitoring, with sufficient stroke for sample elongation. Equipped with overload, limit, and emergency stop protection, it meets ISO 7500-1 for traceable calibration, ensuring accurate and reliable test data.

Accuracy of horizontal tensile testing of fiber optic box.
This Fiber Optic Box Horizontal Tensile Testing Machine features high-precision load cells and closed-loop servo control for excellent testing accuracy. The load measurement accuracy is within ±0.5% of the indicated value, and the displacement resolution reaches 0.001 mm. It ensures stable and uniform loading with minimal fluctuation. The system automatically collects data in real time, providing reliable and repeatable test results in compliance with ISO 7500-1 and industry standards.

Fiber Optic Box Horizontal Tensile Testing Machine

Company Profile

Fiber Optic Box Horizontal Tensile Testing Machine

PACKING AND TRANSPORTATION

Fiber Optic Box Horizontal Tensile Testing Machine

Fiber Optic Box Horizontal Tensile Testing Machine

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
