Specifications
Brand Name :
UNIMETRO
Model Number :
SE2000
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
15set per month
Packaging Details :
wood case
Price :
Discussible
Sensor :
Inductive Profile Sensor
Sorftware :
CMS contour measuring software
Applicant :
Tool,Engine filtration system,Bush,Injection mold
Description

Contour measuring machine profile measuring surface profile measurement

Product Description

Roughness profile measurement analysis basis

The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.
◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining processes
◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process

SE2000 Series

Features: The best balance of performance and cost, with the best price/performance ratio.
★ Wide range of inductive sensors
★ Small-range high-precision contour measurement, micro-profile measurement

Measuring Case

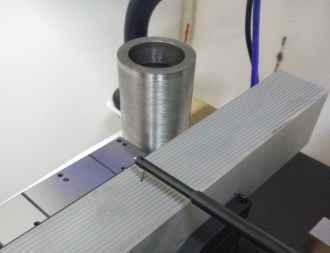

Surface Profile Contour Measuring Machine With Inductive Profile Sensor Surface Profile Contour Measuring Machine With Inductive Profile Sensor

Tool Engine filtration system

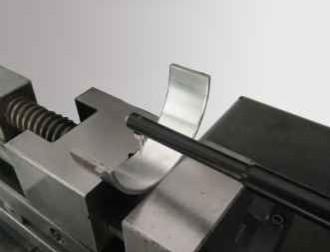

Surface Profile Contour Measuring Machine With Inductive Profile Sensor Surface Profile Contour Measuring Machine With Inductive Profile Sensor

Bush Injection mold

Recommended Size

Specification number

SE2022G-tbo
Measuring range

X-axis

120mm
Z-axis

420mm
Z1-axis

±0.5mm~±7.5mm/262144:1
Accuracy

Z1 Linear precision¹

0.07%f.s.
Pt

cp-mc
Angle

±1´
straightness

0.3µm/100mm
Drive speed

X-axis

0.05~20mm/s
Z-axis

0.2~20mm/s
Measurement function

Profile

Line elements of various types of workpiece surfaces, point features, distance between points and points, distance between lines and lines, position of each element including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, can be performed Straightness analysis, convexity analysis, profile analysis.

System Components

Sensor: E series inductive contour sensor

Surface Profile Contour Measuring Machine With Inductive Profile Sensor

Resolution ratio:65536:1/262144:1
Range:±0.5mm~±5mm/±0.5mm~±7.5mm
Linear precision:0.15%/0.07%
Measuring force:0.7mg
Feature description:Flexible accuracy/range ratio, with unparalleled advantages for digital sensors when measuring small contours.

Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)

Surface Profile Contour Measuring Machine With Inductive Profile Sensor

● Rail travel:100-150mm/180~220mm
● Number interval: 0.05~2µm/0.05~5µm
● Contour straightness:0.3µm/100mm
● Roughness residual value:≤0.005µm
● Maximum moving speed:20mm/s
● Minimum measurement speed:0.1mm/s
● Feature description:Low noise actuator can meet the requirement of profile measurement accuracy of standard parts, and the measurement requirement of Ra greater than 0.025 micron can be met with roughness sensor.

Column member: Cnf High Speed Column / Cnfl High Speed Long Column

(Can choose according to your needs)

● Range:320~420mm / 520~620mm
● Maximum moving speed:20mm/s
● Minimum moving speed:0.2mm/s
● Positioning accuracy:0.005mm
● Feature description:High-speed column, frame column, long-term use of non-deformable, precision and fast transmission structure, fast moving speed, wide speed range, high positioning accuracy

Platform components: Mpe Integral Ergonomic Machine Table

Surface Profile Contour Measuring Machine With Inductive Profile Sensor

● Material:marble
● Specification:500*800,500*1000
● Feature description:Integral design, compact structure, convenient maintenance, saving use space, ergonomics, reduce operator fatigue strength.

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
